Engine Oil Cooler Adapter Installation (LGX): Notes
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

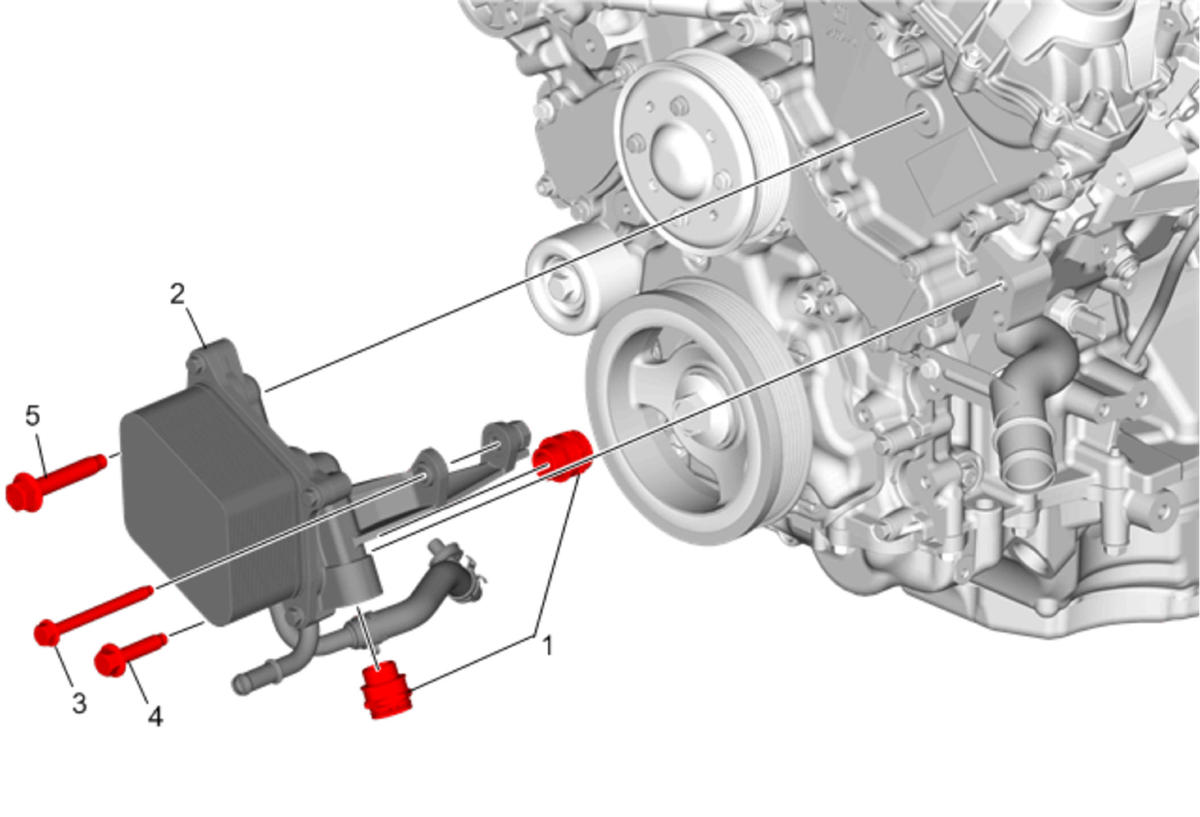

Engine Oil Cooler Adapter Installation
| Callout | Component Name |
|---|---|
| 1 | Engine Oil Cooler Fitting (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 2 | Engine Oil Cooler Adapter Assembly |
| 3 | Engine Oil Cooler Adapter Bolt - M8 x 90.8 Tighten 22 N.m (16 lb ft) |
| 4 | Engine Oil Cooler Adapter Bolt - M10 x 45.75
NOTE:
Make Sure all axi-rads are present for proper alignment of the oil cooler to the oil pan. Tighten 58 N.m (43 lb ft) |
| 5 | Engine Oil Cooler Adapter Bolt - M12 x 65.90
NOTE:
Make Sure all axi-rads are present for proper alignment of the oil cooler to the oil pan. Tighten 100 N.m (74 lb ft) |
