Engine Coolant Thermostat Housing Installation (LF4)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

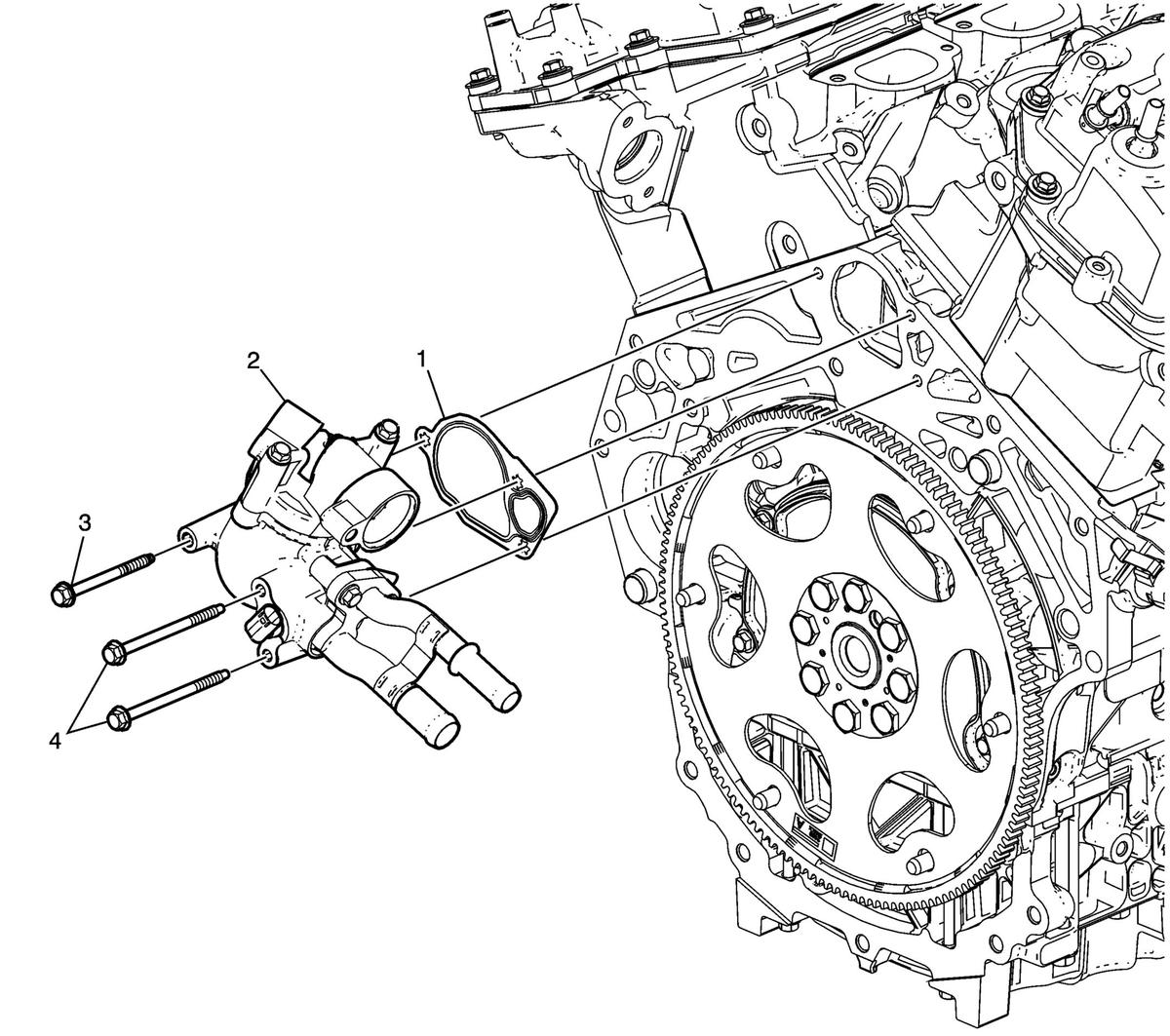

| Callout | Component Name |
|---|---|
| 1 | Engine Coolant Thermostat Housing Gasket
NOTE:
Install a NEW gasket. It is not reusable. |
| 2 | Engine Coolant Thermostat Housing Assembly |
| 3 | Engine Coolant Thermostat Housing Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 4 | Engine Coolant Thermostat Housing Bolts - Long Tighten 10 N.m (89 lb in) |
