Drive Belt Tensioner Removal (LF4)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

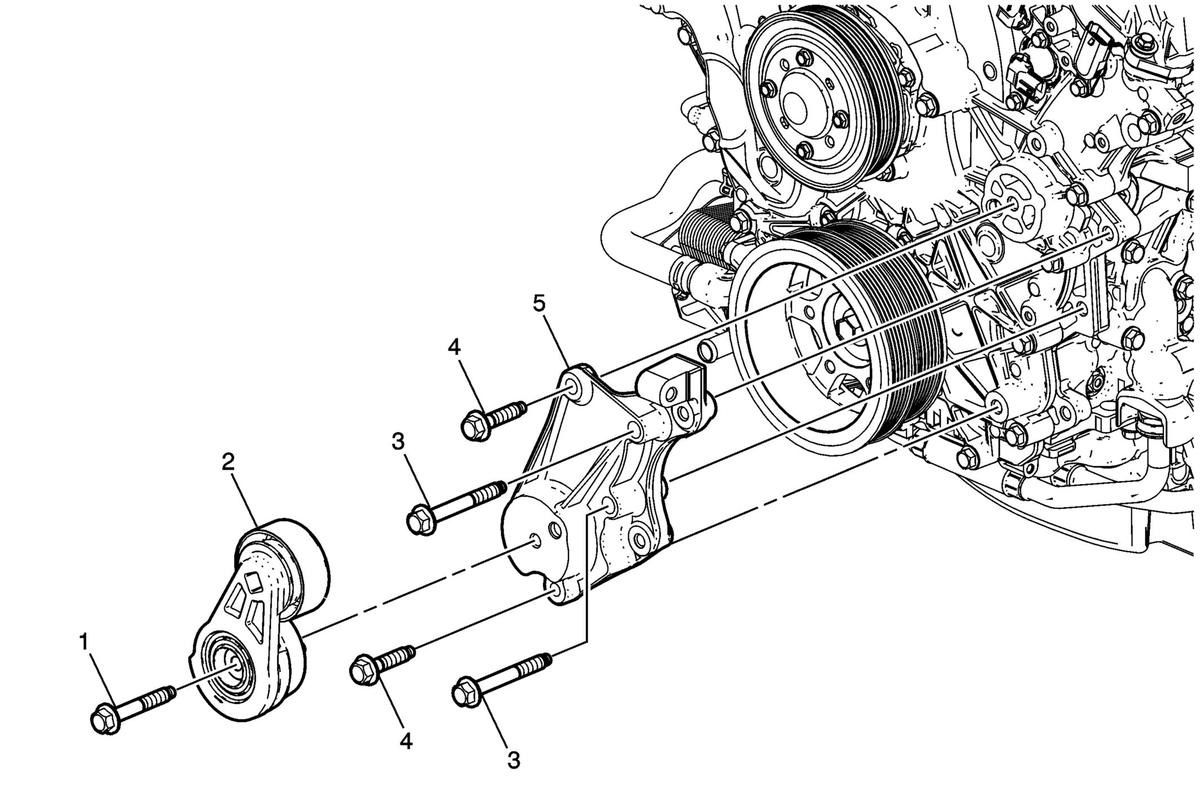

| Callout |
Component Name |
| 1 |
Drive Belt Tensioner Bolt |
| 2 |
Drive Belt Tensioner |
| 3 |
A/C Compressor Front Bracket - (Qty: 2) |
| 4 |
A/C Compressor Front Bracket - (Qty: 2) |
| 5 |
A/C Compressor Front Bracket |
