Crankshaft Rear Oil Seal and Housing Removal (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

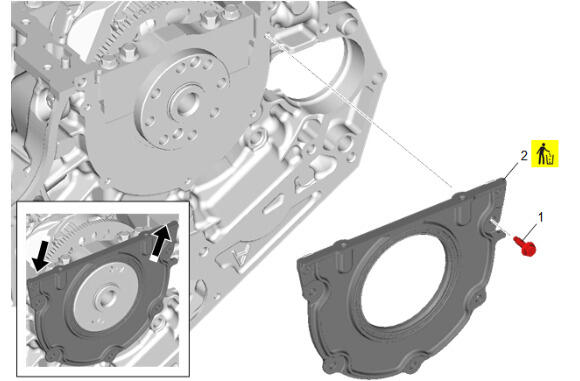

Fig 1: Crankshaft Rear Oil Seal And Housing (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Crankshaft Rear Oil Seal Housing Bolt
2	Crankshaft Rear Oil Seal Housing Procedure Ensure proper use of room temperature vulcanizing (RTV) sealant. Refer to Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant Use the pry points located at the edge of the crankshaft rear oil seal housing to separate the RTV sealant. Remove and DISCARD the crankshaft rear oil seal housing.

Callout

Component Name

Crankshaft Rear Oil Seal Housing Bolt

Crankshaft Rear Oil Seal Housing

Procedure

Ensure proper use of room temperature vulcanizing (RTV) sealant. Refer to Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant
Use the pry points located at the edge of the crankshaft rear oil seal housing to separate the RTV sealant.
Remove and DISCARD the crankshaft rear oil seal housing.
