Camshaft Cover Removal - Left Side (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

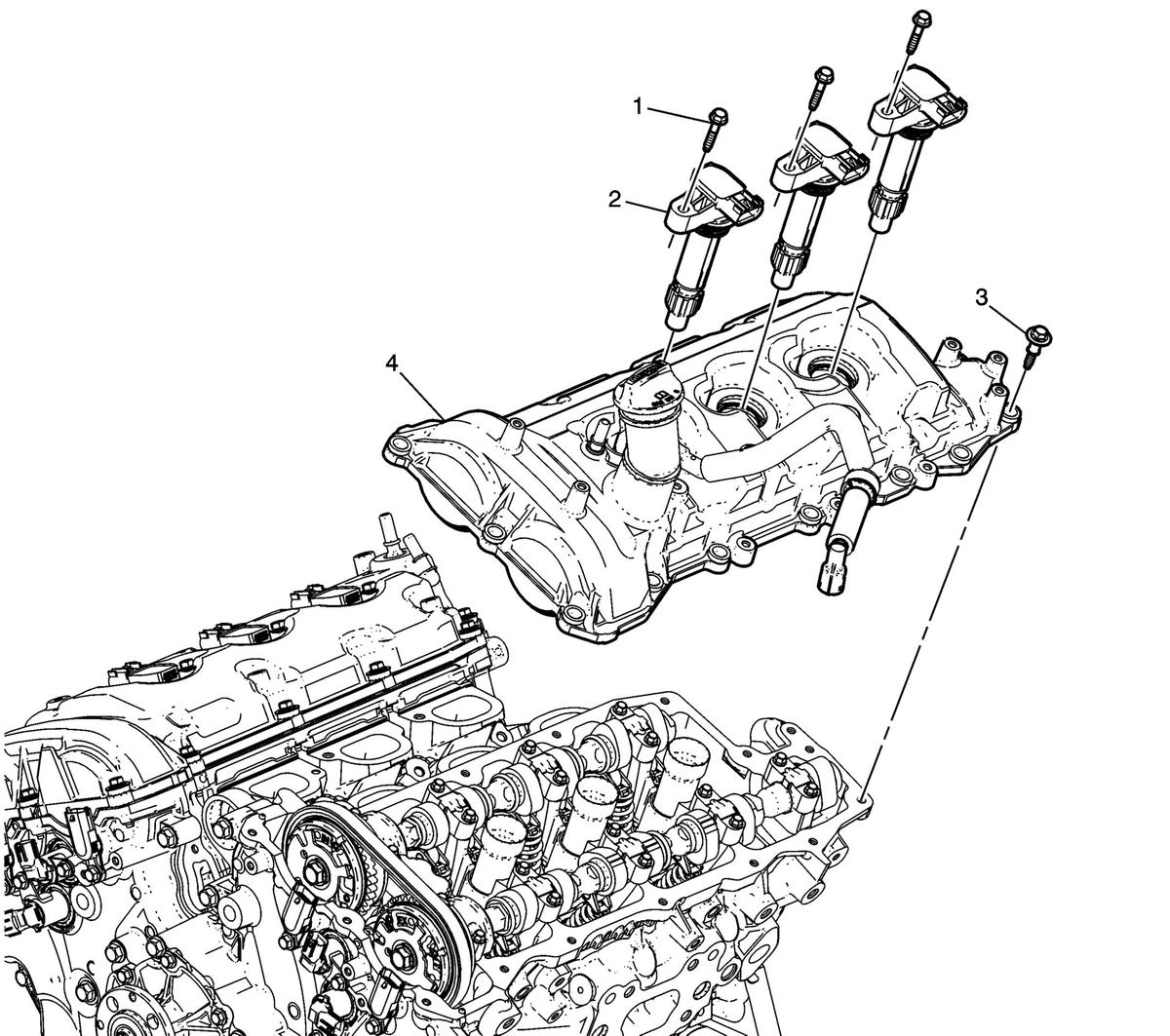

Fig 1: Camshaft Cover - Left Side (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Ignition Coil Bolts
2	Ignition Coils
3	Left Camshaft Cover Bolts
4	Left camshaft Cover
