Right Camshaft Cover
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

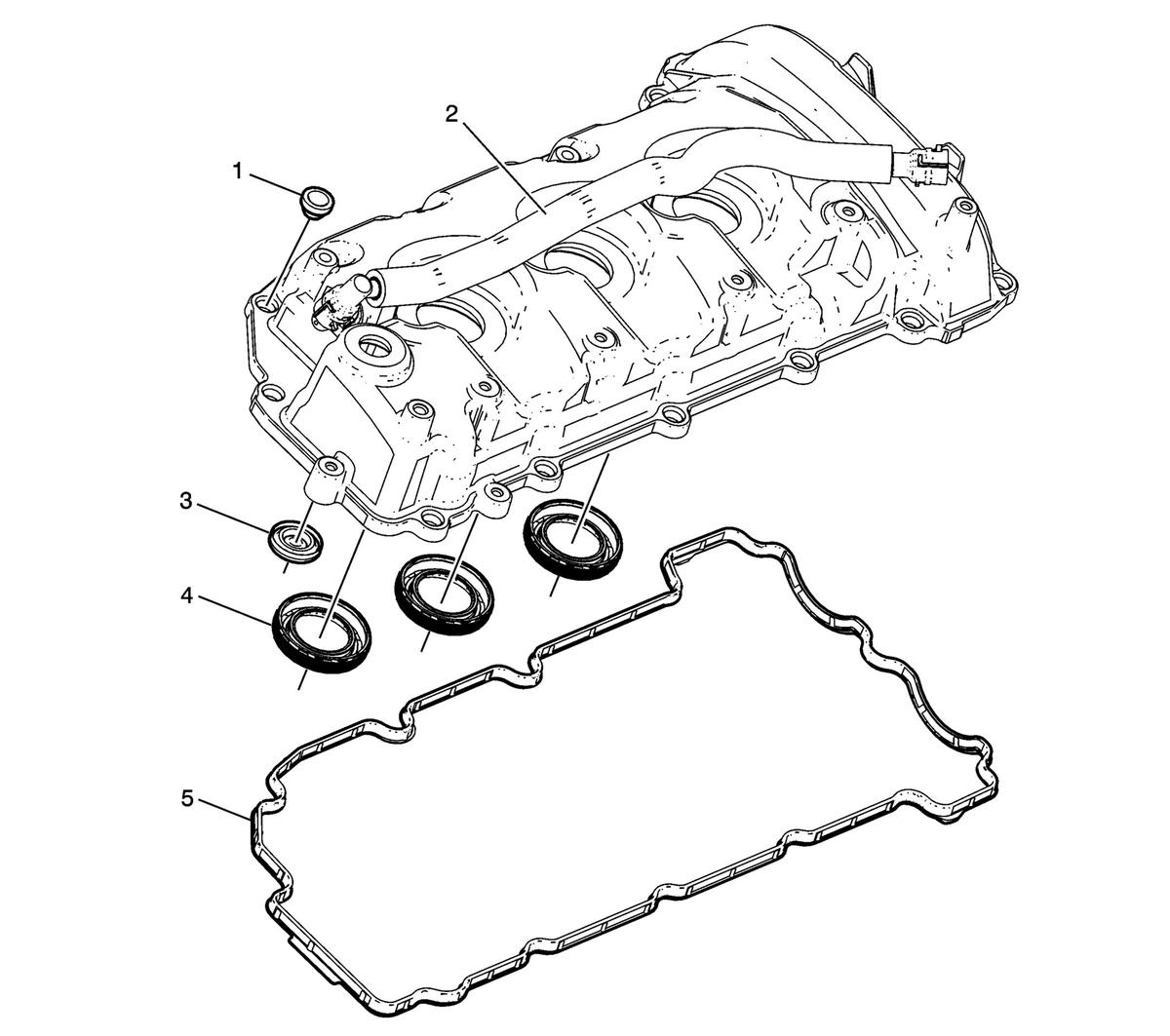

Right Camshaft Cover
| Callout | Component Name |
|---|---|
| 1 | Right Camshaft Cover Bolt Grommets |
| 2 | PCV Fitting Hose
NOTE:
This is a tamperproof hose and fitting. |
| 3 | Vacuum Pump Seal
NOTE:
Do not reuse the Vacuum Pump Seal. |
| 4 | Right Spark Plug Shield Tube Seals
NOTE:
Do not reuse the spark plug shield tube seals. |
| 5 | Right Camshaft Cover Gasket
NOTE:
Do not reuse the camshaft cover gasket. |
