Right Camshaft Cover

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

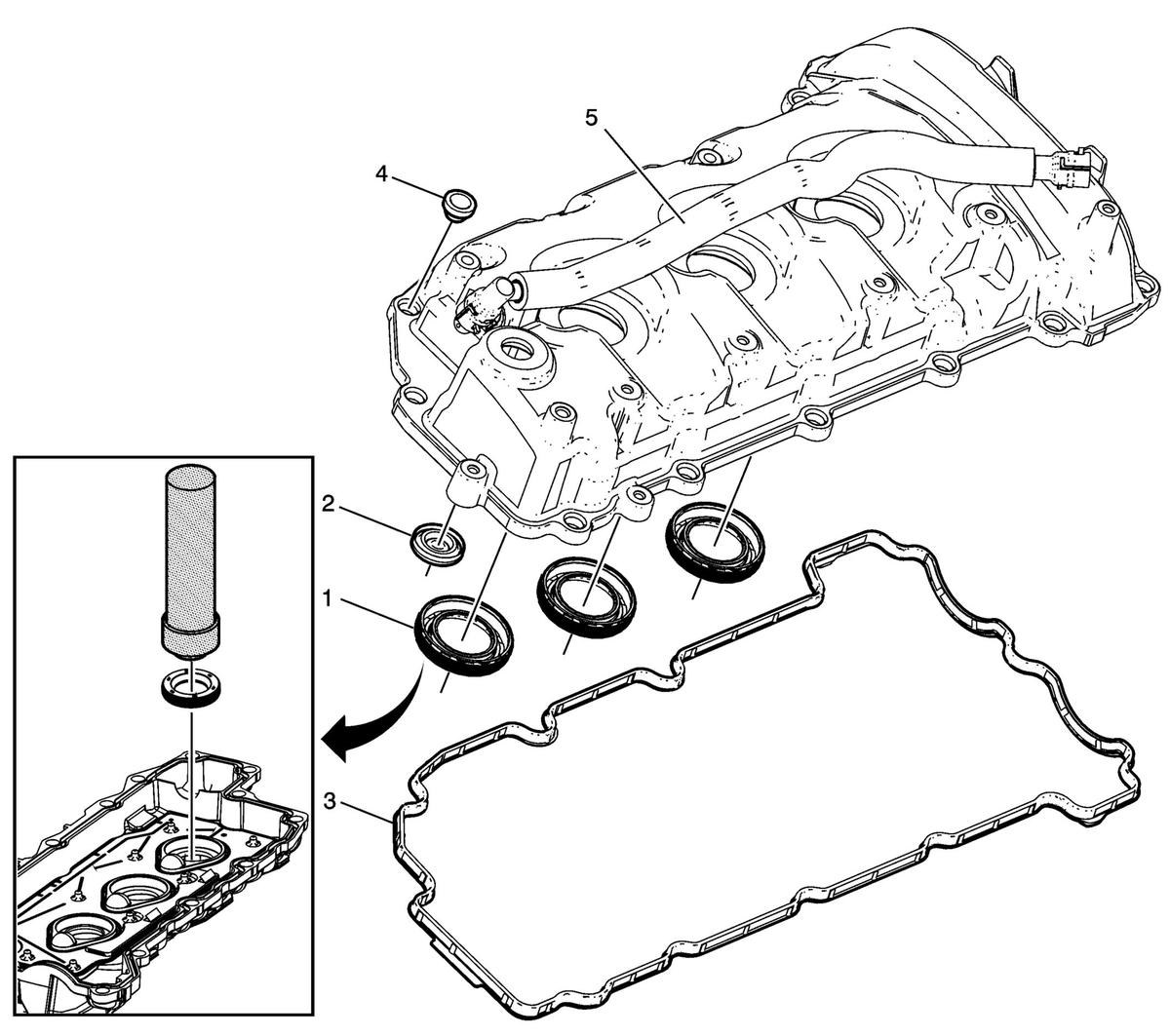

Fig 1: Right Camshaft Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Right Spark Plug Shield Tube Seals NOTE: Install NEW spark plug shield tube seals. Special Tools DT-5590 Bearing and Seal Driver J-25254-A Oil Seal Installer
2	Vacuum Pump Seal NOTE: Install NEW vacuum pump seal.
3	Right Camshaft Cover Gasket NOTE: Install NEW camshaft cover gasket.
4	Right Camshaft Cover Bolt Grommets NOTE: Install NEW Grommets.
5	PCV Fitting Hose NOTE: This is a tamperproof hose and fitting.
