Turbocharger Inlet Absolute Pressure Sensor Replacement (LF4)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

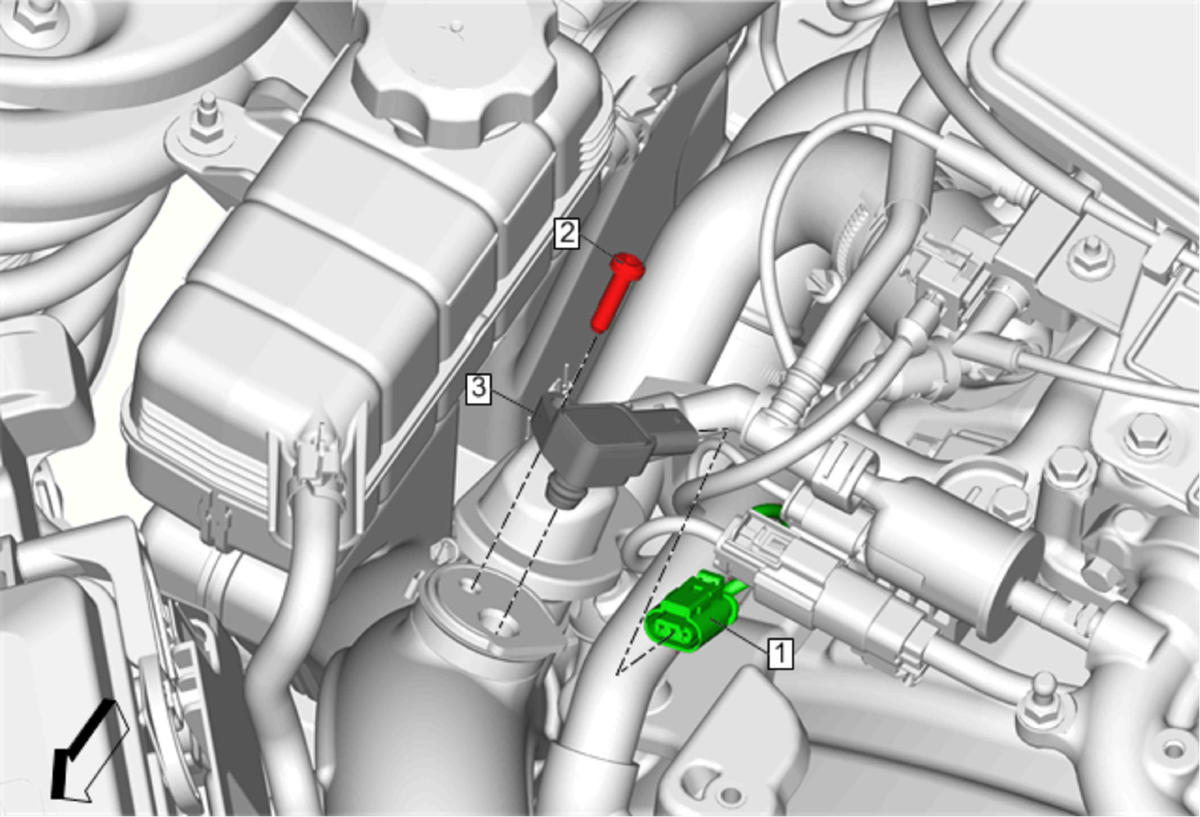

| Callout | Component Name |
|---|---|
| 1 | Turbocharger Inlet Absolute Pressure Sensor Electrical Connector |
| 2 | Turbocharger Inlet Absolute Pressure Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 5 N.m (44 lb in) |
| 3 | Turbocharger Inlet Absolute Pressure Sensor |
