Turbocharger Air Inlet Adapter Replacement - Bank 2
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

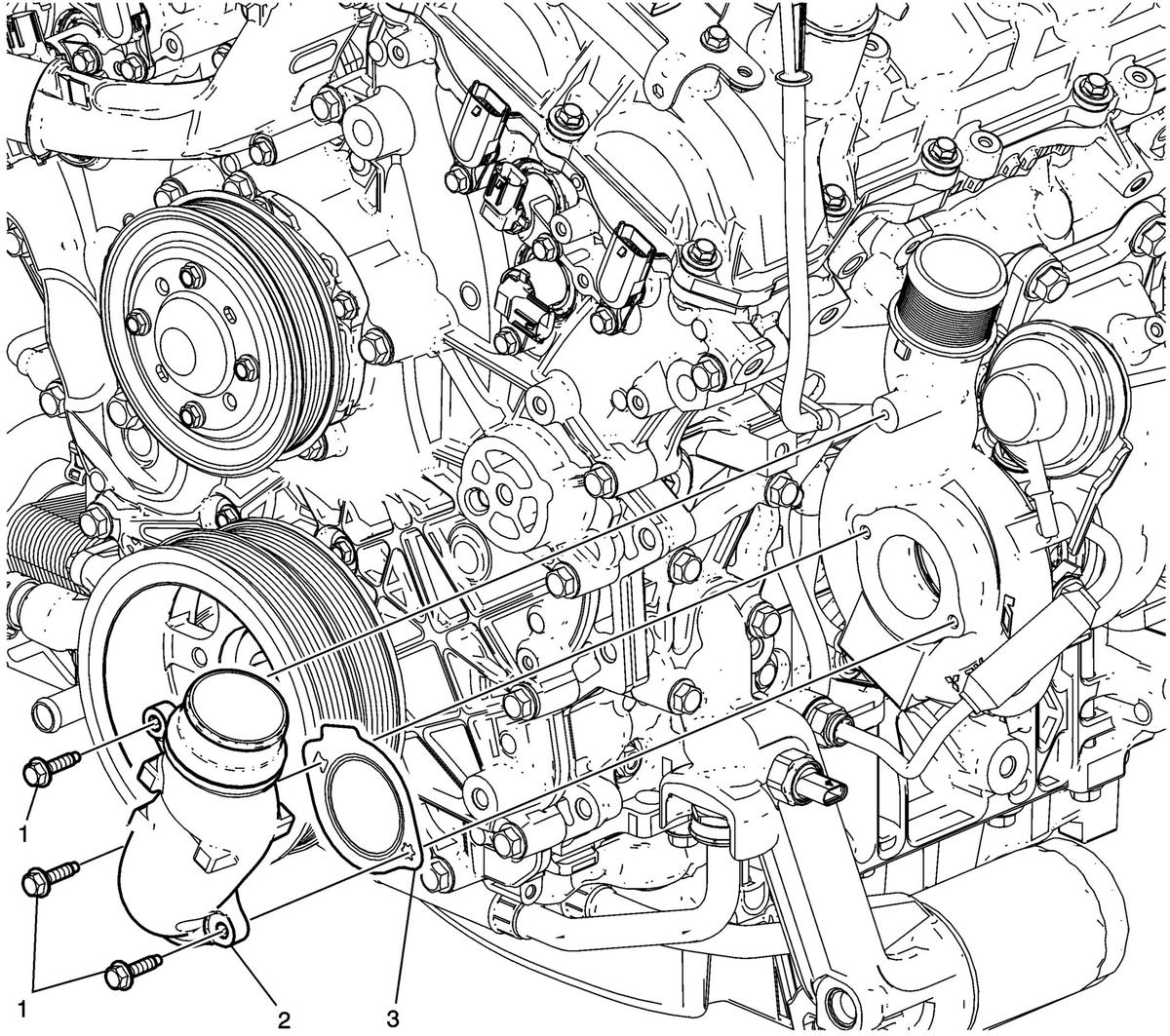

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement (LF4) . |
|
| 1 | Turbocharger Air Inlet Adapter Fasteners (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Turbocharger Air Inlet Adapter |
| 3 | Turbocharger Air Inlet Adapter Procedure Install a NEW turbocharger air inlet adapter seal. |
