Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (LGX)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

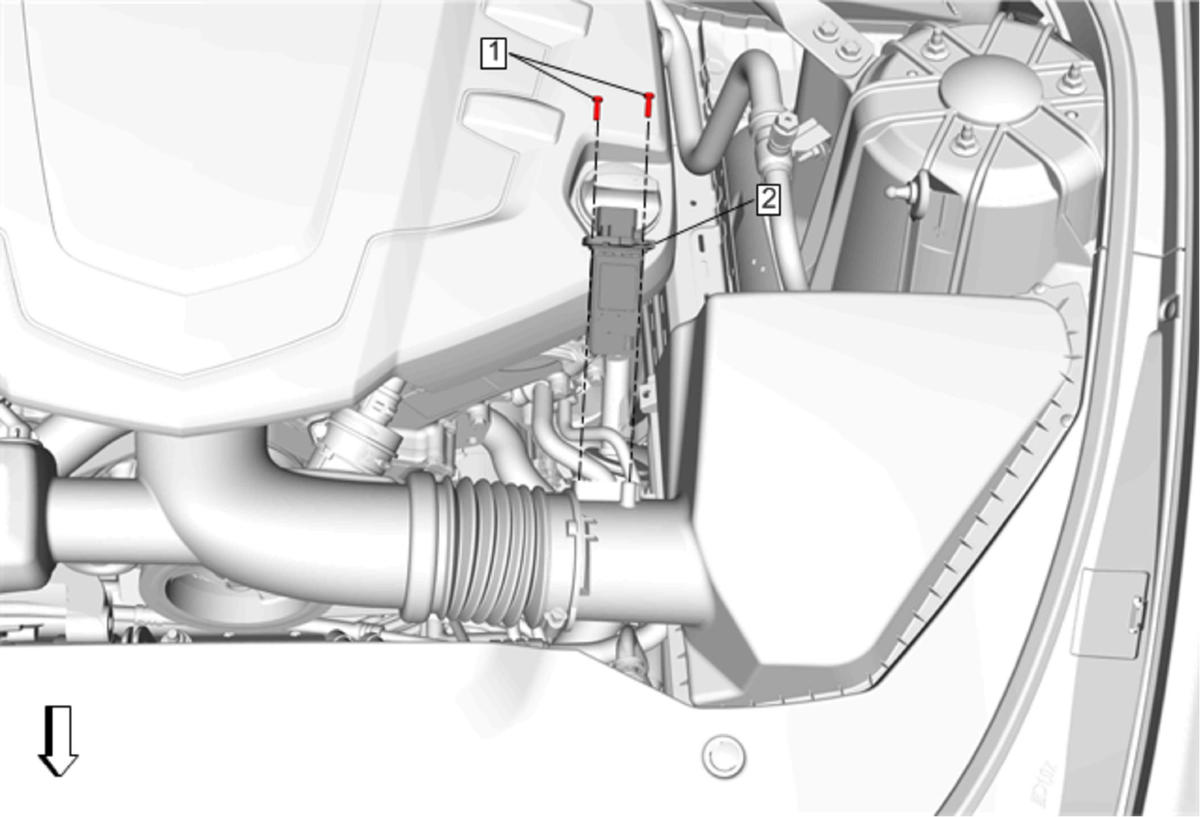

| Callout | Component Name |
|---|---|
| 1 | Mass Airflow Sensor Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Mass Airflow Sensor Procedure Disconnect the electrical connector. |
