Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (Front LF4)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

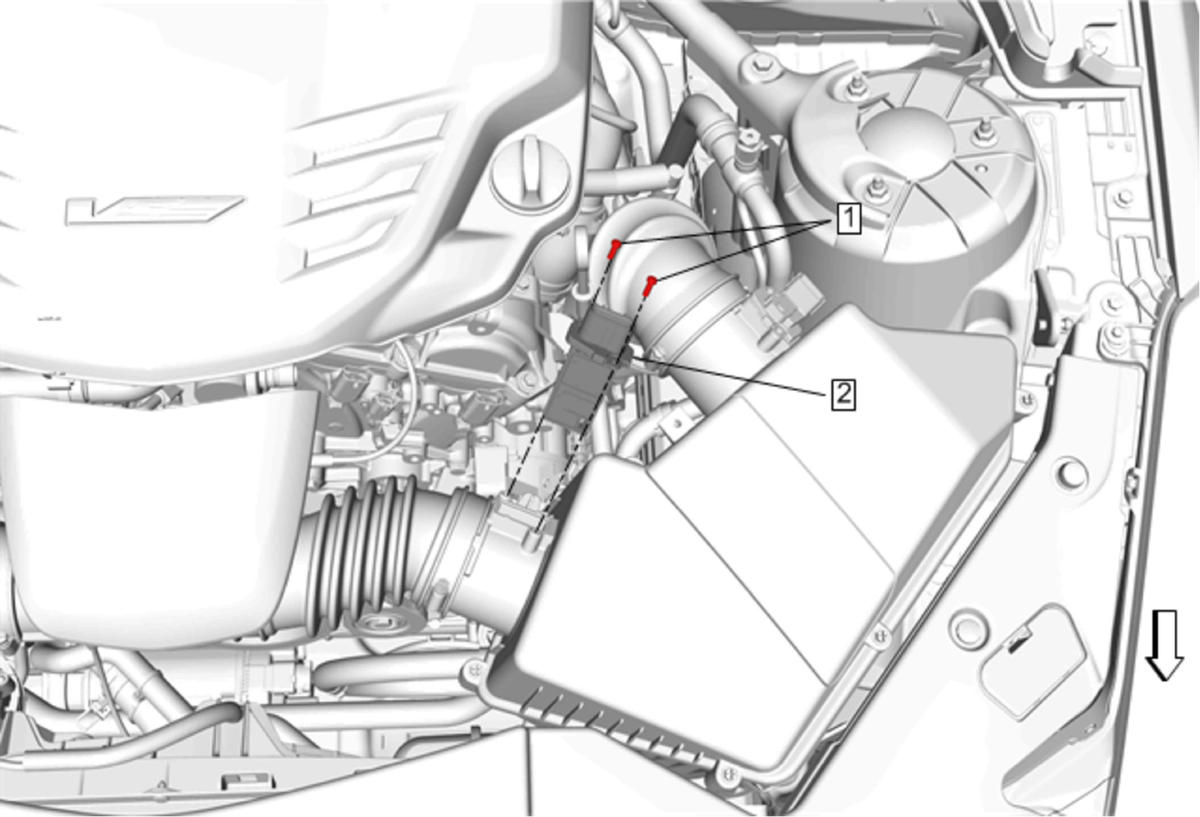

| Callout | Component Name |
|---|---|
| 1 | Mass Airflow Sensor Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Mass Airflow Sensor Procedure Disconnect the electrical connector. |
