Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the charge air cooler inlet pipe (left). Refer to Charge Air Cooler Inlet Pipe Replacement - Left Side .

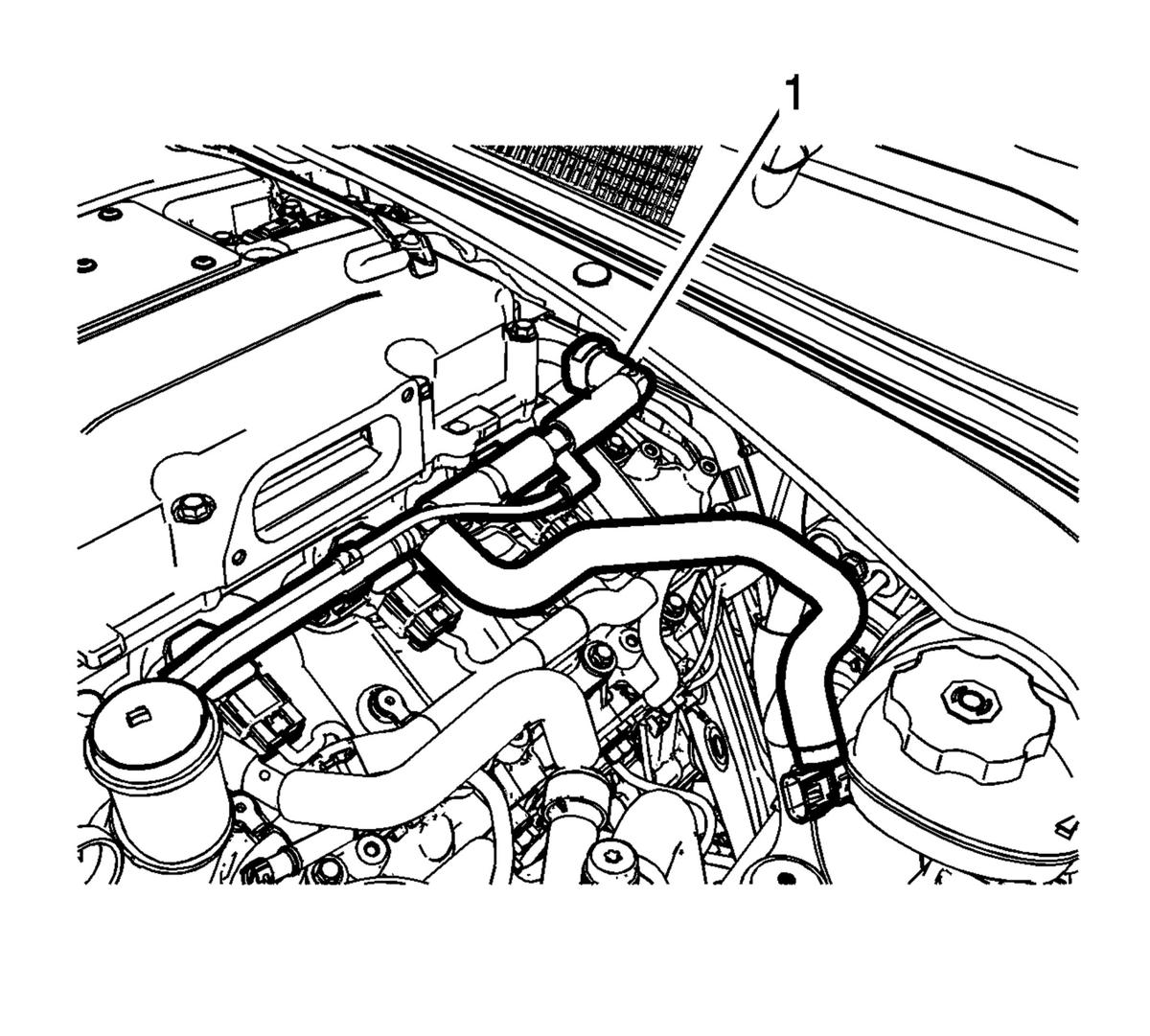

Fig 1: Vacuum Hose

Courtesy of GENERAL MOTORS COMPANY

Disconnect and reposition the vacuum hose (1). Refer to Plastic Collar Quick Connect Fitting Service .

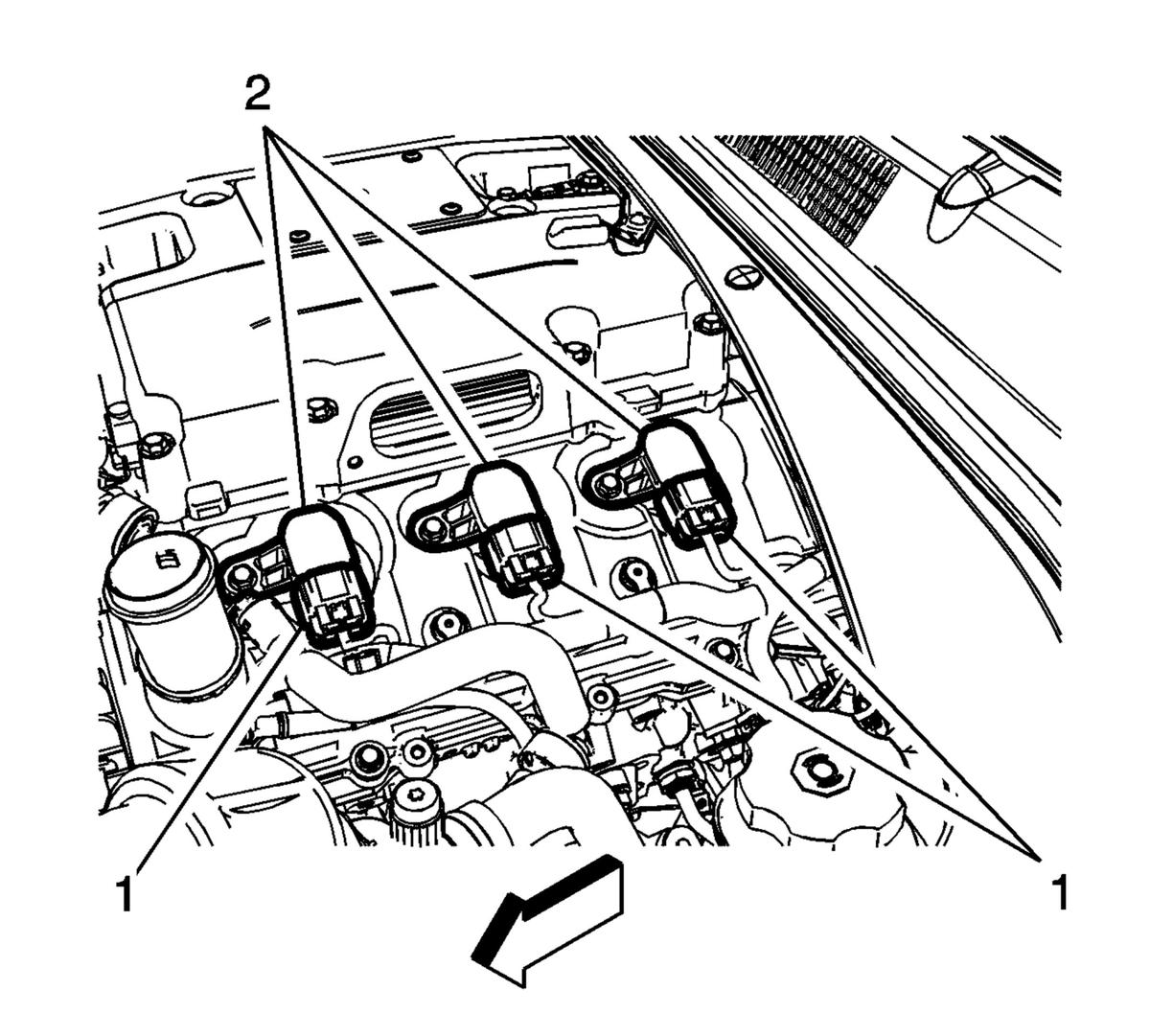

Fig 2: Ignition Coils And Electrical Connectors

Courtesy of GENERAL MOTORS COMPANY

Disconnect the engine wiring harness electrical connector(s) (1) from the ignition coil(s) (2).

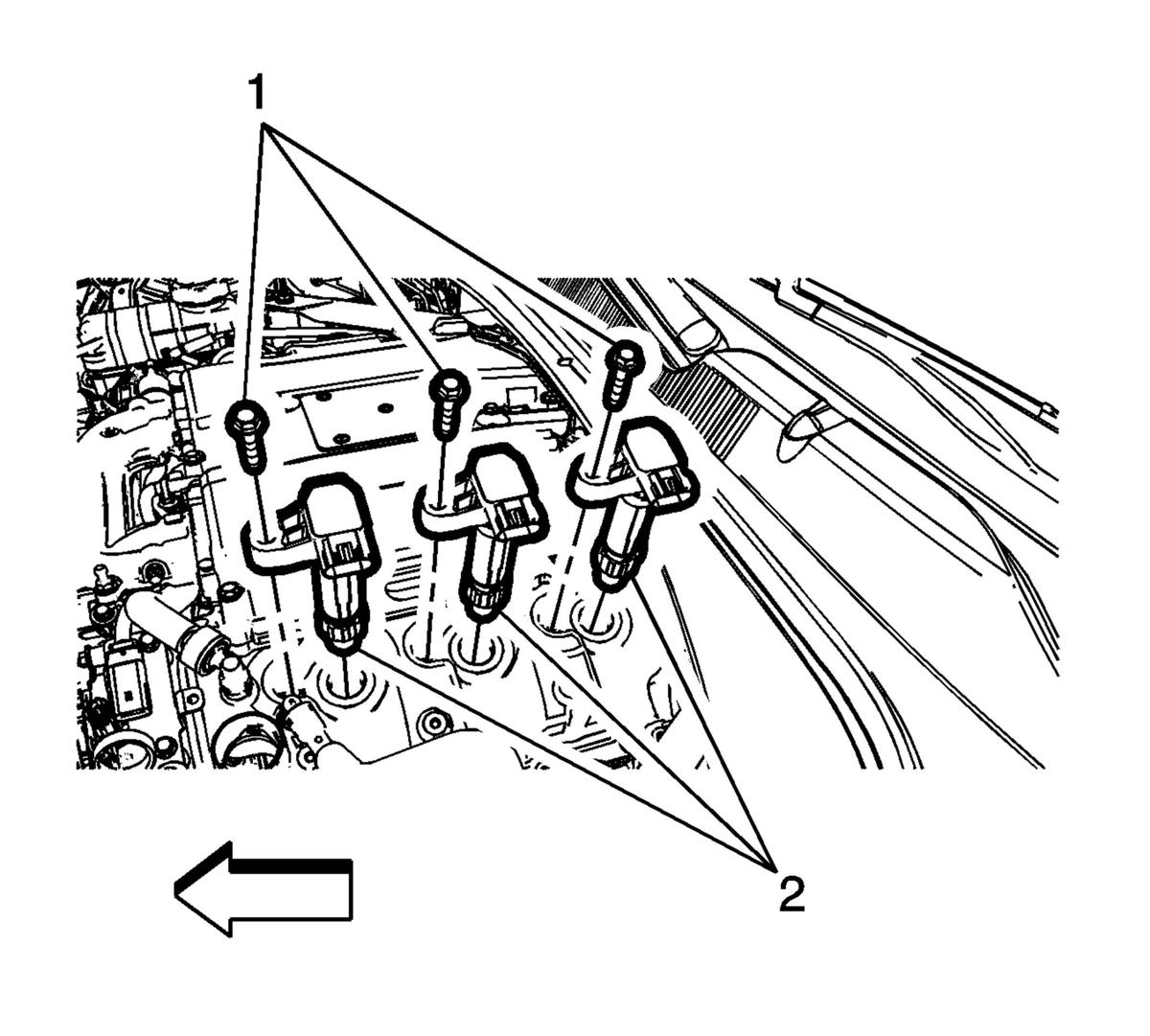

Fig 3: Ignition Coils And Bolts

Courtesy of GENERAL MOTORS COMPANY

Remove the ignition coil bolt(s) (1).
Remove the ignition coil(s) (2).
