Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
- Install the fuel feed pipe (1) to the vehicle.

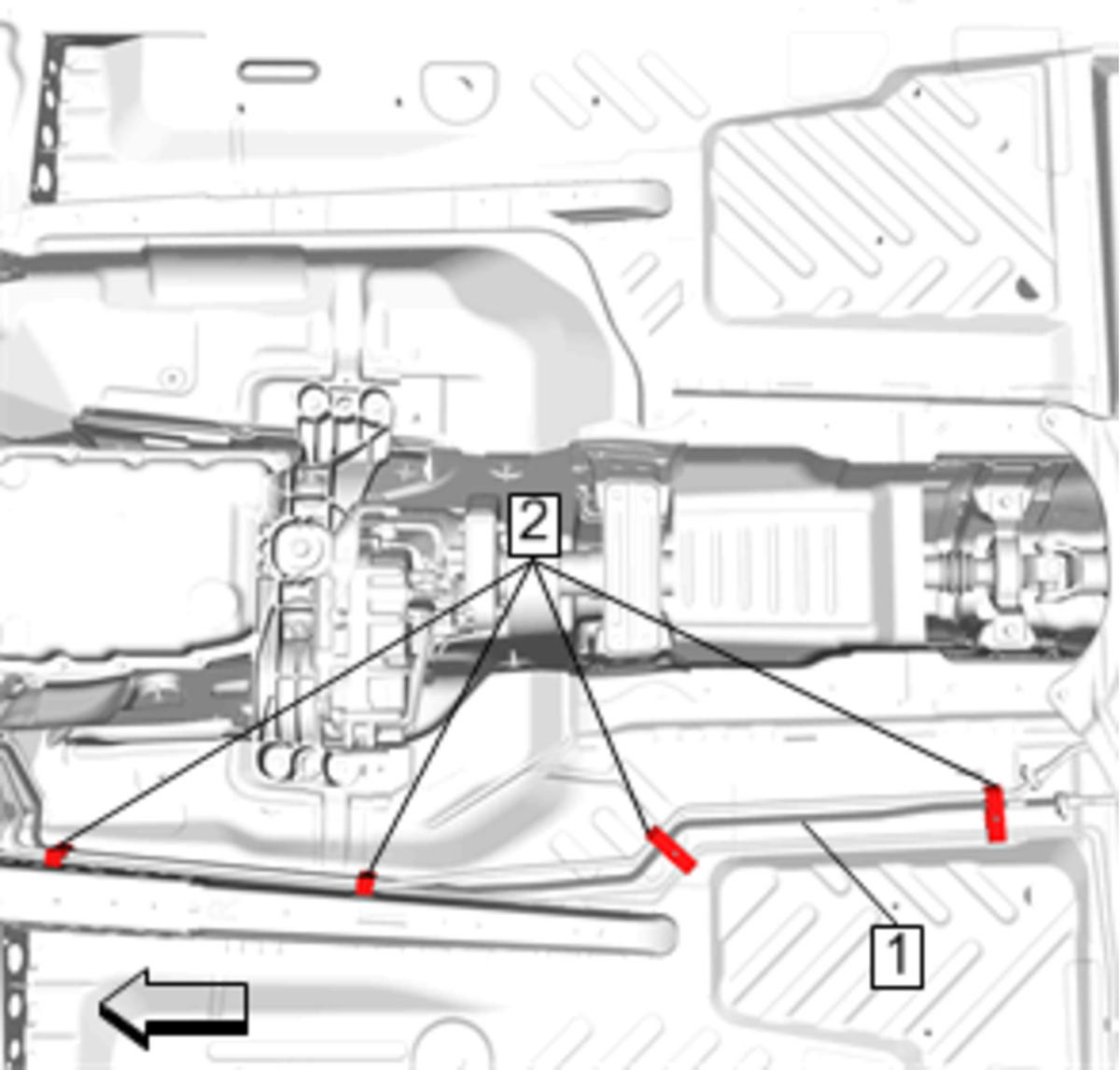

- Connect the fuel feed pipe (1) and install to the retainers (2). Refer to Plastic Collar Quick Connect Fitting Service
- Install the right side catalytic converter and exhaust. Refer to Exhaust System Replacement (LGX)
- Install the front body exhaust heat shield right side. Refer to Front Body Exhaust Heat Shield Replacement (Right)
- Install the underbody front air deflector right side. Refer to Underbody Front Air Deflector Replacement - Right Side
- Lower the vehicle.

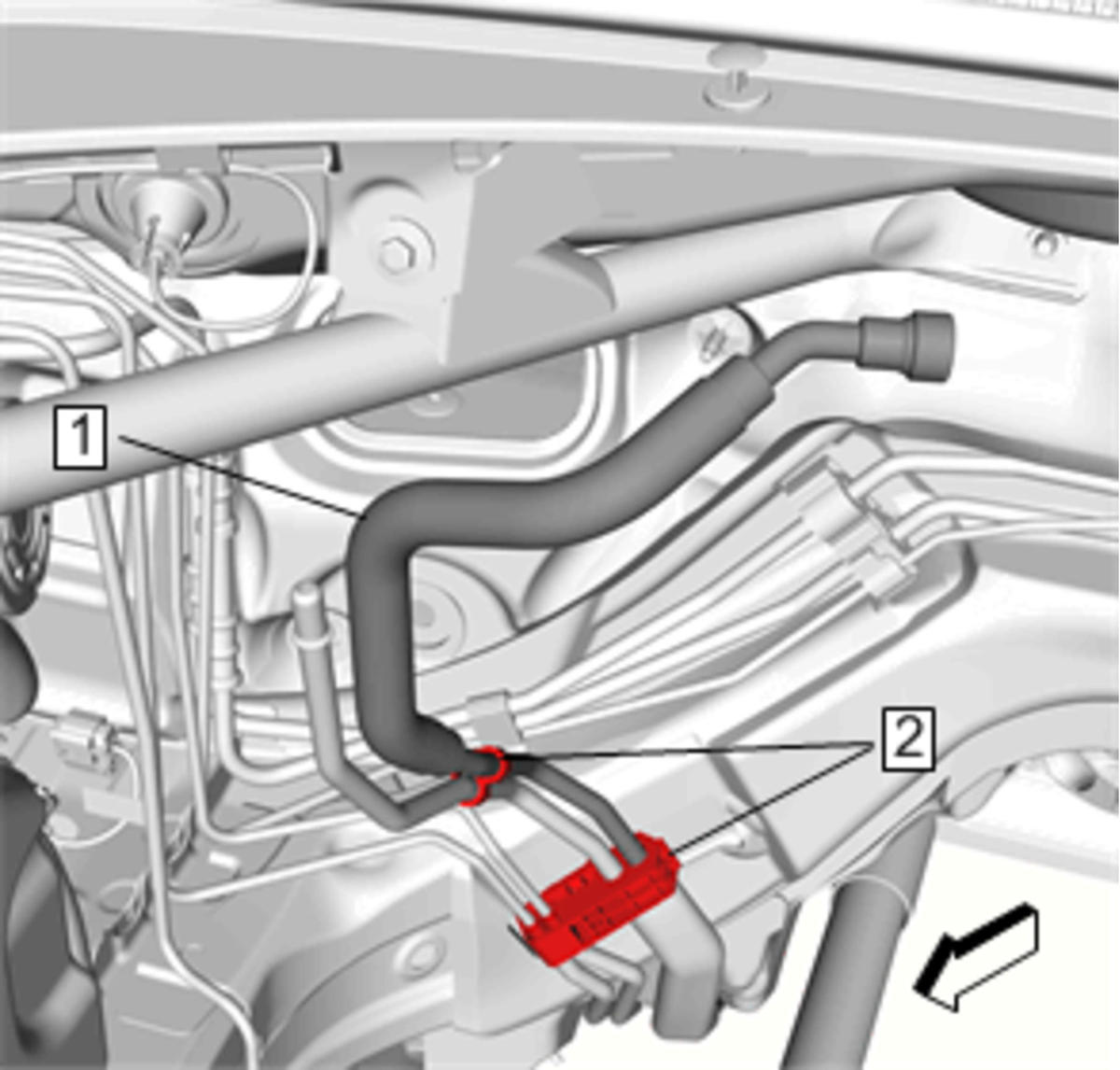

- Install the fuel feed pipe (1) to the retainers (2).

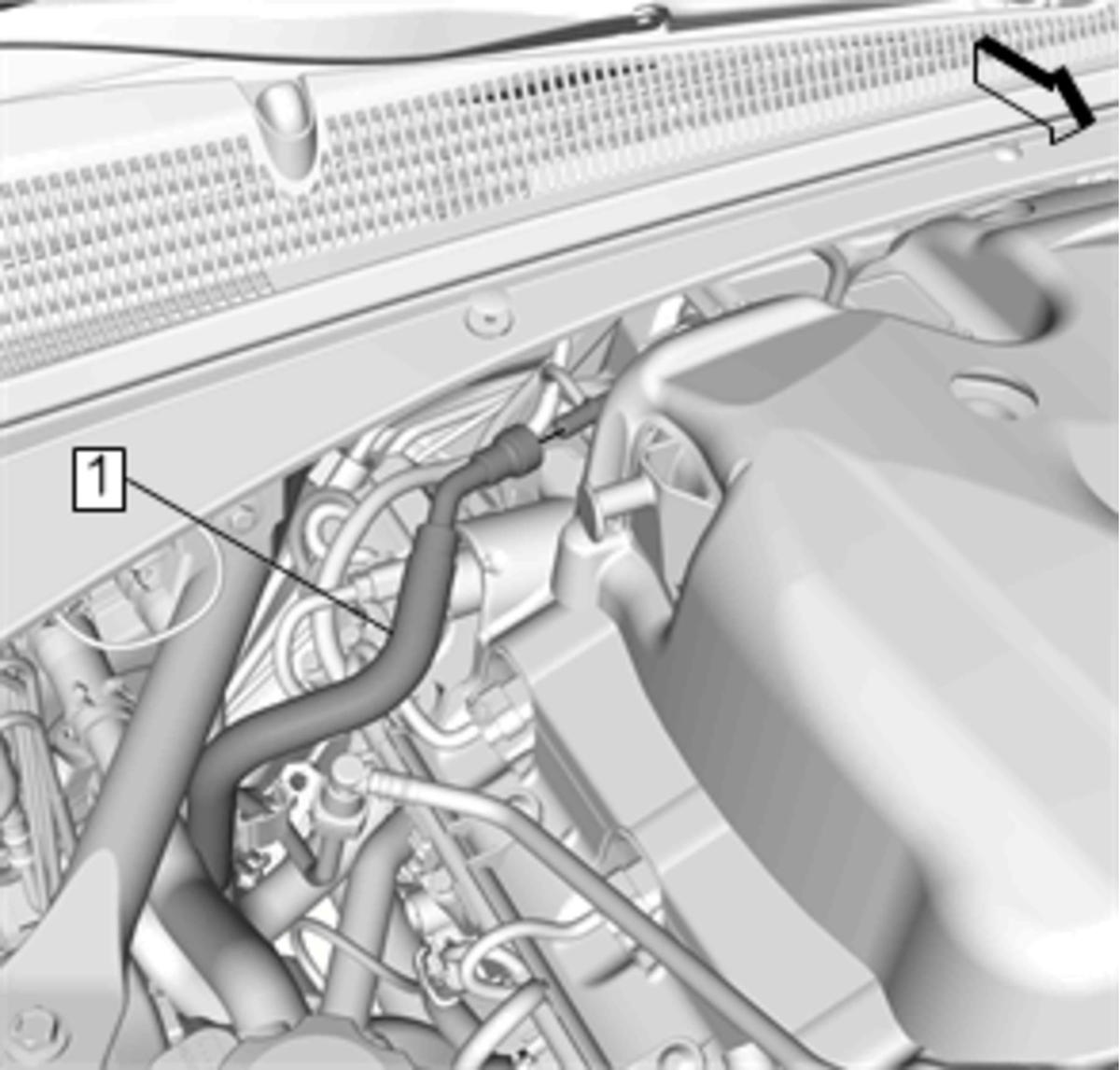

- Install the fuel feed pipe (1) to the engine. Refer to Metal Collar Quick Connect Fitting Service .
- Install the intake manifold cover. Refer to Intake Manifold Cover Replacement (LGX) .
