Evaporative Emission Canister Purge Tube Replacement (LGX)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Intake Manifold Cover. Refer to Intake Manifold Cover Replacement (LGX) |
|

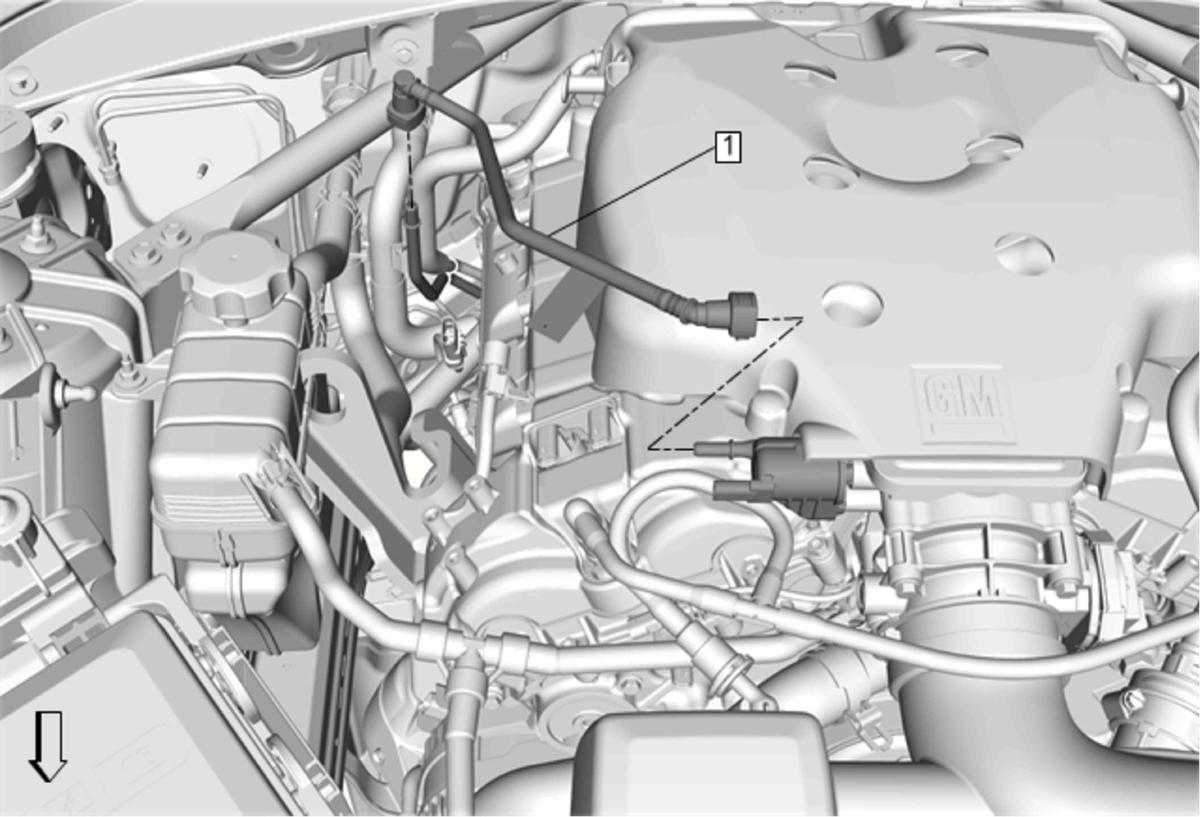

| 1 | Evaporative Emission Canister Purge Tube Procedure Disconnect Evaporative Emission Canister Purge Tube @ Evaporative Emission Pipe and Evaporative Emission Canister Purge Solenoid Valve. Refer to Plastic Collar Quick Connect Fitting Service |
