Removal Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .

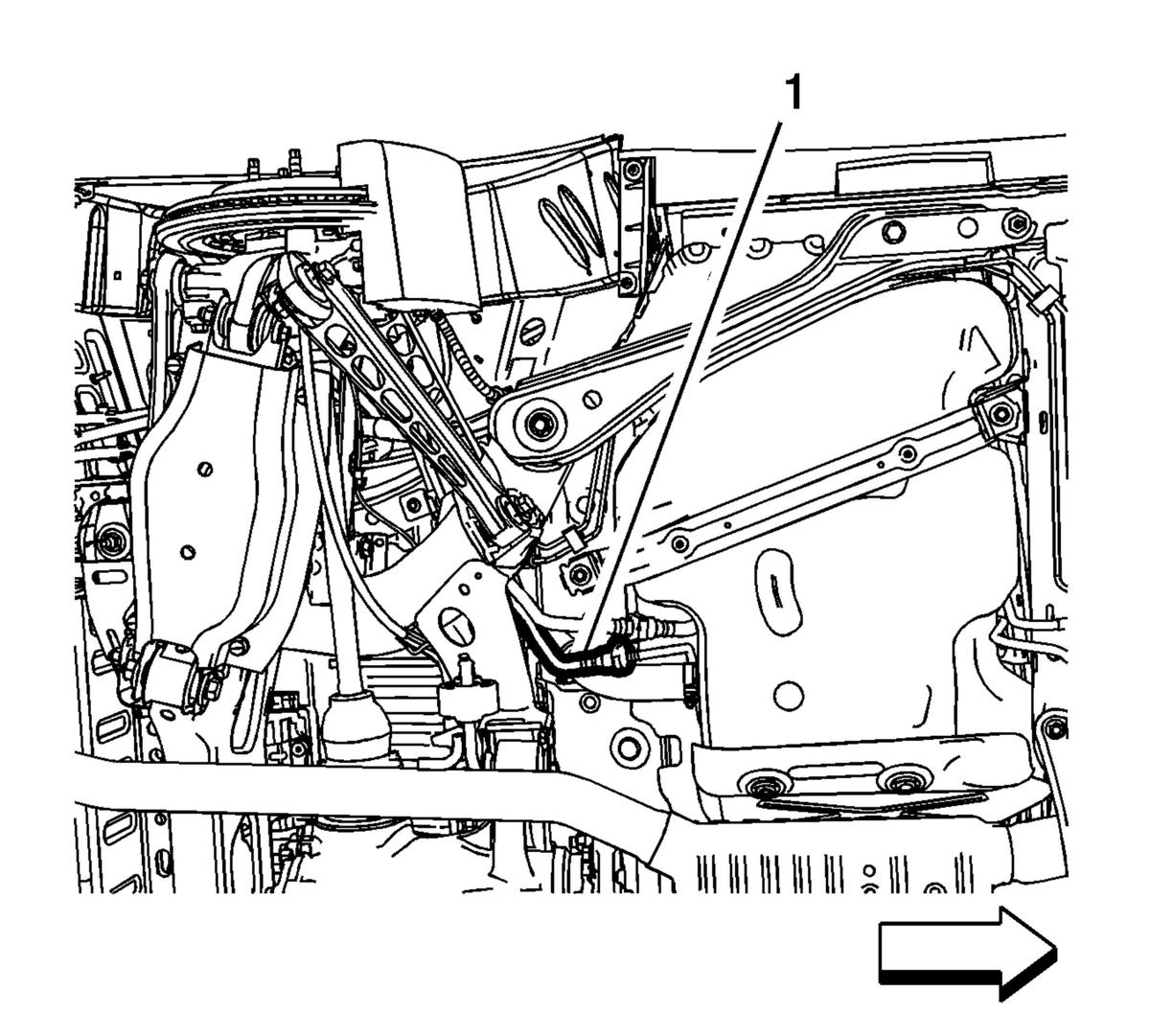

- Disconnect the evaporative emission canister purge pipe (1) from the fuel tank vent valve hose. Refer to Plastic Collar Quick Connect Fitting Service .
- Remove the right rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement (Non V-Series)Rear Wheelhouse Liner Replacement (V-Series) .

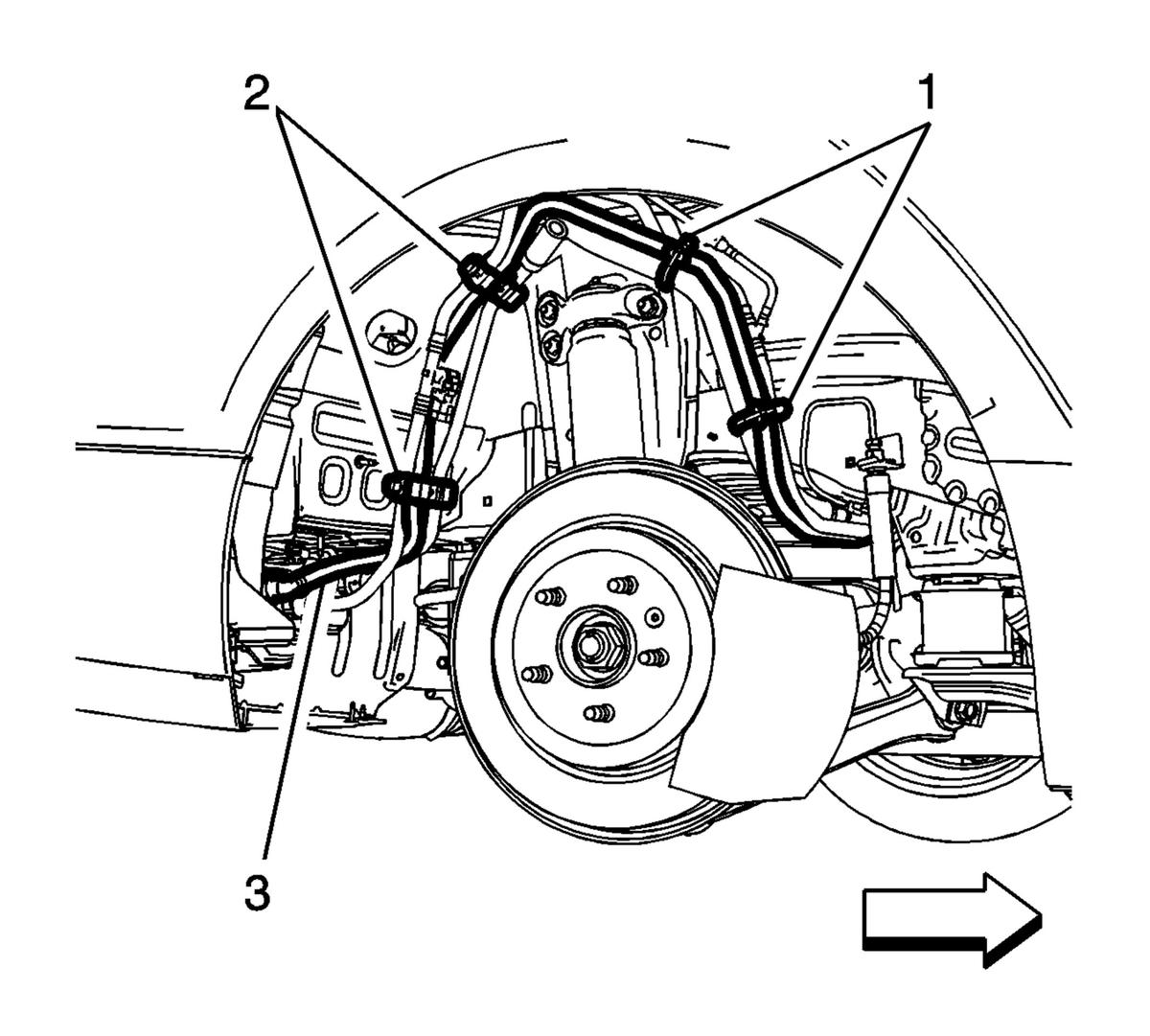

- Remove the tie straps (1) attaching the evaporative emission canister purge pipe to the fuel tank filler pipe.
- Remove the evaporative emission canister purge pipe (3) from the retainers (2).
- Remove the evaporative emission canister purge pipe (3) from the EVAP emission canister. Refer to Plastic Collar Quick Connect Fitting Service .
WARNING:
Refer to Gasoline/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning .
