Engine Rear Noise Shield Replacement (LF4)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Fuel Pipe Shield. Refer to Fuel Pipe Shield Replacement (LF4) |
|

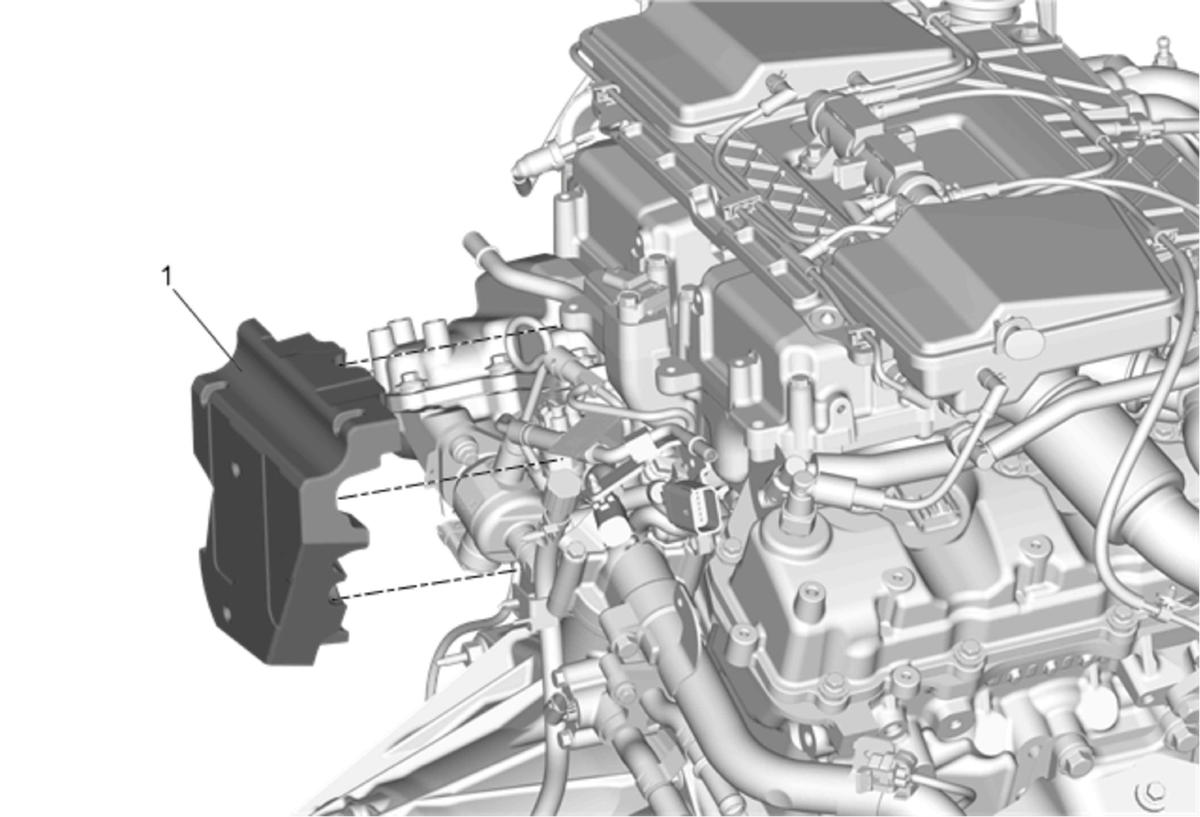

| 1 | Engine Rear Noise Shield Procedure Unsnap the engine noise shield from the rear of the engine. |
