Engine Control Module Bracket Replacement (LGX)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

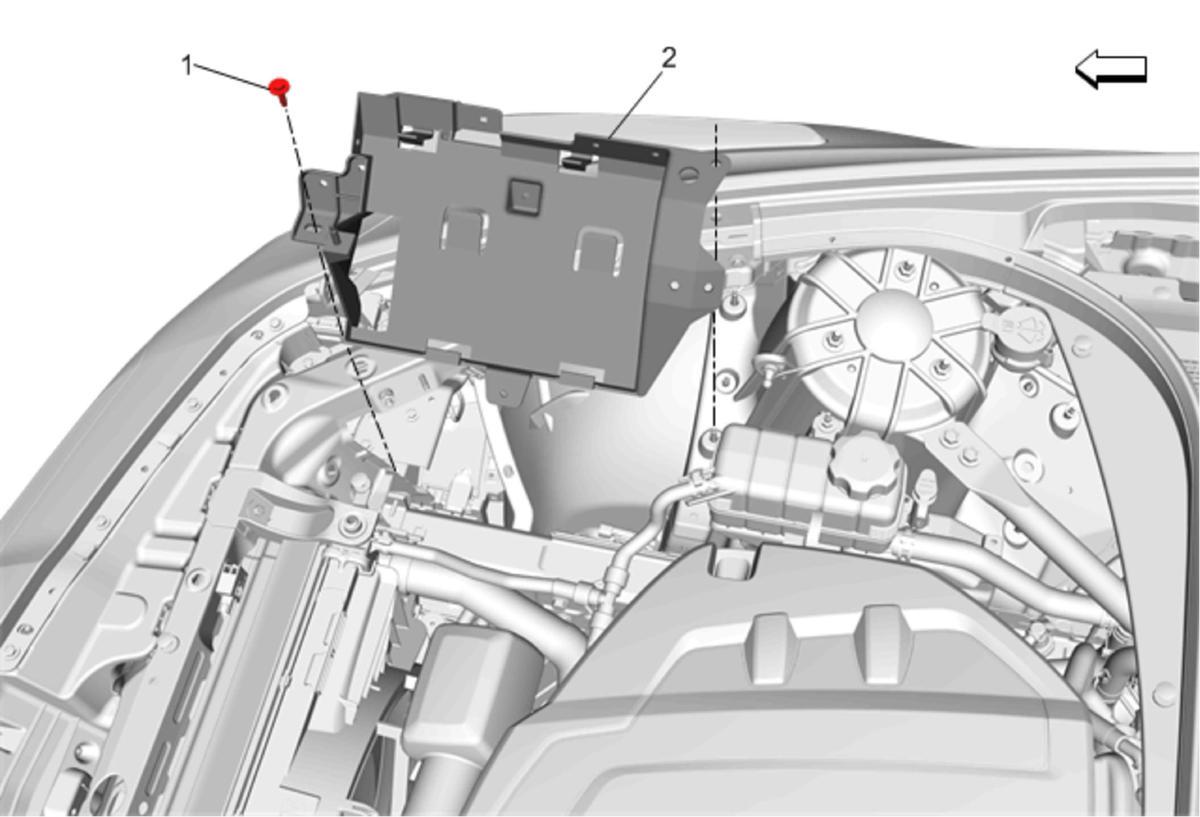

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the engine control module. Refer to Engine Control Module Replacement (LGX) |
|
| 1 | Engine Control Module Bracket Bolt
CAUTION:
Refer to Fastener Caution . Tighten 4.5 N.m (40 lb in) |
| 2 | Engine Control Module Bracket |
