Engine Control Module Bracket Replacement (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

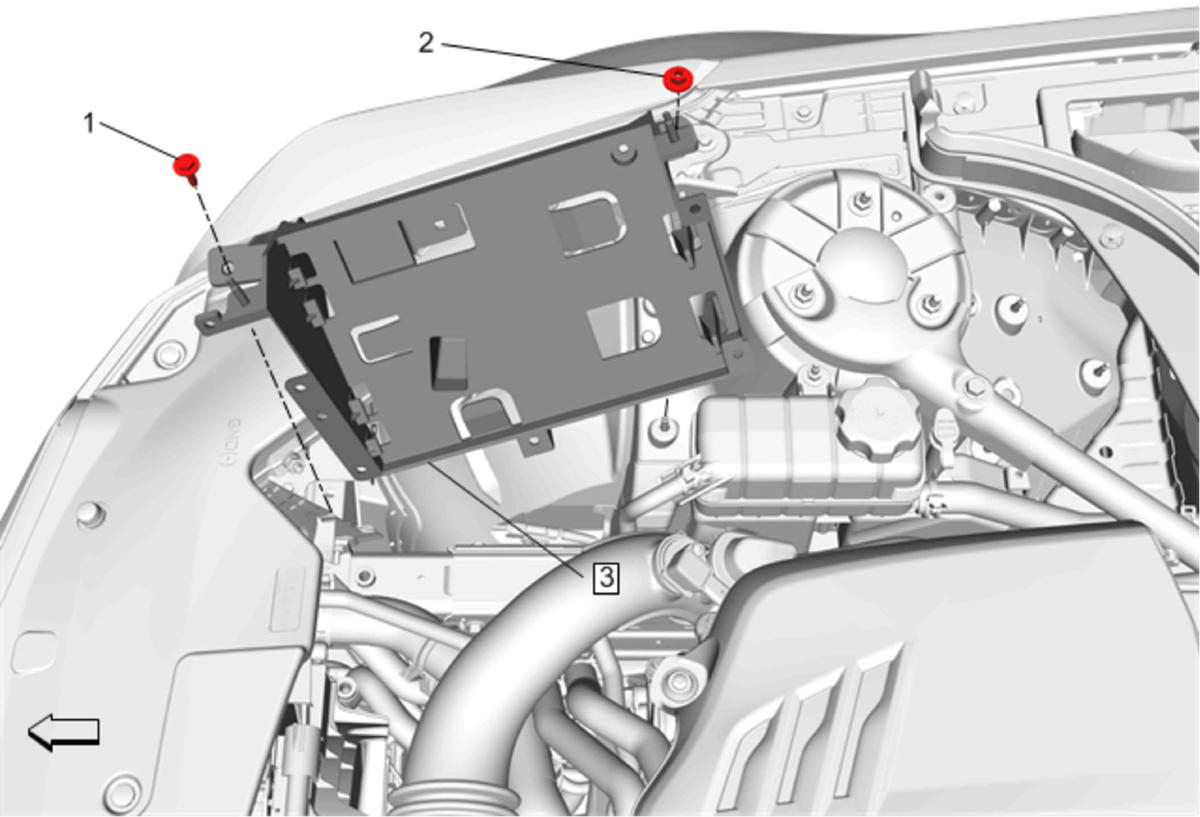

Fig 1: Engine Control Module Bracket (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the engine control module. Refer to Engine Control Module Replacement (LF4)
1	Engine Control Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 4.5 N.m (40 lb in)
2	Engine Control Module Bracket Nut Tighten 4.5 N.m (40 lb in)
3	Engine Control Module Bracket Procedure Carefully reposition the wiring harness at the top front of the bracket. Reposition the bracket then disconnect the 2 harness retainers from the backside of the bracket.
