Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Remove Front Cradle Shear Plate. Refer to Front Cradle Shear Plate Replacement (V Series)

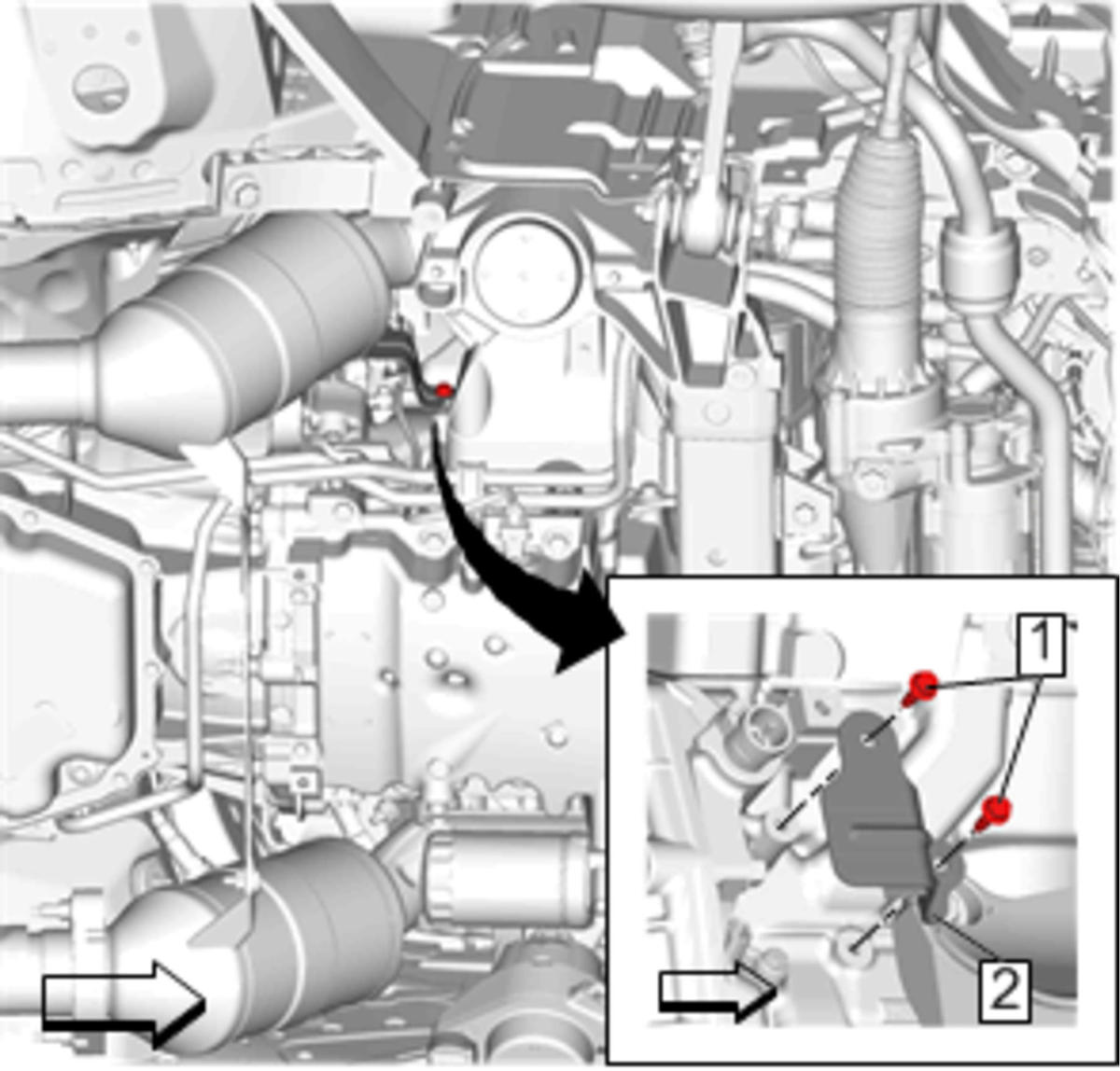

Fig 1: Crankshaft Position Sensor Shield And Fasteners

Courtesy of GENERAL MOTORS COMPANY

NOTE:

The crankshaft position sensor shield (2) can be repositioned while allowing it to remain attached to the engine wiring harness retainer.

Remove the crankshaft position sensor shield fasteners (1) then reposition the shield (2).

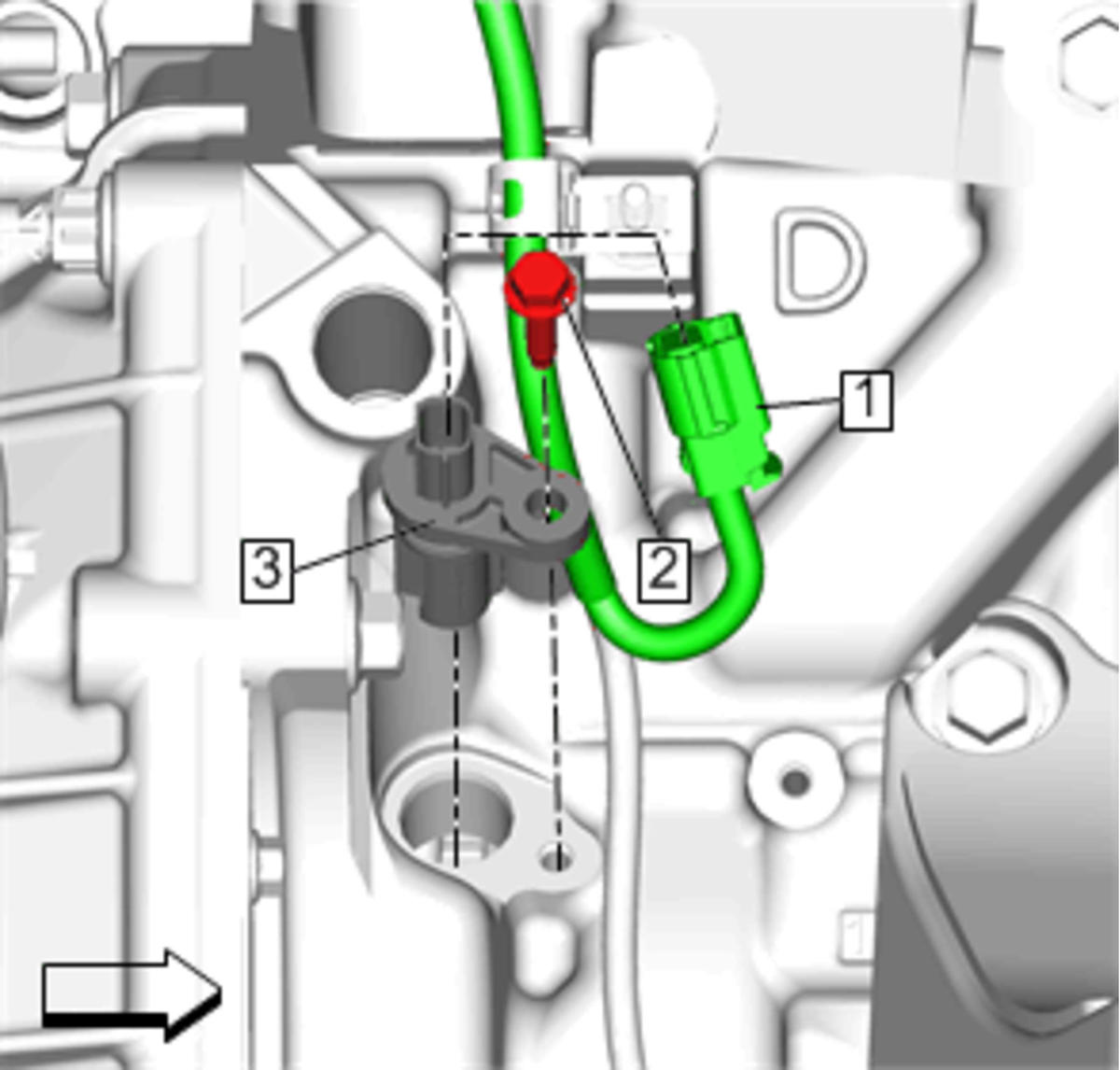

Fig 2: Crankshaft Position Sensor, Electrical Connector And Fastener

Courtesy of GENERAL MOTORS COMPANY

Disconnect the crankshaft position sensor electrical connector (1).
Remove the crankshaft position sensor fastener (2).
Remove the crankshaft position sensor (3).
