Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

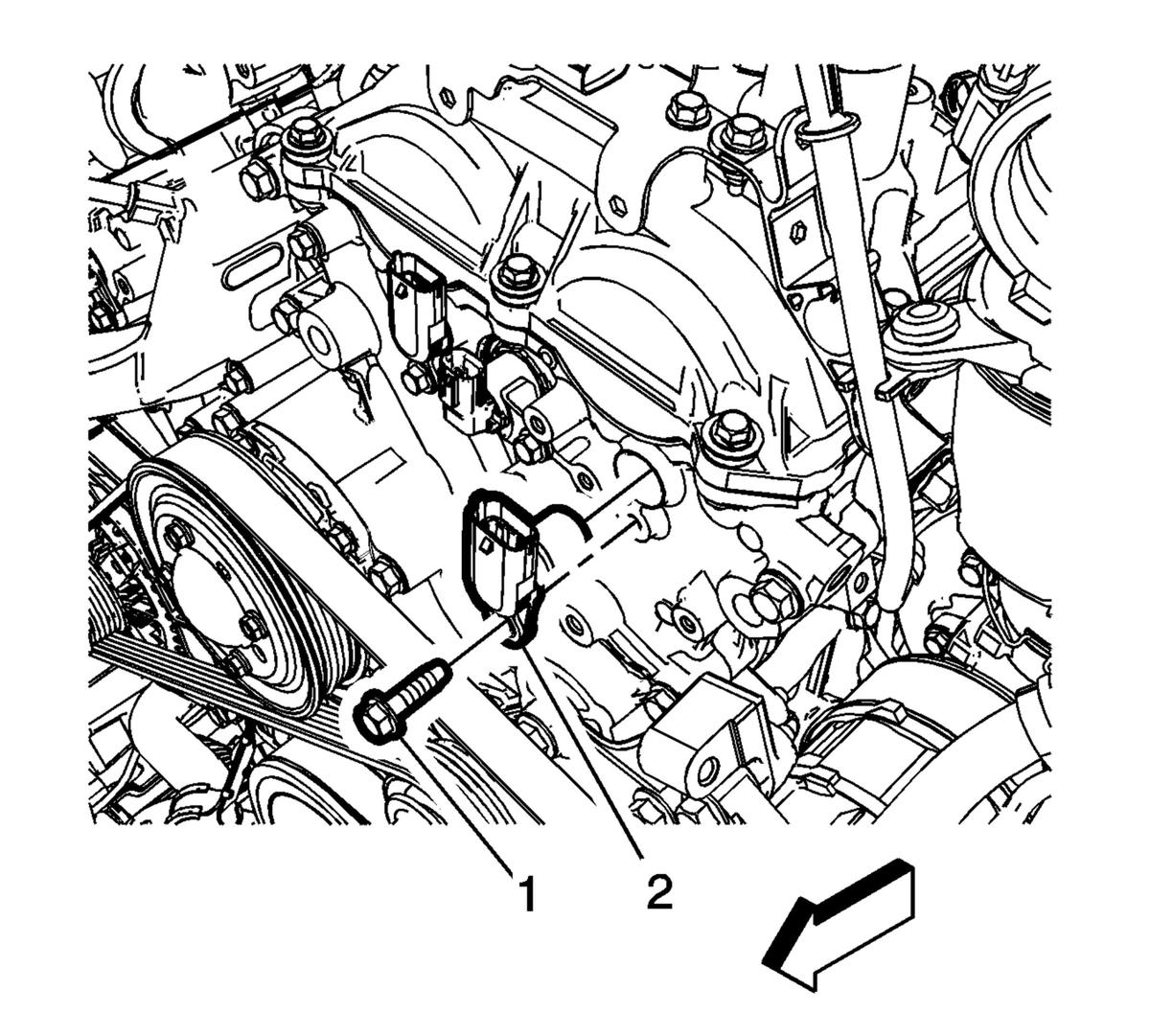

    Fig 1: Camshaft Position Sensor - Bank 2 (Left Side) Exhaust (LF4)
    GM3533566Courtesy of GENERAL MOTORS COMPANY
  1. Install the CMP sensor (2) into to the engine front cover.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the CMP sensor to engine front cover retaining bolt (1) and tighten to 10 N.m (89 lb in).
  3. Connect the CMP sensor electrical connector.
