Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

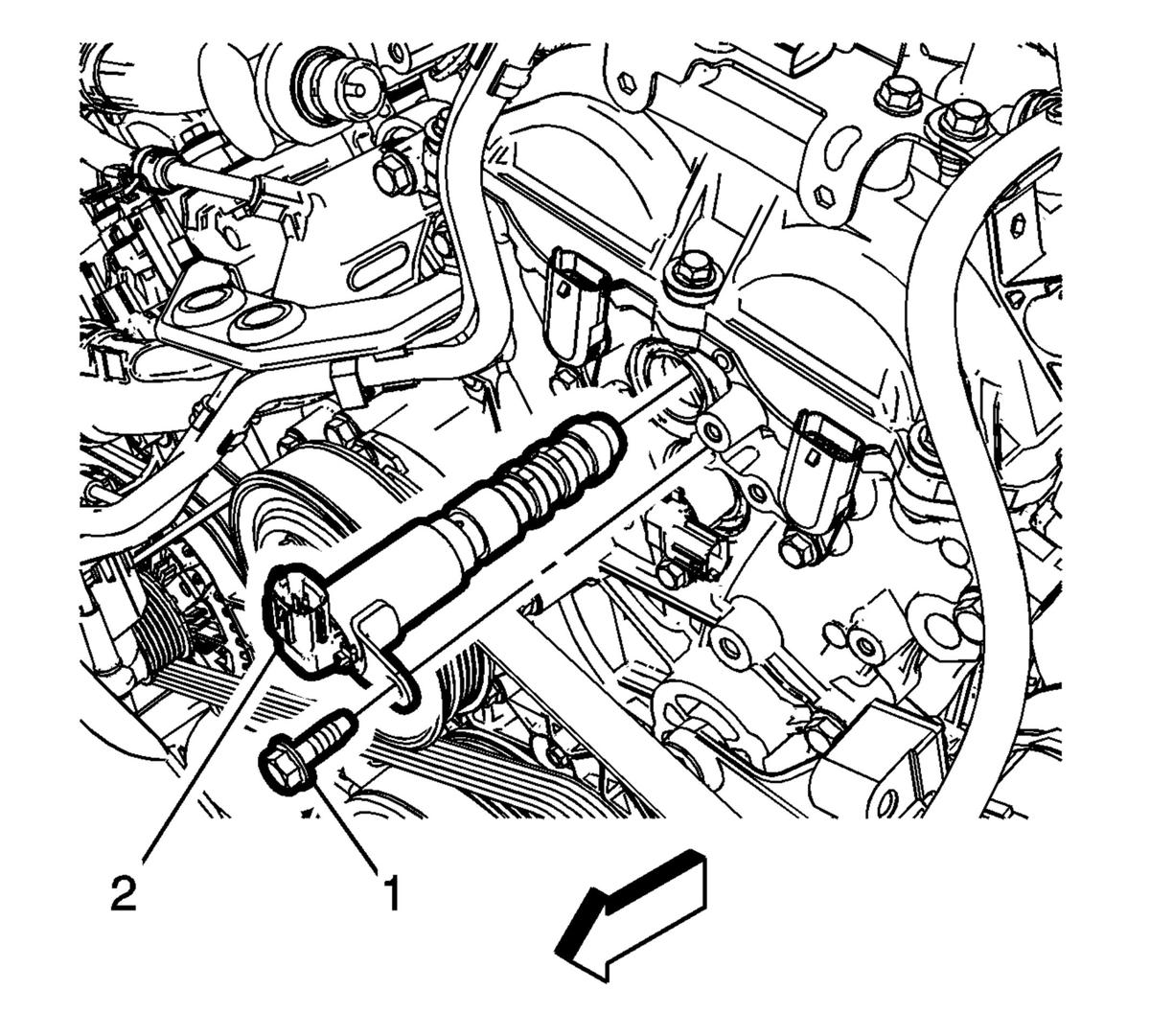

    Fig 1: Camshaft Position Actuator Solenoid Valve Solenoid - Bank 2 (Left Side) Intake (LF4)
    GM3535549Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Safety Glasses Warning .

  1. Use compressed air to remove debris from the camshaft position actuator solenoid valve solenoid and surrounding cavities.
  2. Disconnect the camshaft position actuator solenoid valve solenoid electrical connector.
  3. Remove the camshaft position actuator solenoid valve solenoid to engine front cover retaining bolt (1).
  4. Remove the camshaft position actuator solenoid valve solenoid (2) from the engine front cover.
