Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

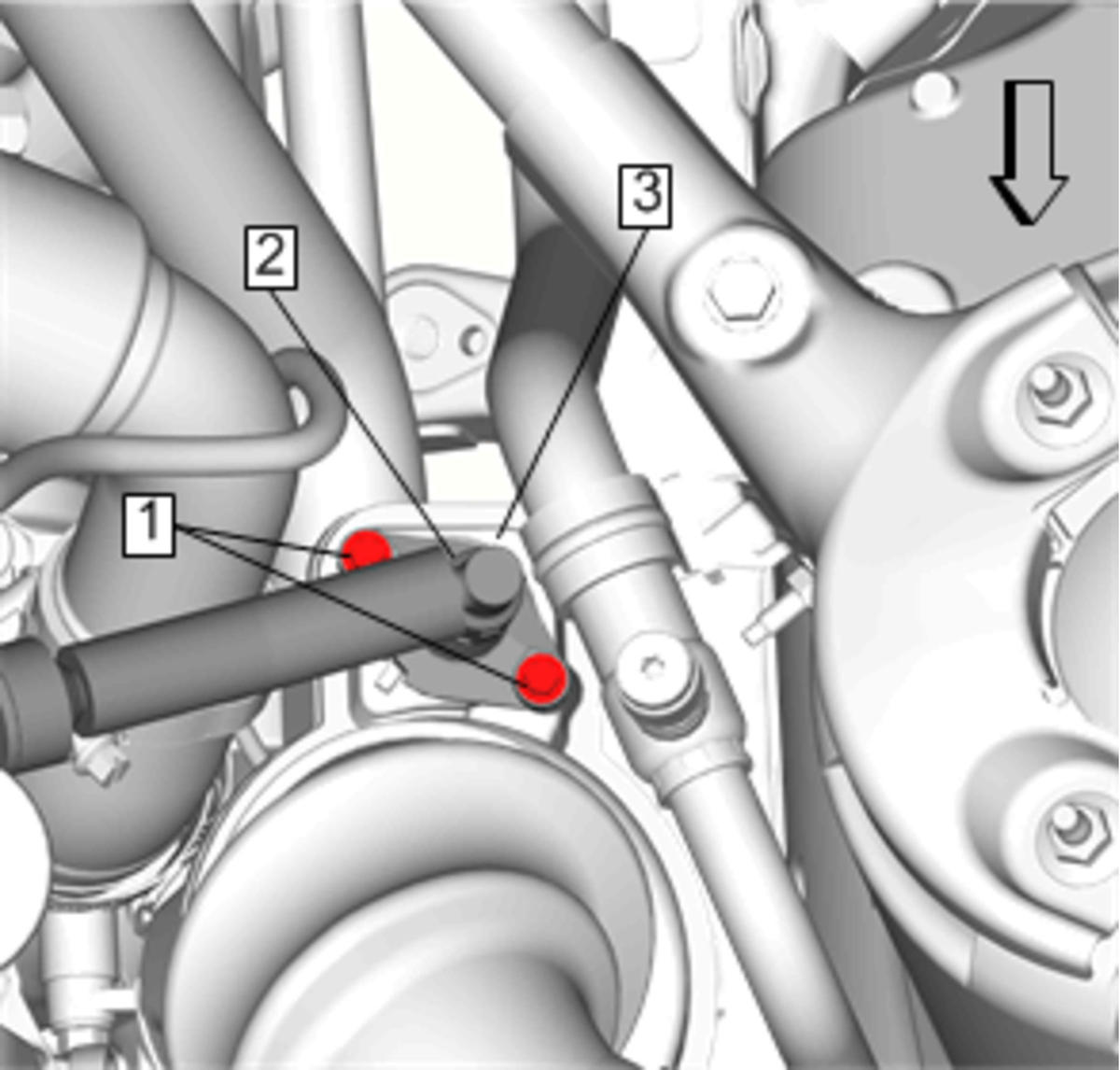

Fig 1: Air Cleaner Outlet Duct, Adapter And Bolt

Courtesy of GENERAL MOTORS COMPANY

Remove Air Cleaner Outlet Duct Adapter Bolt (1) @ Air Cleaner Outlet Duct Adapter (2) (Qty: 2)
Remove Air Cleaner Outlet Duct Adapter (2) @ Air Cleaner Outlet Duct (3)

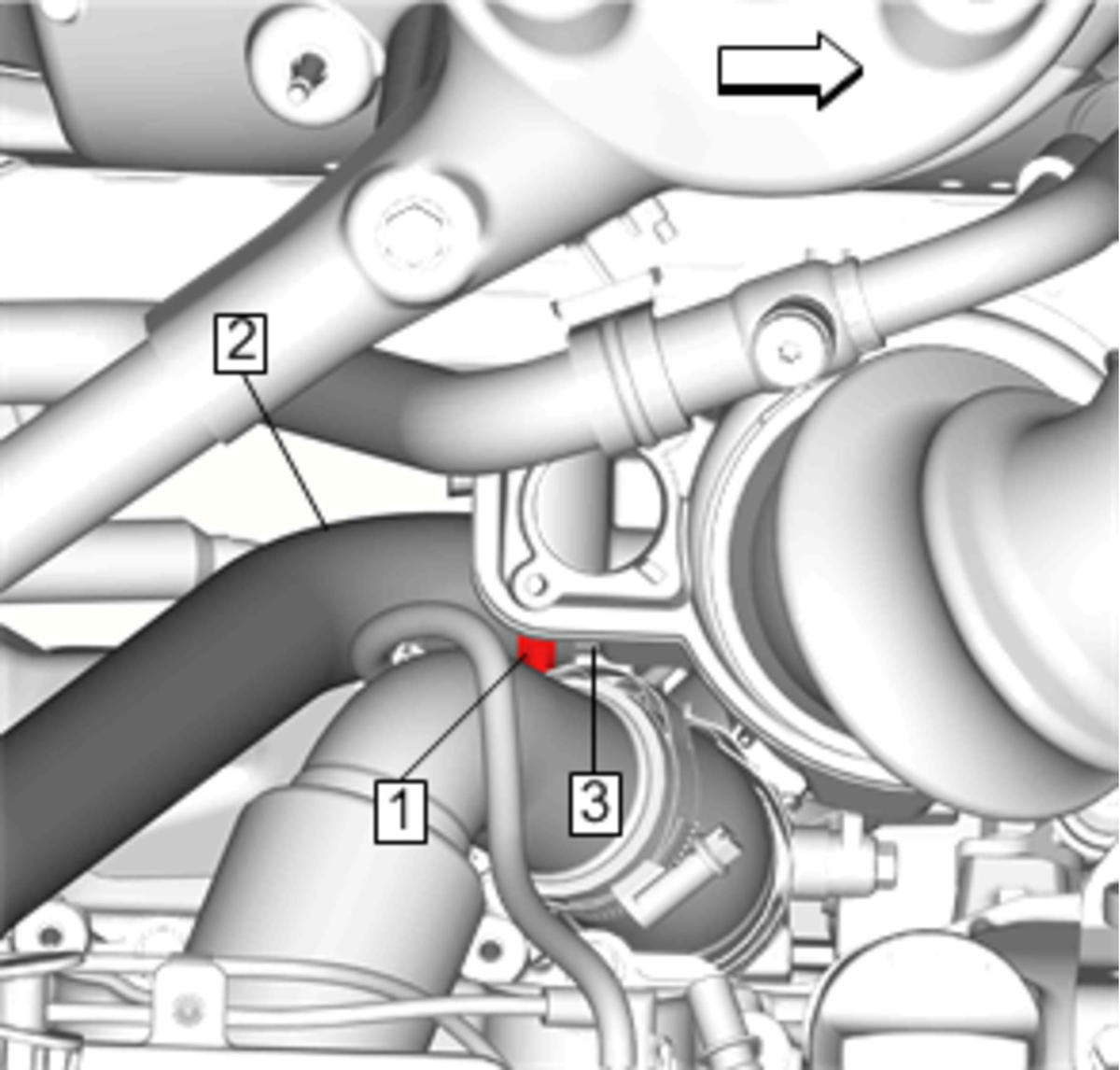

Fig 2: Charge Air Bypass Valve Hose, Air Cleaner Outlet Duct And Clamp

Courtesy of GENERAL MOTORS COMPANY

Remove Charge Air Bypass Valve Hose Clamp (1) @ Charge Air Bypass Valve Hose (2)
Remove Charge Air Bypass Valve Hose (2) @ Air Cleaner Outlet Duct (3)

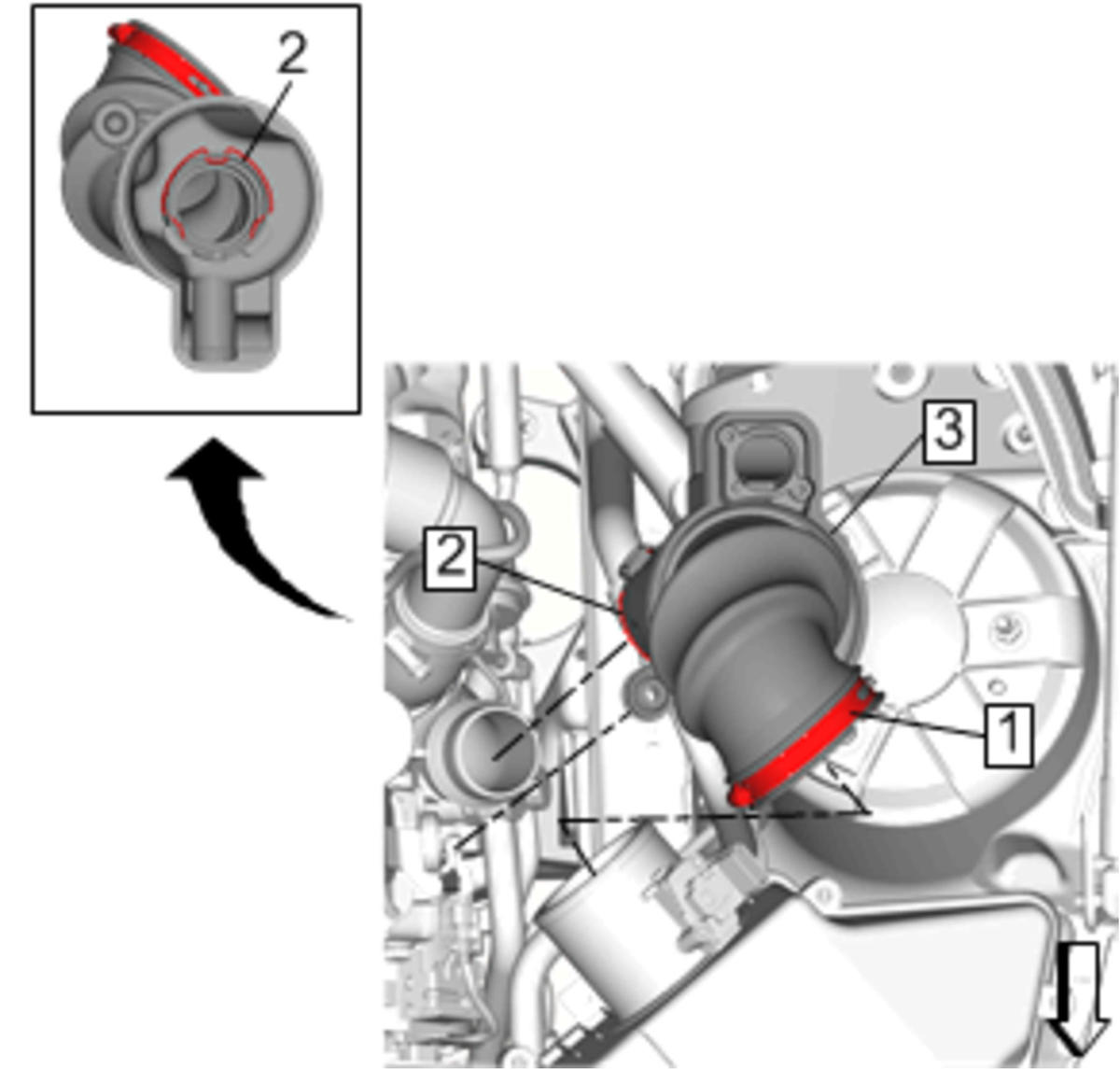

Fig 3: Air Cleaner Outlet Duct, Clamp And Retainer Spring

Courtesy of GENERAL MOTORS COMPANY

Remove Air Cleaner Outlet Duct Clamp (1) @ Air Cleaner Outlet Duct (3)

NOTE:

Retainer spring is buried low and is a blind operation.

NOTE:

Use a flat bladed tool to disengage both sides of the spring to remove air cleaner outlet duct from turbocharger.

Disengage Retainer Spring (2) @ Air Cleaner Outlet Duct (3)
Remove Air Cleaner Outlet Duct (3)
