Air Cleaner Element Replacement (LGX)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

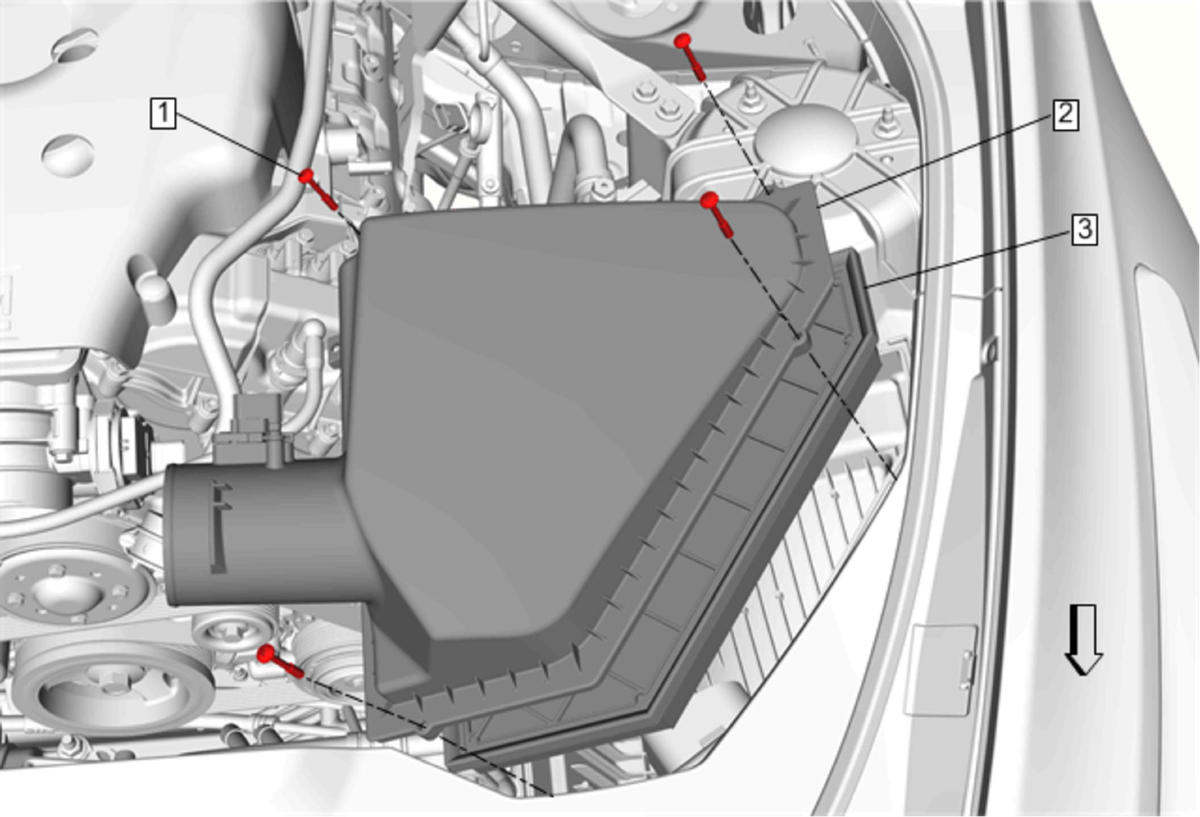

Fig 1: Air Cleaner Element (LGX)
GM4082907Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement (LGX)
  2. Disconnect the electrical connector.
1 Air Cleaner Upper Housing Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
2.3 N.m (20.4 lb in)
2 Air Cleaner Upper Housing
3 Air Cleaner Element
