Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement (LF4)
  2. Disconnect Air Cleaner Outlet Front Duct. Refer to Air Cleaner Outlet Front Duct Replacement (LF4)
  3. Disconnect the mass airflow sensor electrical connector.

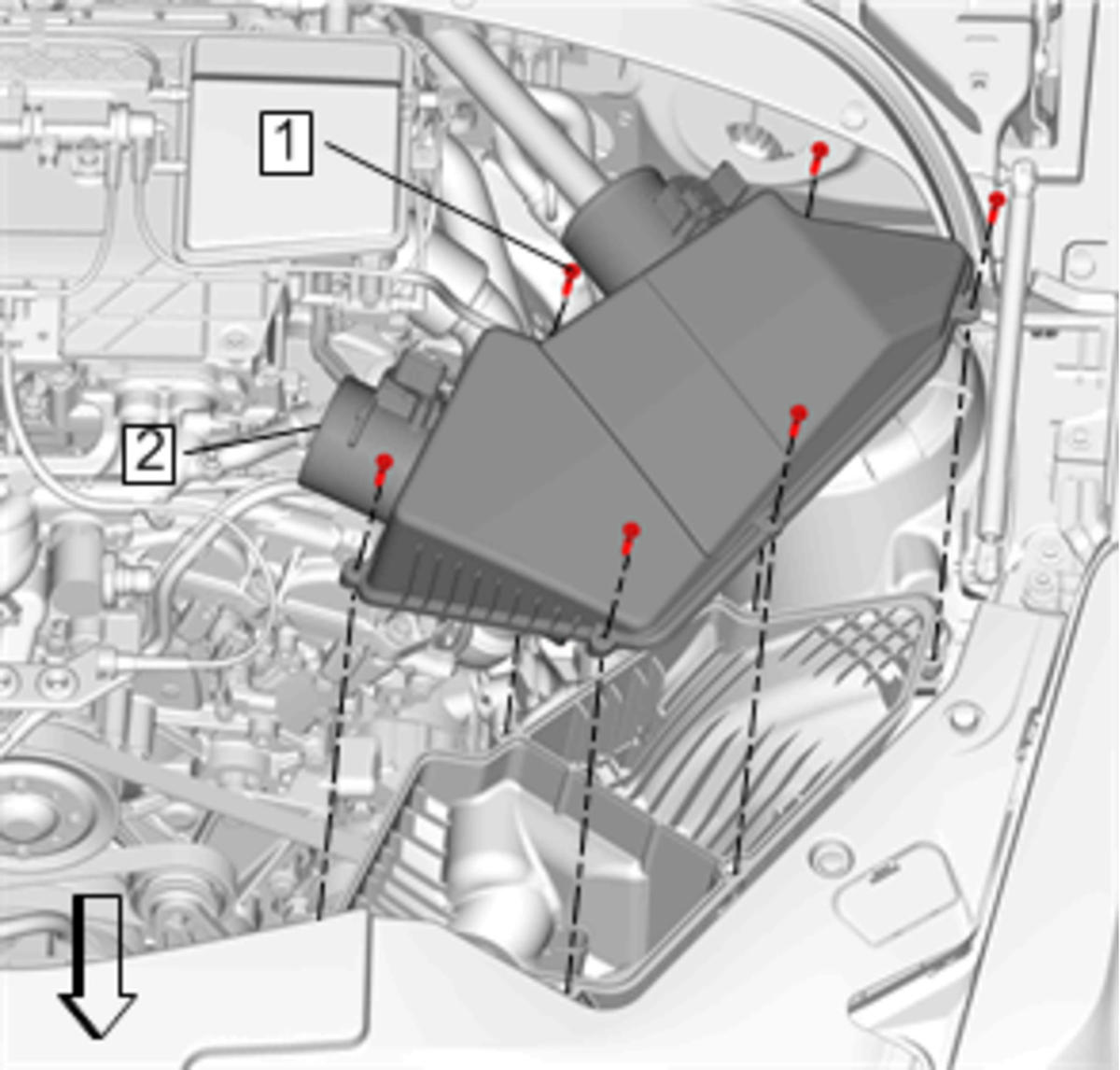

    4. Fig 1: Air Cleaner Upper Housing And Bolts
    GM4024938Courtesy of GENERAL MOTORS COMPANY
  4. Remove Air Cleaner Upper Housing Bolts (1)
  5. Remove Air Cleaner Upper Housing (2)

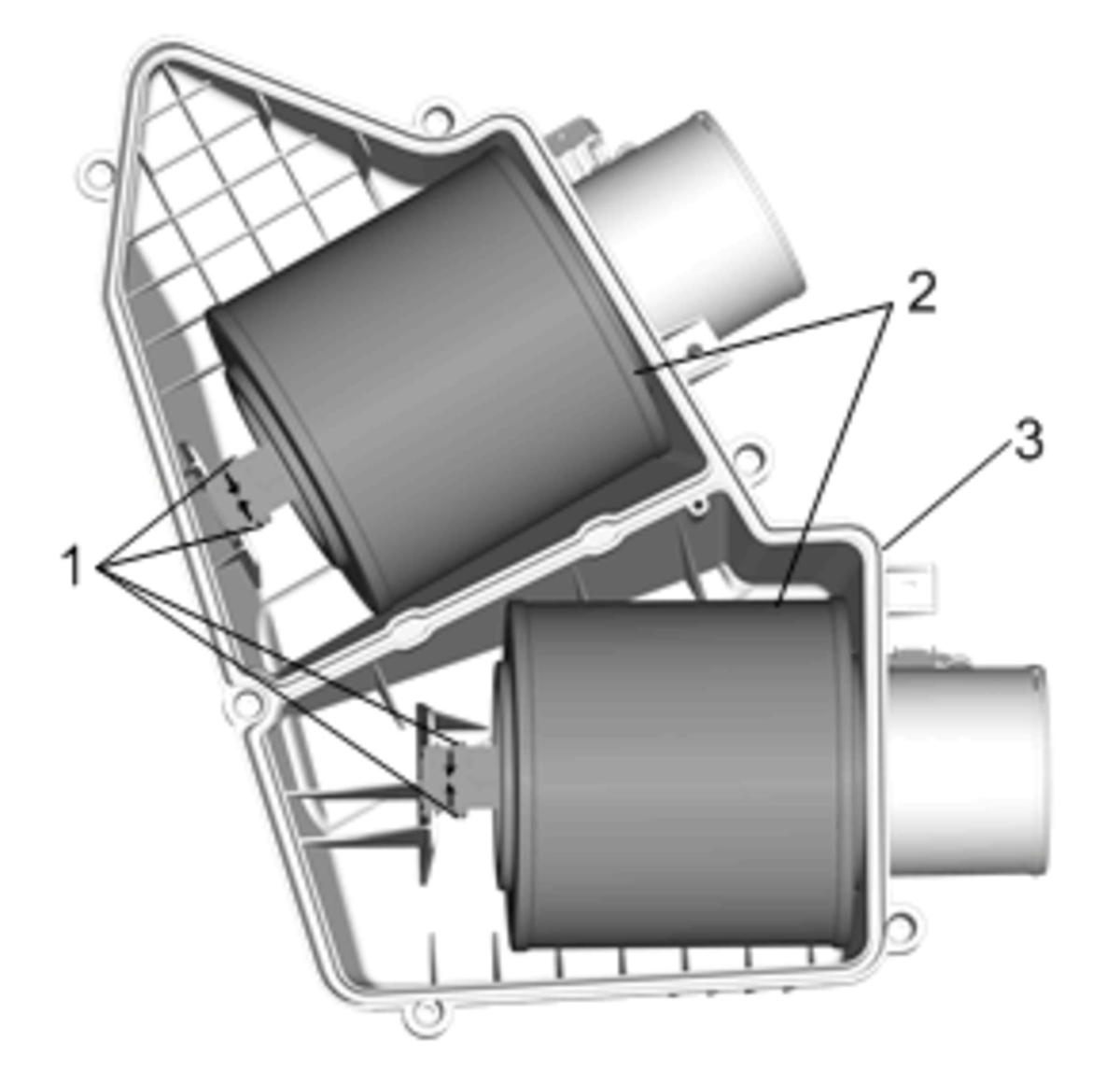

    6. Fig 2: Air Cleaner Element And Upper Housing
    GM4024939Courtesy of GENERAL MOTORS COMPANY
  6. Release the retaining tabs (1) and slide the air cleaner element (2) forward to remove from the air cleaner upper housing (3).
