Top Side of Engine Components (LCV/LTG)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

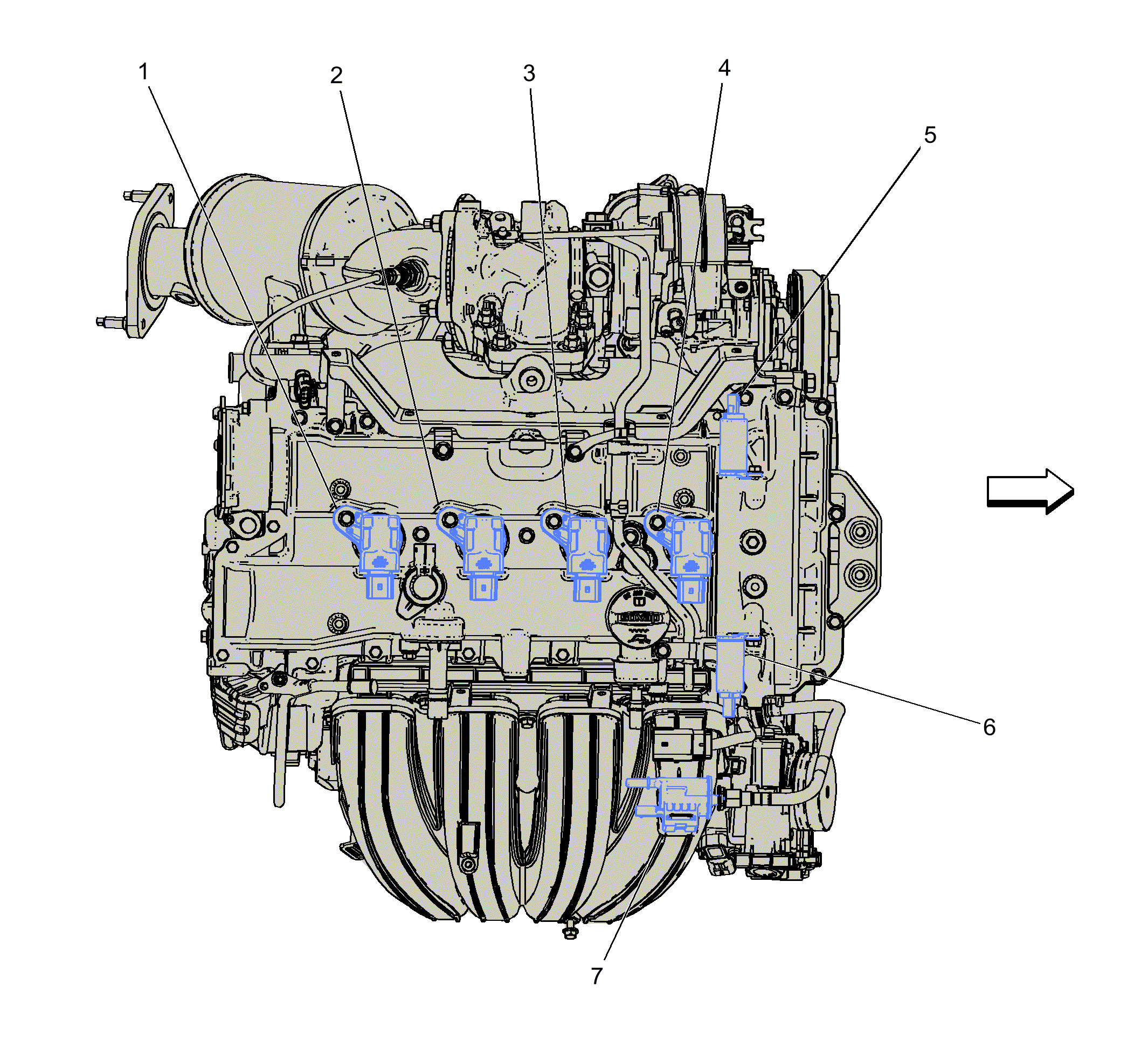

Top Side of Engine Components (LCV/LTG)
| Items |
|---|
| 1. T8D Ignition Coil 4 T8D Ignition Coil 4 (LCV/LTG) |
| 2. T8C Ignition Coil 3 T8C Ignition Coil 3 (LCV/LTG) |
| 3, T8B Ignition Coil 2 T8B Ignition Coil 2 (LCV/LTG) |
| 4. T8A Ignition Coil 1 T8A Ignition Coil 1 (LCV/LTG) |
| 5. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LCV/LTG) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LCV/LTG) |
| 6. Q6F Camshaft Position Actuator Solenoid Valve - Intake (LCV/LTG) Q6F Camshaft Position Actuator Solenoid Valve - Intake (LCV/LTG) |
| 7. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
