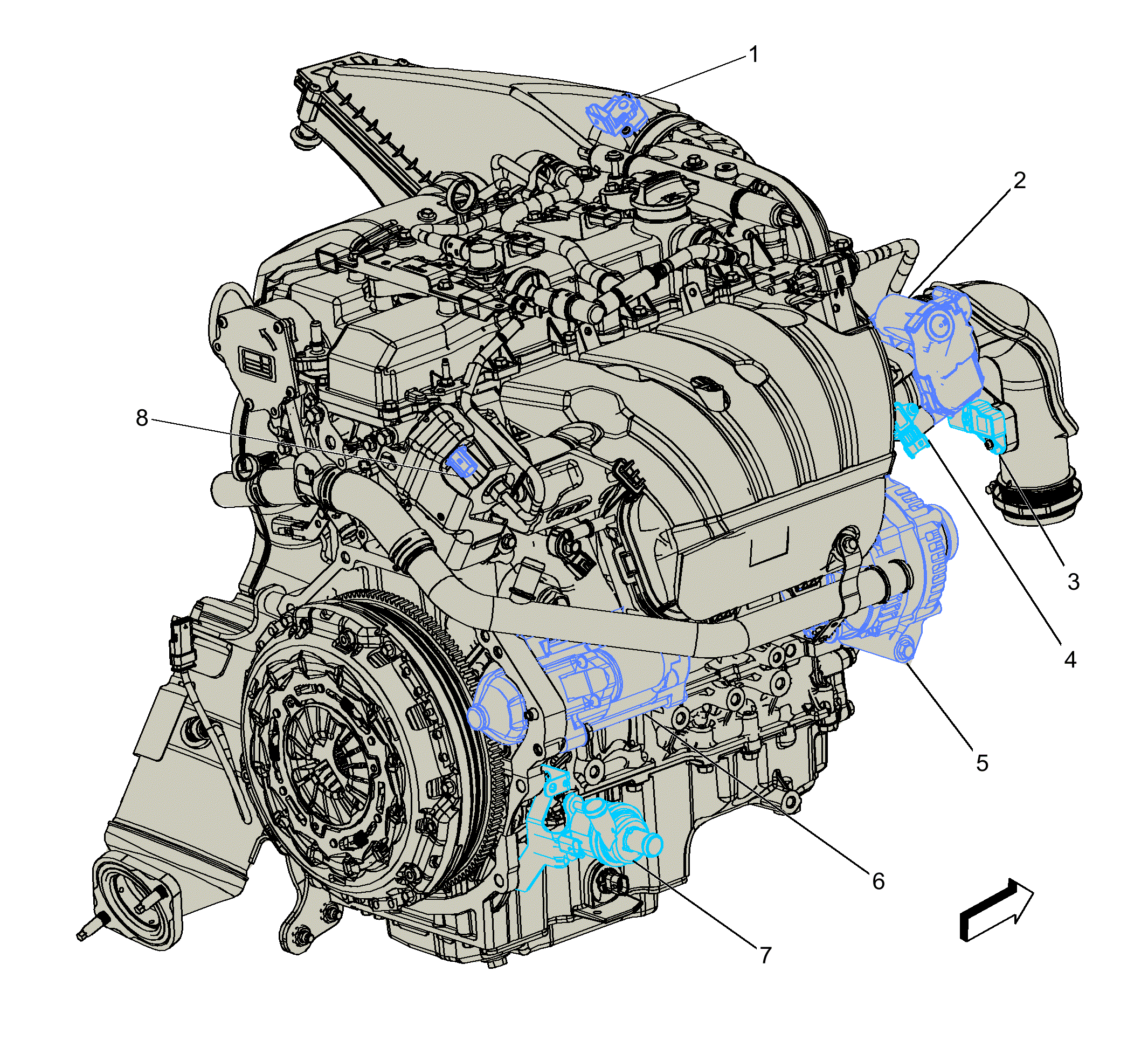

Right Rear of Engine Components (LCV/LTG)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Right Rear of Engine Components (LCV/LTG)
| Items |
|---|
| 1. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 2. Q38 Throttle Body Q38 Throttle Body (LCV/LTG/LGX) |
| 3. B111B Turbocharger Boost/Intake Air Temperature Sensor B111B Turbocharger Boost/Intake Air Temperature Sensor (LTG) |
| 4. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LCV)B74 Manifold Absolute Pressure Sensor (LTG) |
| 5. G13 Generator G13 Generator X1G13 Generator X2 (LCV/LGX/LTG) |
| 6. M64 Starter Motor M64 Starter Motor X1 (-KL9)M64 Starter Motor X1 (KL9)M64 Starter Motor (KL9) |
| 7. G17 Heater Coolant Pump (KL9) G17 Heater Coolant Pump |
| 8. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LCV/LTG) |
