Manual Transmission Components (MG9)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

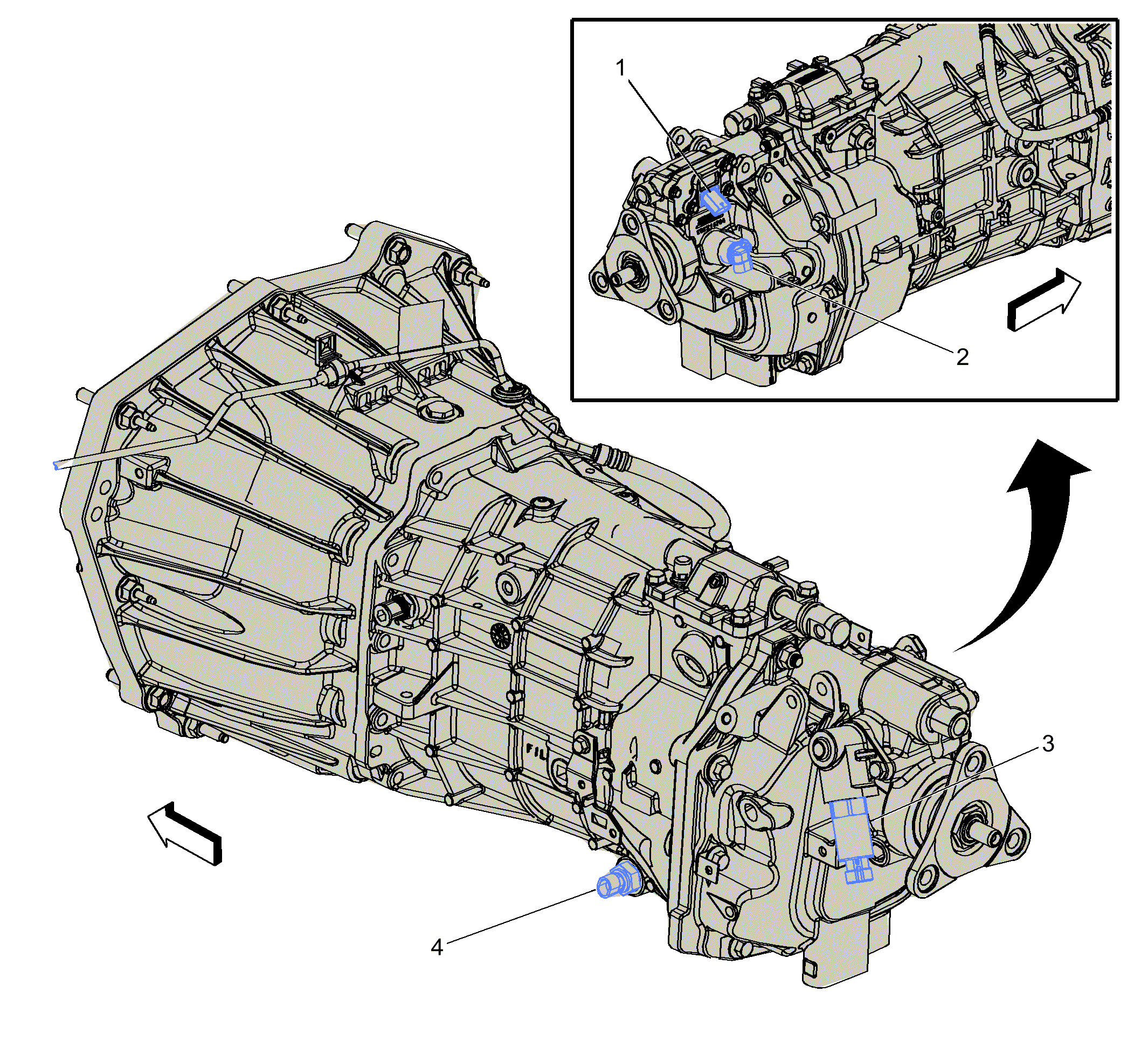

Manual Transmission Components (MG9)
| Items |
|---|
| 1. B227 Gear Position Sensor (MG9) B227 Gear Position Sensor |
| 2. B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor (MG9) |
| 3. M47 Reverse Inhibit Solenoid Actuator (MG9) M47 Reverse Inhibit Solenoid Actuator |
| 4. B173 Manual Transmission Fluid Temperature Sensor (M3L/MG9) B173 Manual Transmission Fluid Temperature Sensor ((LCV/LD4/LTG)+(M3L/MG9))B173 Manual Transmission Fluid Temperature Sensor (LF4+(M3L/MG9)) |
