Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

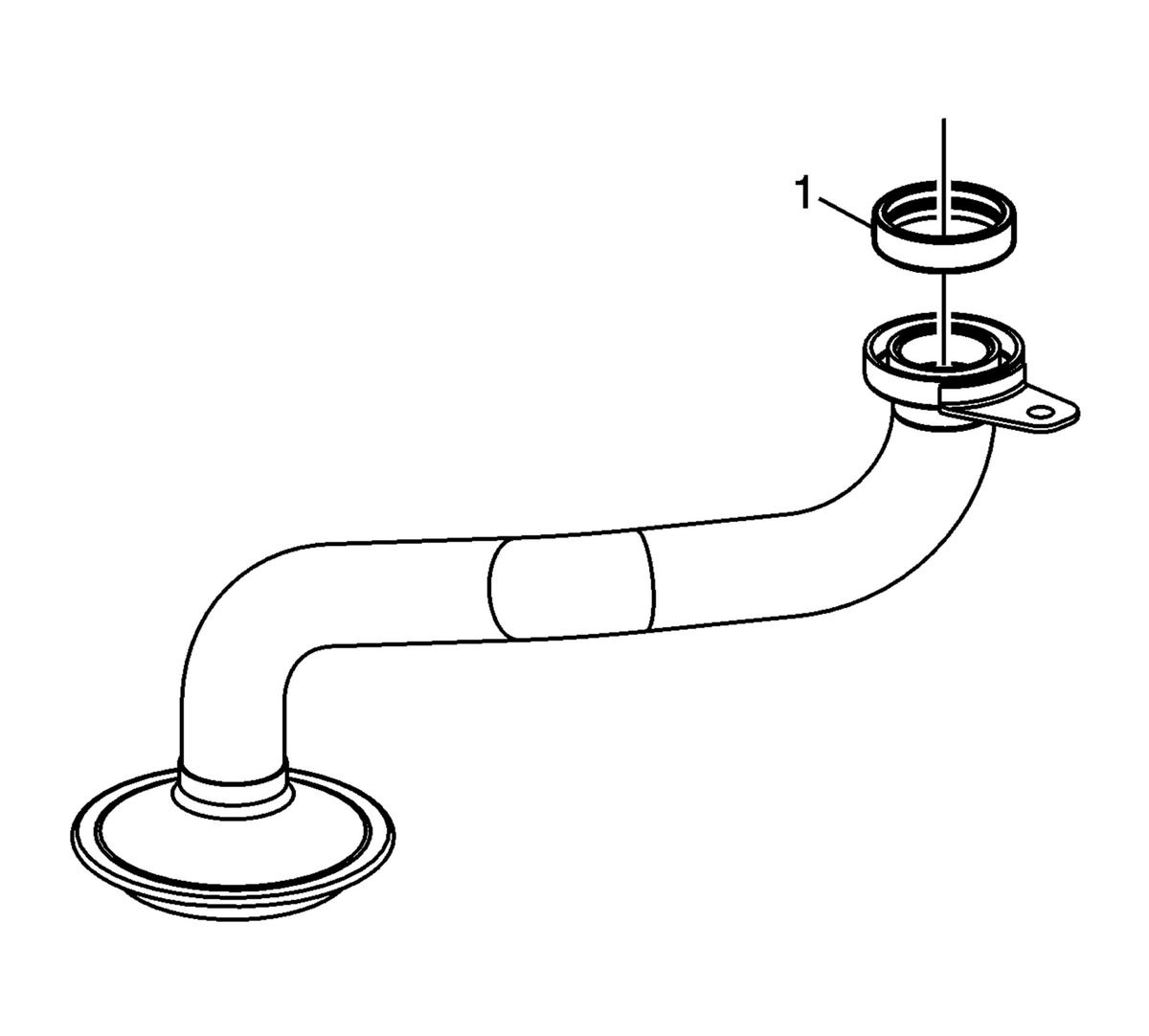

    Fig 1: Oil Suction Pipe Seal
    GM2741453Courtesy of GENERAL MOTORS COMPANY
  1. Install the NEW oil suction pipe seal (1).

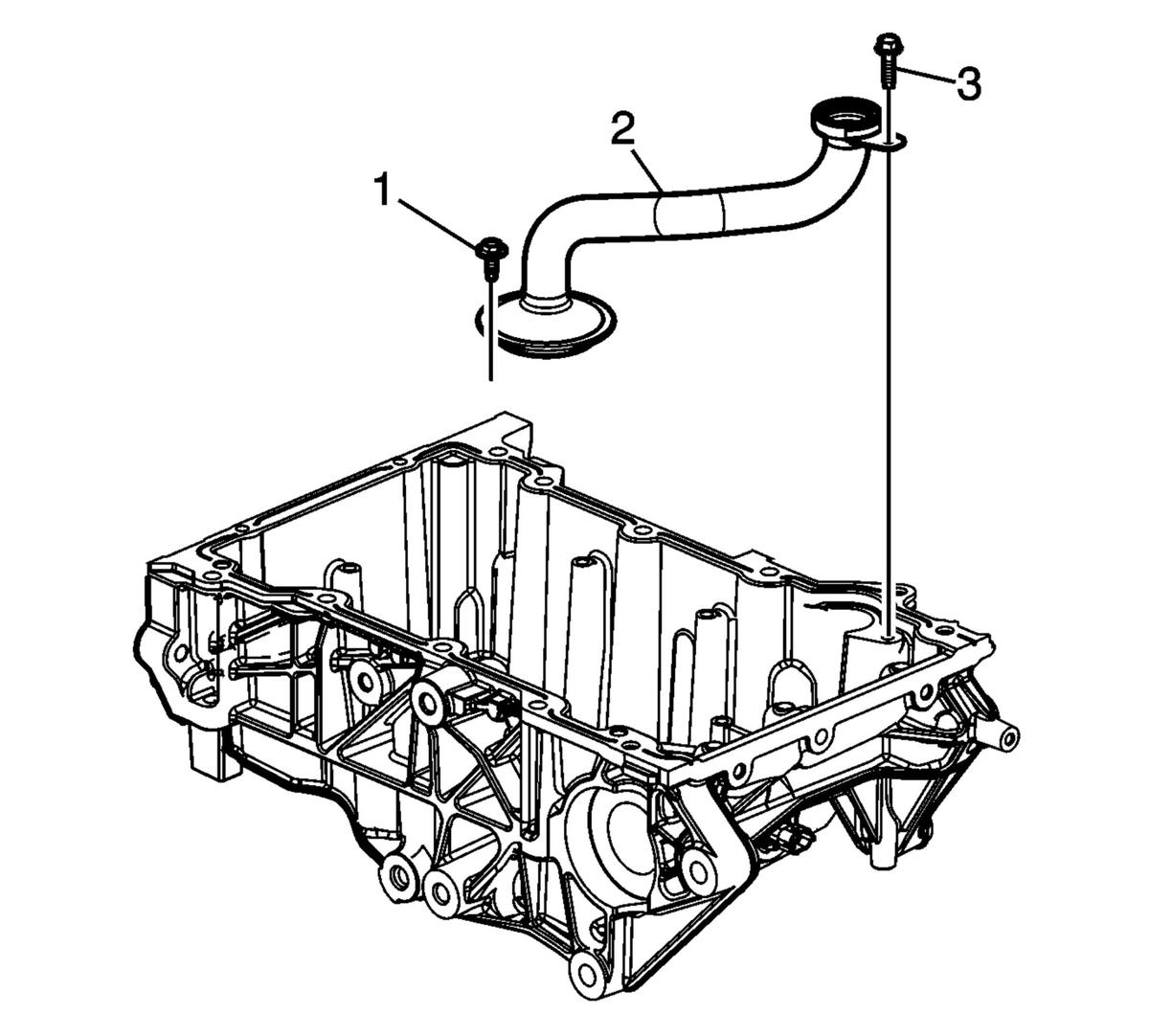

    2. Fig 2: Oil Suction Pipe
    GM2741452Courtesy of GENERAL MOTORS COMPANY
  2. Install the oil suction pipe (2).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the oil suction pipe retaining bolts (1) and tighten to 10 N.m (89 lb in).
  4. Install the oil suction pipe bolts (3) and tighten to 10 N.m (89 lb in).

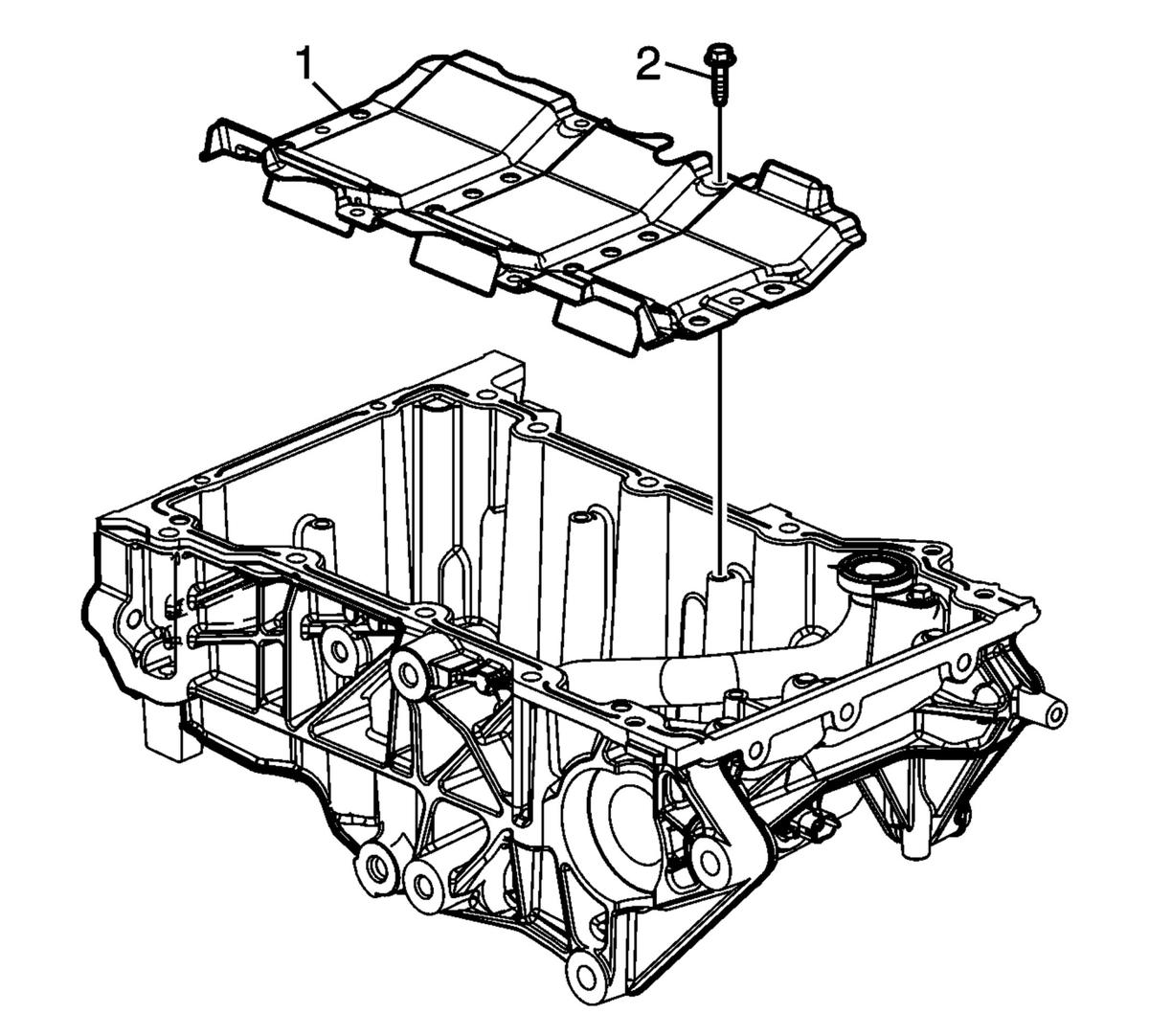

    5. Fig 3: Oil Pan Scraper
    GM2741451Courtesy of GENERAL MOTORS COMPANY
  5. Install the oil pan scraper (1).
  6. Install the oil pan scraper bolts (2) and tighten to 10 N.m (89 lb in).
  7. Install the oil pan. Refer to Oil Pan Replacement (LF4) .
