Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Front Differential Carrier Assembly - Front Differential Carrier Assembly Replacement (LGX or LF4)
  2. Drain the engine oil. Engine Oil and Oil Filter Replacement (LGX, AWD)

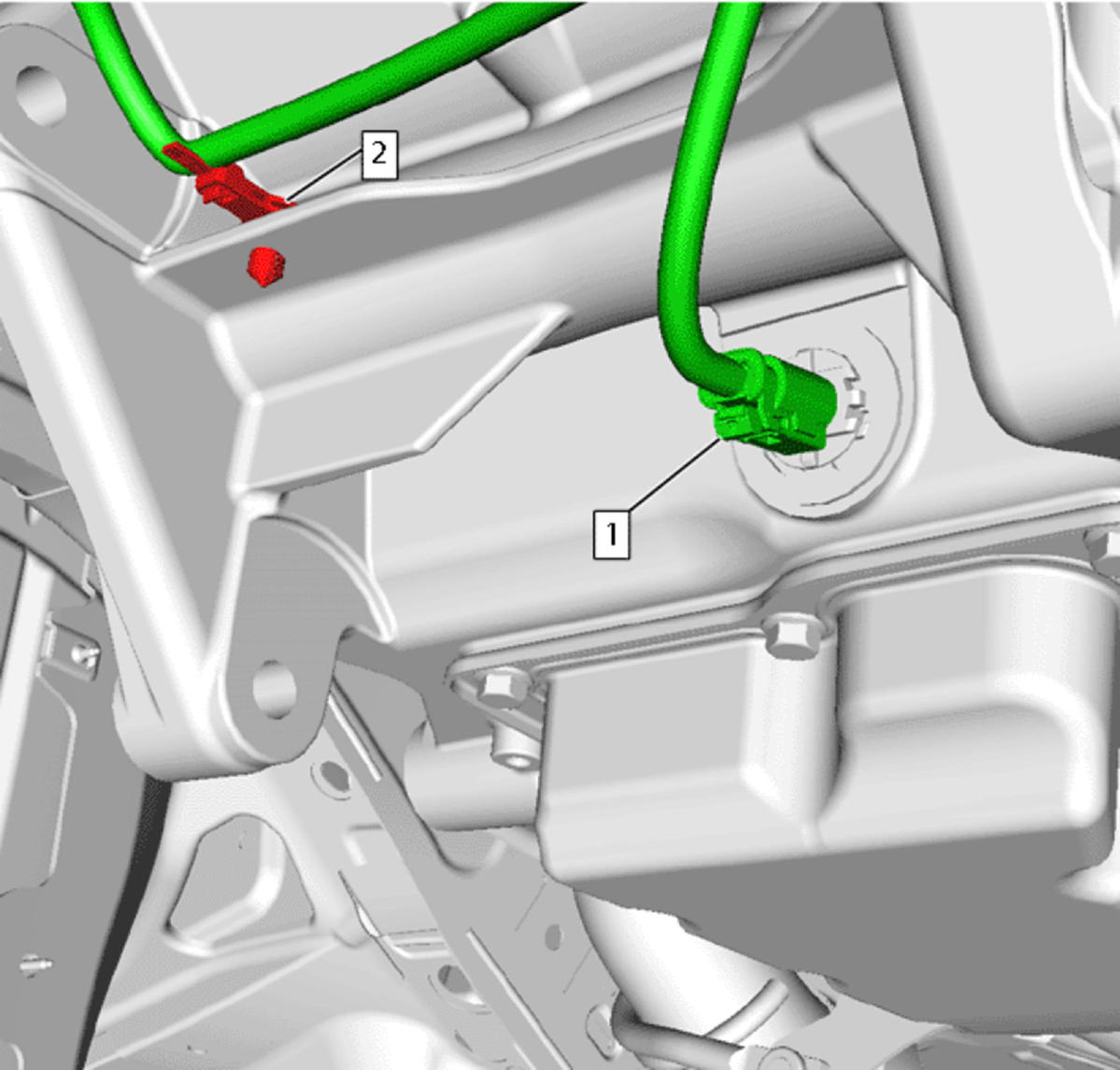

    3. Fig 1: Engine Oil Level Indicator Switch
    GM4165805Courtesy of GENERAL MOTORS COMPANY
  3. Engine Oil Level Indicator Switch (1) »Disconnect the electrical connector.
  4. Disconnect Engine Wiring Harness Retainer (2)
  5. Remove Oil Level Indicator Tube - Oil Level Indicator Tube Replacement (LGX)
  6. Remove Engine Mount Bracket -, and Engine Mount Bracket Replacement - Right Side (LGX - AWD)
  7. Remove Catalytic Converter Brace Bracket- Catalytic Converter Brace Bracket Replacement (LGX)
    8. Fig 2: Lower Transmission To Engine Bolts
    GM4165892Courtesy of GENERAL MOTORS COMPANY
  8. Remove the lower transmission to engine bolts.(1)
    9. Fig 3: Oil Pan (LGX/AWD)
    GM4042237Courtesy of GENERAL MOTORS COMPANY
  9. Remove Oil Pan Bolt (1-4)
  10. Remove Oil Pan (5)
  11. Remove Oil Pan Cleaning and Inspection (LGX AWD)
  12. Disassemble the oil pan as necessary. Oil Pan Disassemble (LGX AWD)
