Oil Level Indicator Tube Replacement (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

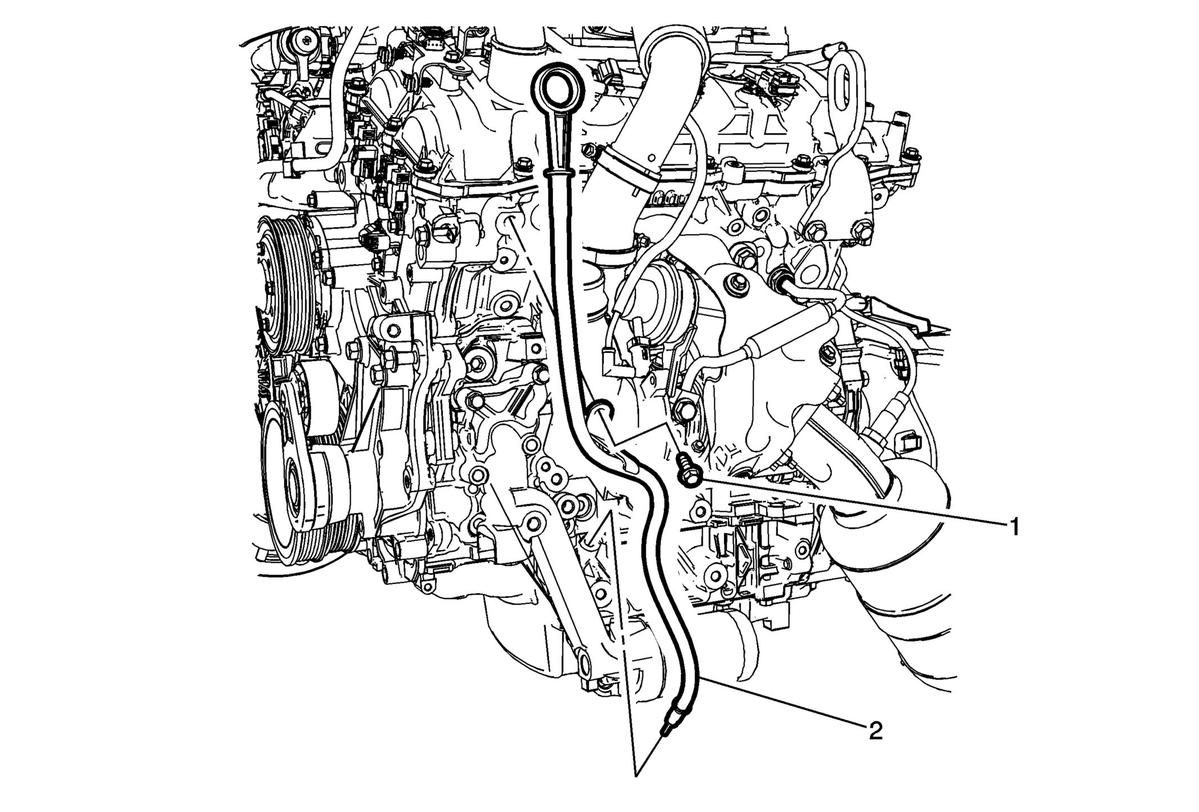

Fig 1: Oil Level Indicator Tube (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LF4) . Air Cleaner Assembly Replacement (LF4) Remove the oil level indicator. Detach wire harness retainer from the oil level indicator tube.
1	Oil Level Indicator Tube Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (7 lb ft)
2	Oil Level Indicator Tube NOTE: Ensure that the oil level indicator tube is fully seated prior to tightening the fastener.

Callout

Component Name

Preliminary Procedures

Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LF4) .
Air Cleaner Assembly Replacement (LF4)
Remove the oil level indicator.
Detach wire harness retainer from the oil level indicator tube.

Oil Level Indicator Tube Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (7 lb ft)

Oil Level Indicator Tube

NOTE:

Ensure that the oil level indicator tube is fully seated prior to tightening the fastener.
