Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
- Install NEW Lower Oil Pan - Oil Pan Assemble (LF4)Oil Pan Assemble (LGX RWD)

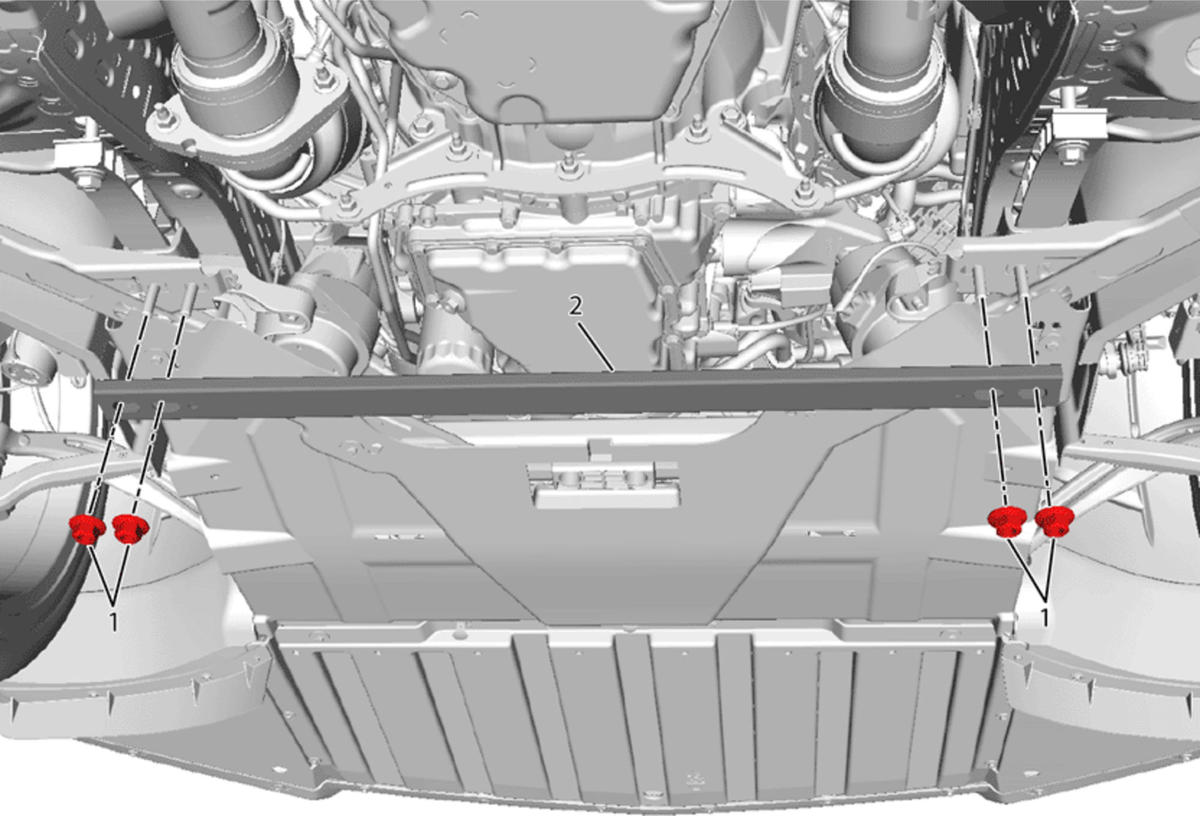

- Install Front Crossmember Brace (2)
- Front Crossmember Brace Nut (1) Tighten 50 N.m (37 lb ft)
- Fill the engine oil to the proper level with NEW engine oil. Approximate Fluid Capacities , and Adhesives, Fluids, Lubricants, and Sealers (LF4)Adhesives, Fluids, Lubricants, and Sealers (LGX)
- Start the engine and inspect for leaks.
