Engine Support Fixture (LGX)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

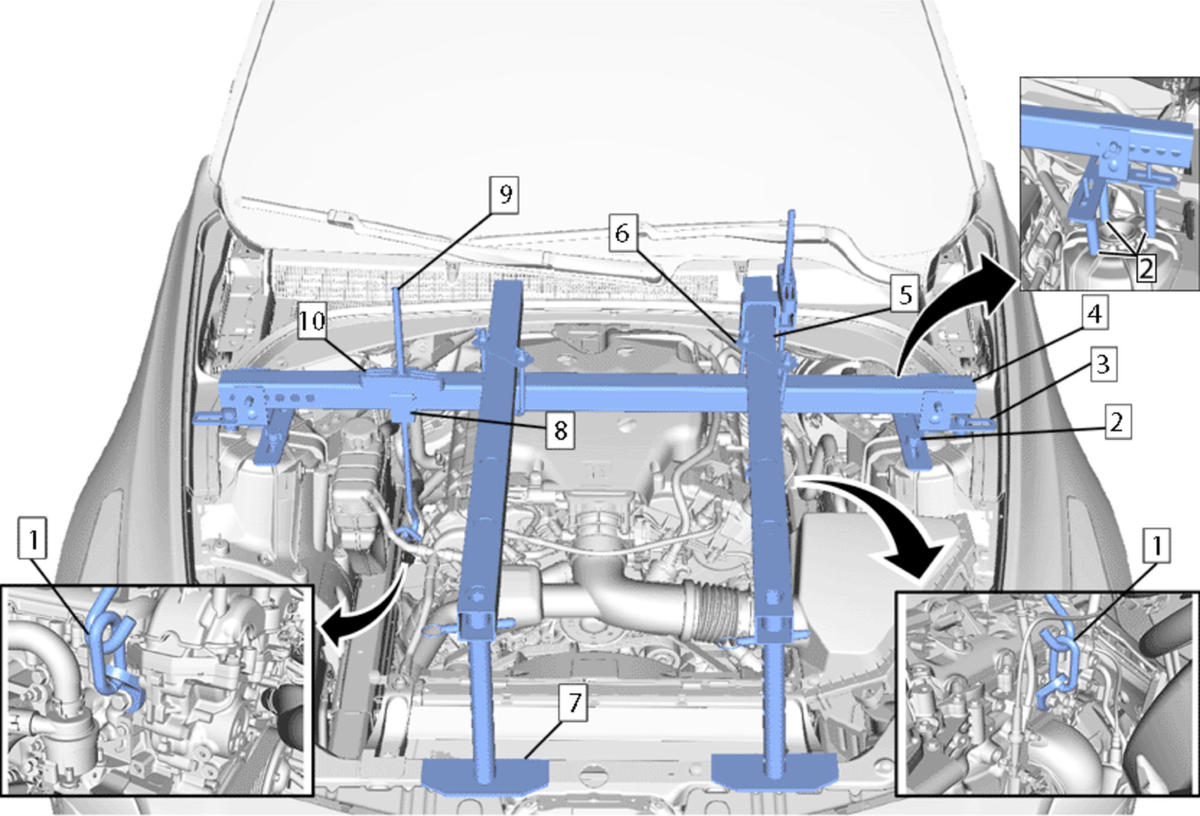

| Callout | Component Name |
|---|---|
|
Preliminary Procedures
Special Tools
|
|
| 1 | EN-36857
Engine Lift Bracket (Qty: 2) Procedure
CAUTION:
Refer to Fastener Caution . Use a grade 10.9 bolt to install a EN-36857 bracket to the right and left cylinder head in the location shown. Tighten the bolt to 65 N.m (48 lb ft). |
| 2 | EN-28467-33
Strut Tower To Support Beam Adapters (Qty: 6) Procedure Thread the strut tower adapters to the strut towers. |
| 3 | EN-28467-5A
Engine Support Beam Adapters (Qty: 2) Procedure Place the engine support beam adapters on the strut towers and secure using wing nuts. |
| 4 | EN-28467-B
Main Support Beam Procedure Install main support beam through engine support beam adapters and pin in place. |
| 5 | EN-36462-1A
Radiator Tube Shelf Assembly (Qty: 2) Procedure Place radiator shelf tubes on top of main support beam. |
| 6 | EN-28467-1A
Cross Bracket (Qty: 2) Procedure Loosely install cross bracket to retain radiator shelf tube to main support beam. Tighten cross bracket after front support assembly is in place. |
| 7 | EN-28467-4A
Front Support Assembly (Qty: 2) Procedure Place front support assembly through radiator tube shelf and pin at proper height. |
| 8 | EN-28467-6A Bracket Assembly (Qty: 2) |
| 9 | EN-28467-8A Hook Assembly (Qty: 2) |
| 10 | EN-28467-34 Lift Hook Wing Nut and Washer (Qty: 2) |
