Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

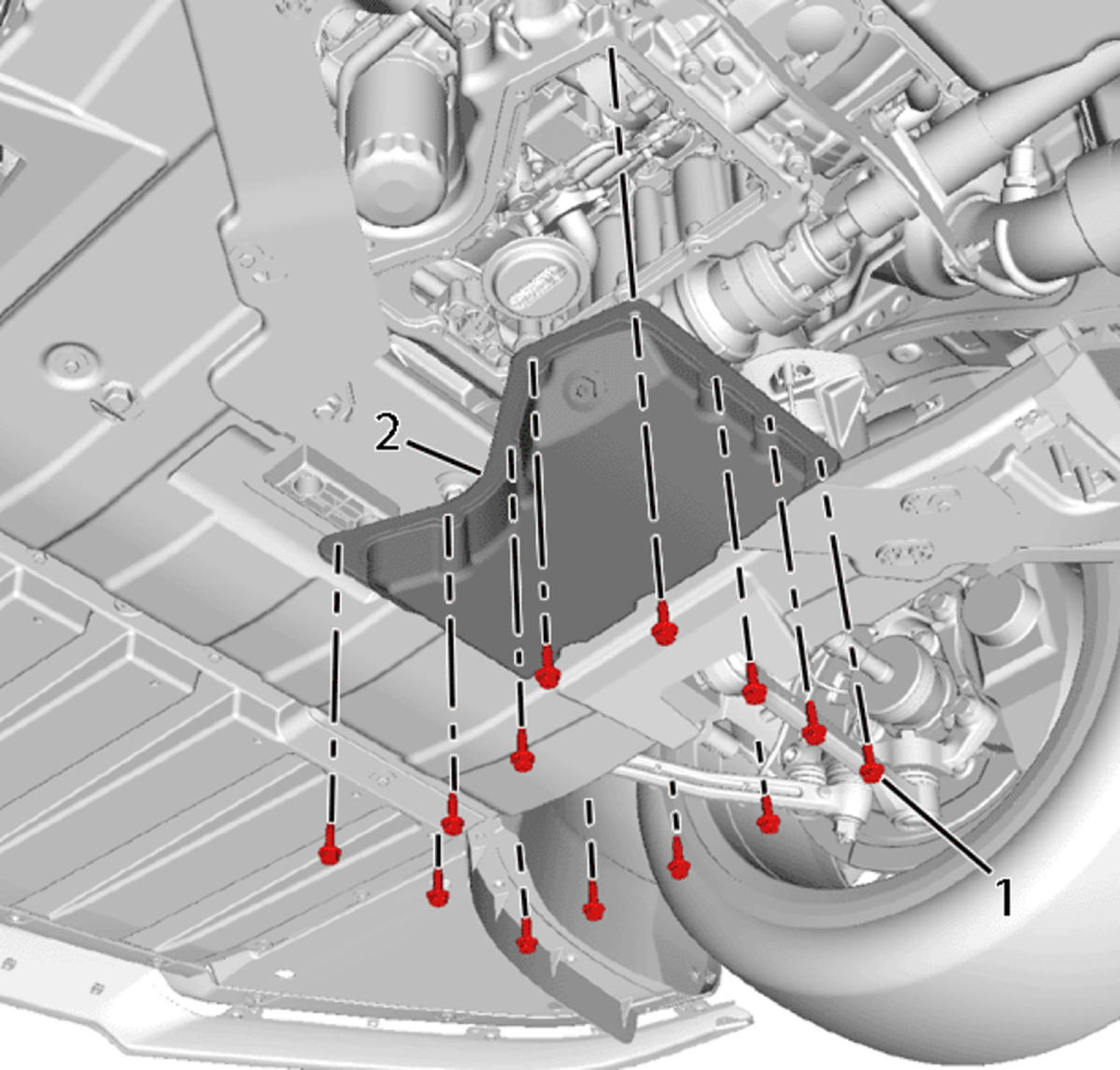

    Fig 1: Lower Oil Pan Bolt
    GM4163246Courtesy of GENERAL MOTORS COMPANY
  1. Remove Lower Oil Pan (2) - Lower Oil Pan Replacement (AWD)

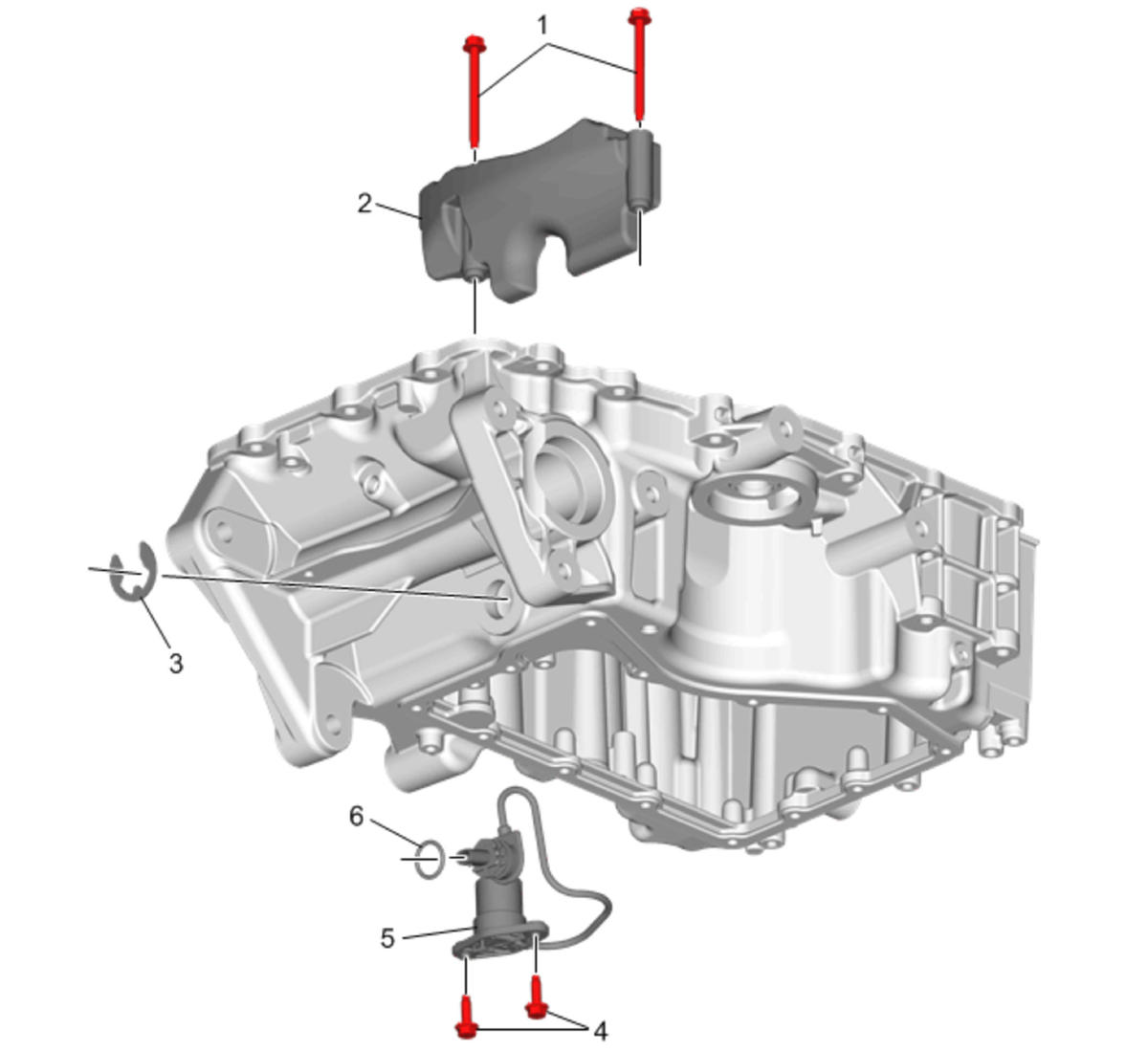

    2. Fig 2: Oil Pan Baffle and Engine Oil Level Indicator Switch Disassemble
    GM4042240Courtesy of GENERAL MOTORS COMPANY
  2. Remove Engine Oil Level Indicator (5) - Oil Pan Disassemble (LGX AWD)
