Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

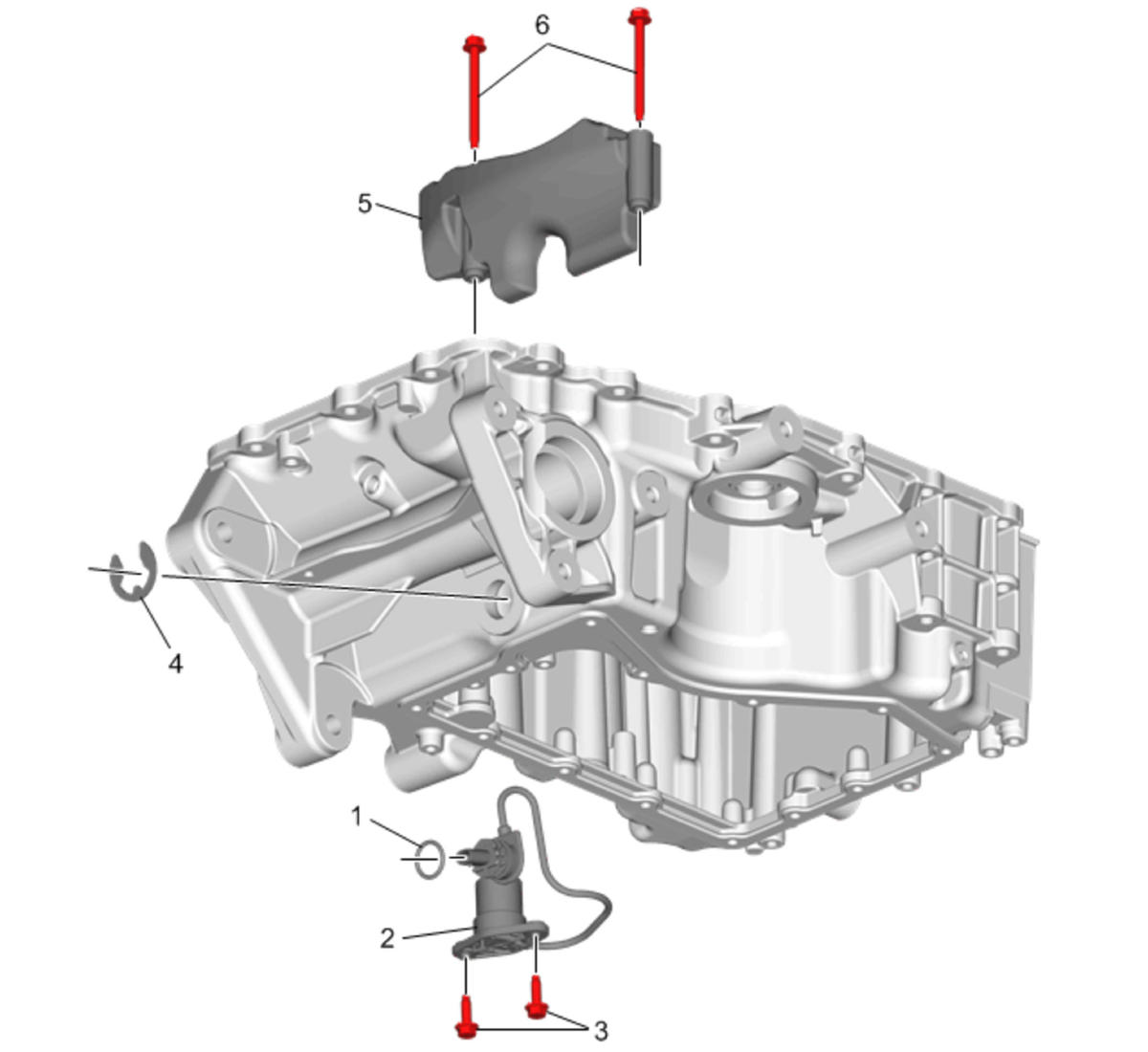

    Fig 1: Oil Pan Baffle and Engine Oil Level Indicator Switch Assemble
    GM4042241Courtesy of GENERAL MOTORS COMPANY
  1. Install Engine Oil Level Indicator (2) - Oil Pan Assemble (LGX AWD)

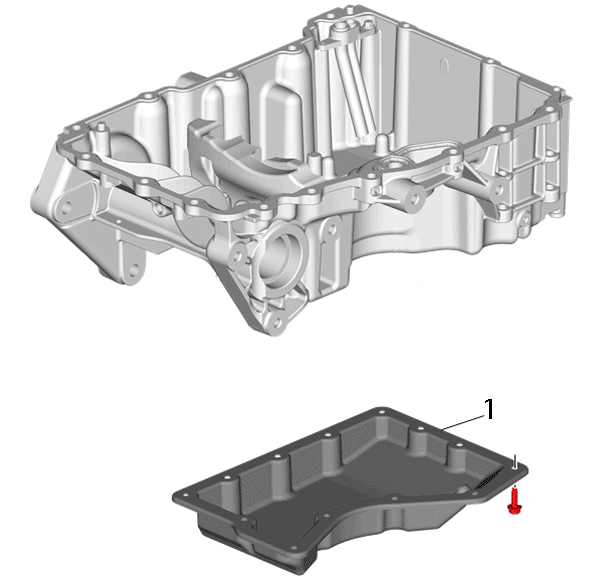

    2. Fig 2: Lower Oil Pan
    GM4164307Courtesy of GENERAL MOTORS COMPANY
  2. Install Lower Oil Pan (1) - Oil Pan Assemble (LGX AWD)
