Engine Mount Vacuum Valve Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

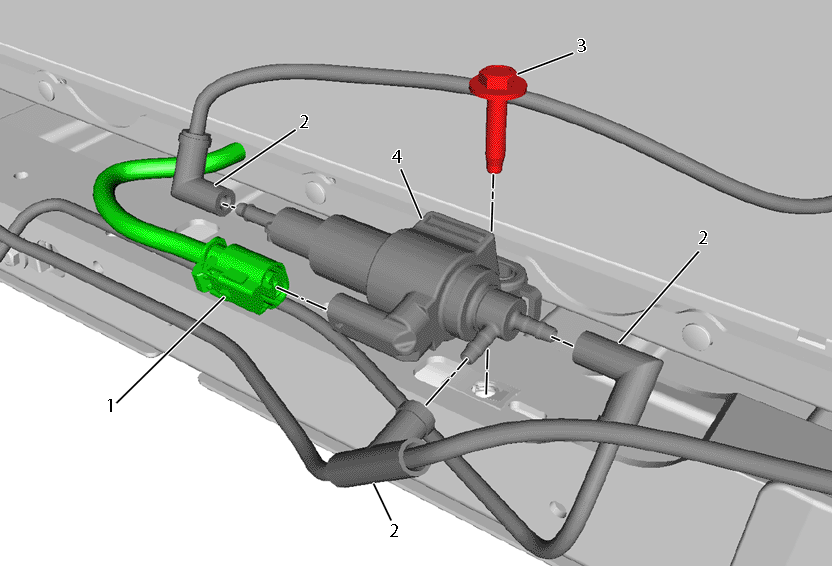

| Callout | Component Name |
|---|---|
| 1 | Engine Mount Vacuum Valve Electrical Connector Procedure Disconnect the electrical connector from the engine mount vacuum valve. |
| 2 | Engine Mount Vacuum Valve Vacuum Lines Procedure Disconnect the vacuum lines from the engine mount vacuum valve. |
| 3 | Engine Mount Vacuum Valve Fastener
CAUTION:
Refer to Fastener Caution . Tighten 9 (N.m 80 lb in) |
| 4 | Engine Mount Vacuum Valve |
