Engine Mount Vacuum Hose Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

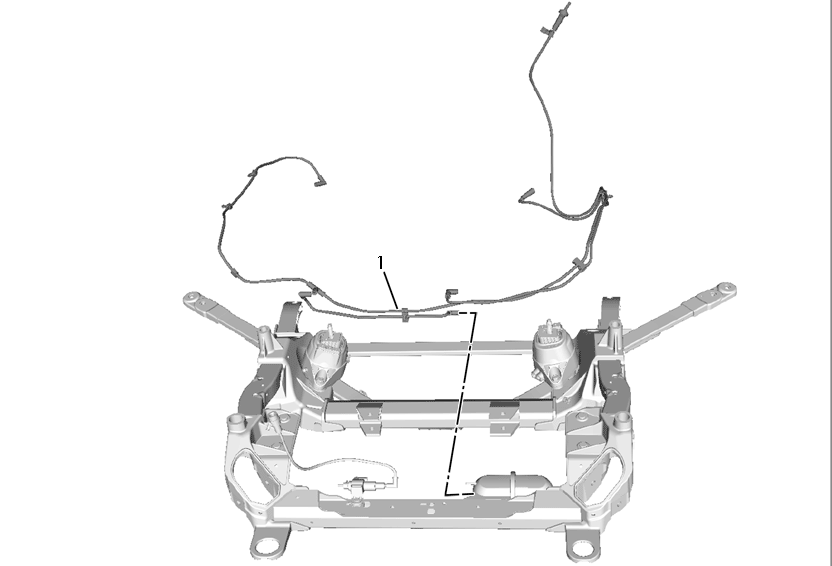

Fig 1: Engine Mount Vacuum Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the drivetrain and front suspension cradle. Refer to Drivetrain and Front Suspension Cradle Replacement (LF4)Drivetrain and Front Suspension Cradle Replacement (LGX, LTG) .
1	Engine Mount Vacuum Hose Procedure Disconnect the engine mount vacuum hoses from the engine mounts, tank and valve. Disconnect the engine mount vacuum hose retainers at the frame. Remove the engine mount vacuum hose assembly from the frame.

Callout

Component Name

Preliminary Procedure
Remove the drivetrain and front suspension cradle. Refer to Drivetrain and Front Suspension Cradle Replacement (LF4)Drivetrain and Front Suspension Cradle Replacement (LGX, LTG) .

Engine Mount Vacuum Hose

Procedure

Disconnect the engine mount vacuum hoses from the engine mounts, tank and valve.
Disconnect the engine mount vacuum hose retainers at the frame.
Remove the engine mount vacuum hose assembly from the frame.
