Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Drive Belt. Drive Belt Replacement (LGX)
  2. Remove Starter. Starter Replacement (LGX)
    3. Fig 1: Flywheel Holder
    GM4117498Courtesy of GENERAL MOTORS COMPANY
  3. Install the EN-46106  tool (1) through the starter mounting hole.

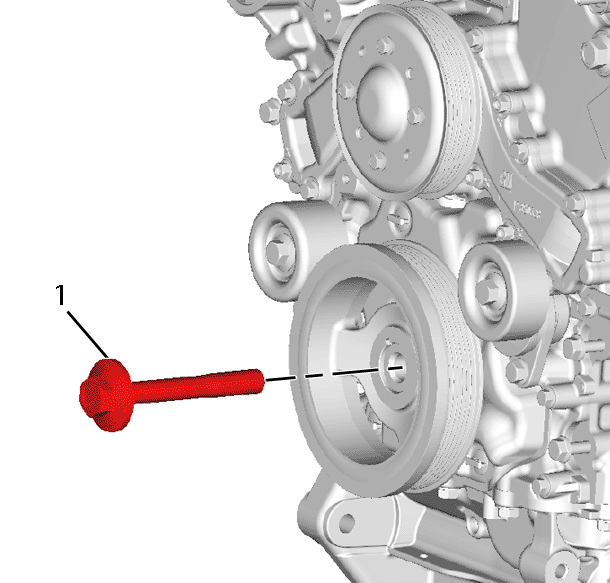

    4. Fig 2: Crankshaft Balancer Bolt
    GM4117495Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not discard the crankshaft balancer bolt. The balancer bolt will be used during the balancer installation.

  4. Remove the crankshaft balancer bolt (1).
    5. Fig 3: Crankshaft Balancer Remover
    GM4501965Courtesy of GENERAL MOTORS COMPANY
  5. Install the EN-44226-5  button (1) in the nose of the crankshaft.
  6. Install the EN-41816  remover (2) in order to remove the crankshaft balancer.
  7. Tighten the center bolt of the EN-41816  remover (2) in order to pull the crankshaft balancer off of the crankshaft.
  8. Remove the EN-41816  remover and EN-44226-5  button from the crankshaft balancer.
