Audible Warnings

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

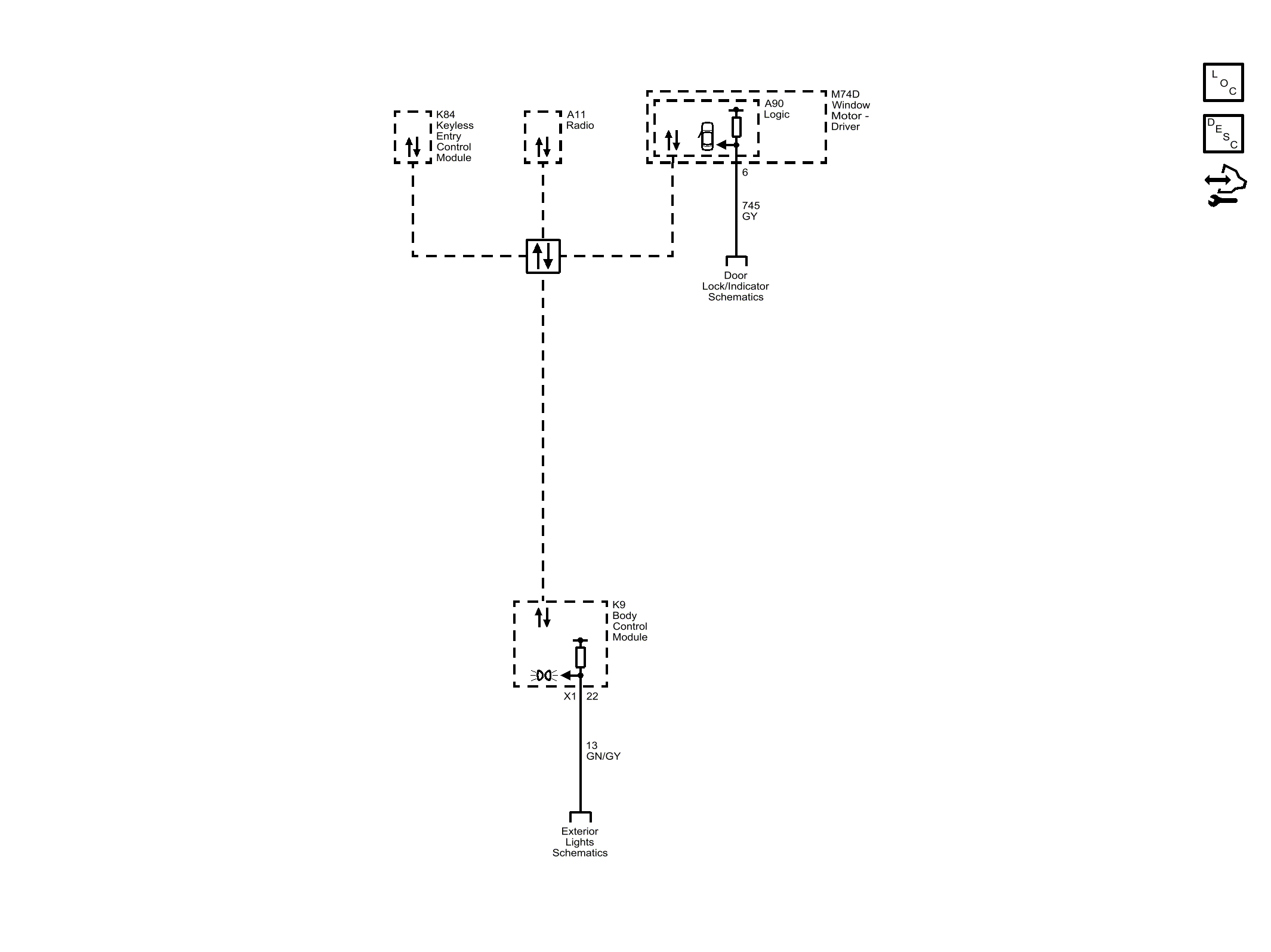

Fig 1: Audible Warnings
GM4050642Courtesy of GENERAL MOTORS COMPANY
