Oil Pan and Components with Oil Cooler
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

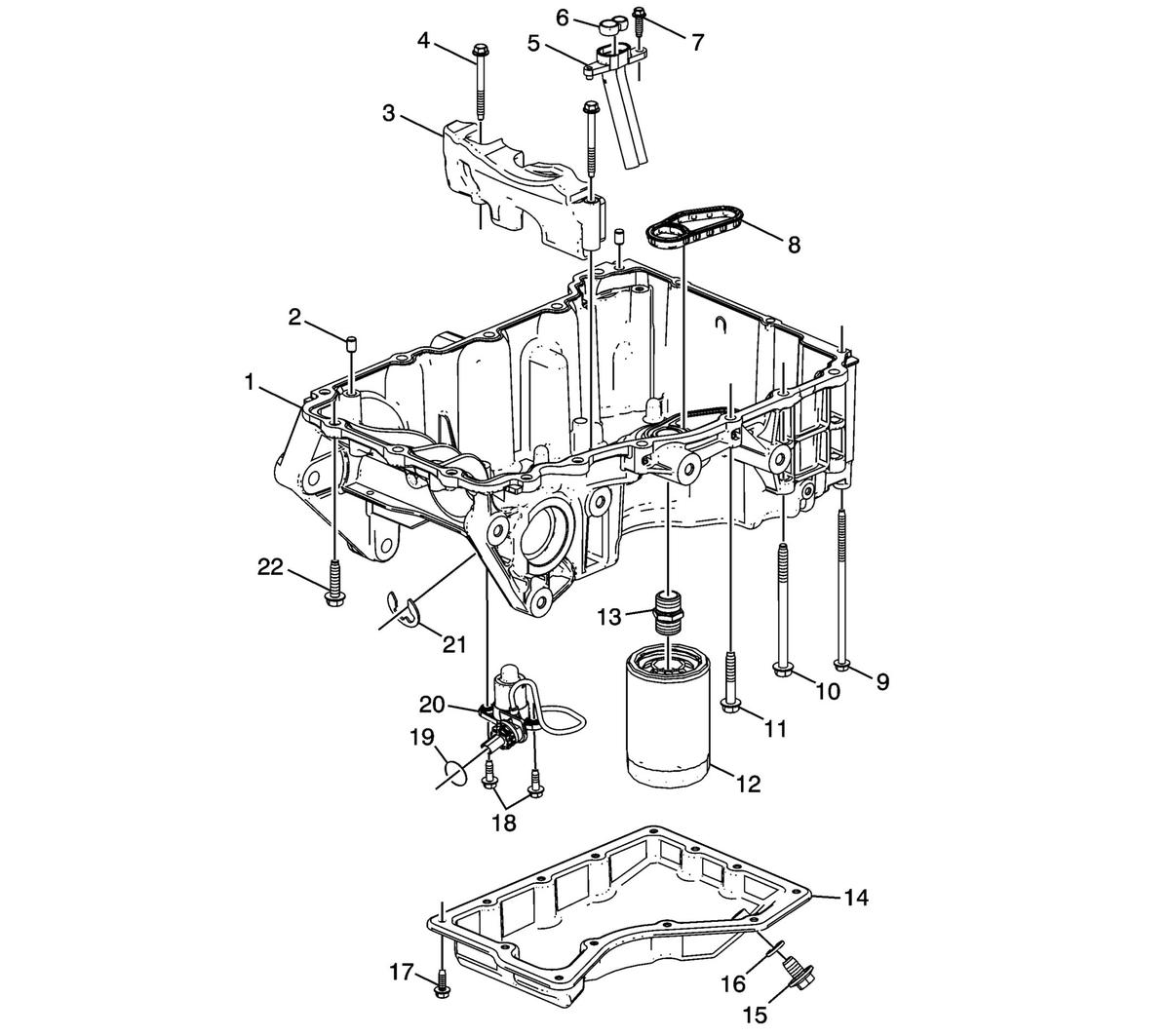

| Callout | Component Name |
|---|---|
| 1 | Oil Pan |
| 2 | Dowel Pin |
| 3 | Oil Pan Baffle |
| 4 | Oil Pan Baffle Bolt |
| 5 | Positive Crankcase Ventilation Oil Separator Drain |
| 6 | Positive Crankcase Ventilation Oil Separator Drain Seal |
| 7 | Positive Crankcase Ventilation Oil Separator Drain Bolt |
| 8 | Oil Pan High Pressure Port Seal |
| 9 | Oil Pan Bolt |
| 10 | Oil Pan Bolt |
| 11 | Oil Pan Bolt |
| 12 | Oil Filter |
| 13 | Oil Filter Adapter Fitting |
| 14 | Lower Oil Pan |
| 15 | Oil Pan Drain Plug |
| 16 | Oil Pan Drain Plug Seal |
| 17 | Lower Oil Pan Bolt |
| 18 | Engine Oil Level Indicator Switch Bolt |
| 19 | Engine Oil Level Indicator Switch O-Ring Seal |
| 20 | Engine Oil Level Indicator Switch |
| 21 | Engine Oil Level Switch Clip |
| 22 | Oil Pan Bolt |
