Turbocharger and Components (Right Side)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

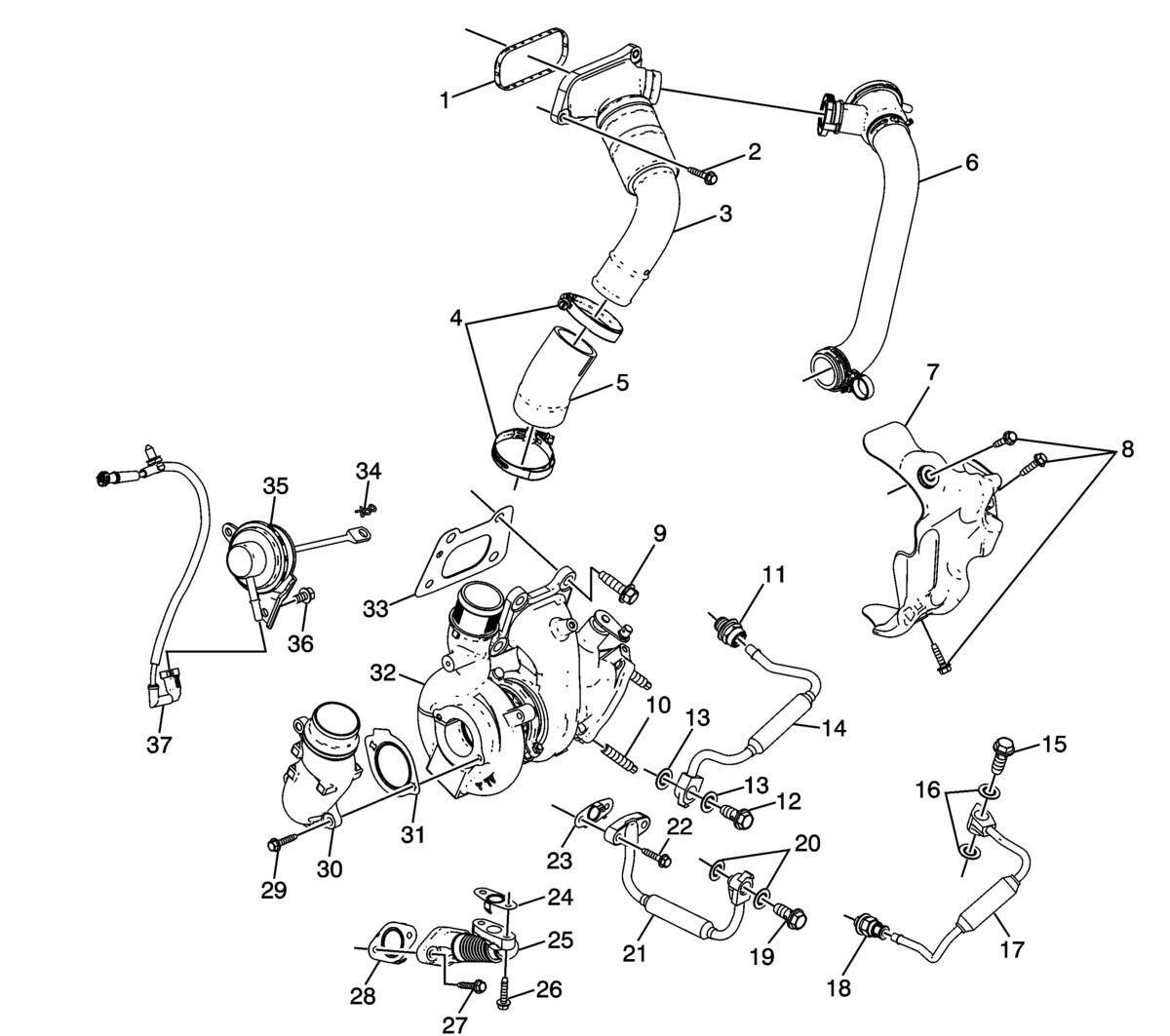

Fig 1: Turbocharger and Components (Right Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Charge Air Cooler Inlet Air Tube Seal
2	Charge Air Cooler Inlet Air Tube Bolt
3	Charge Air Cooler Inlet Air Tube Assembly
4	Charge Air Cooler Inlet Air Hose Clamps
5	Charge Air Cooler Inlet Air Hose
6	Charge Air Bypass Valve Assembly
7	Turbocharger Heat Shield
8	Turbocharger Heat Shield Bolt
9	Turbocharger Bolt
10	Exhaust Manifold Pipe Stud
11	Turbocharger Coolant Return Pipe Fitting
12	Turbocharger Coolant Return Pipe Bolt
13	Turbocharger Coolant Return Pipe Gaskets
14	Turbocharger Coolant Return Pipe
15	Turbocharger Oil Feed Pipe
16	Turbocharger Oil Feed Pipe Bolt
17	Turbocharger Oil Feed Pipe Gaskets
18	Turbocharger Oil Feed Pipe Fitting
19	Turbocharger Coolant Feed Pipe Bolt
20	Turbocharger Coolant Feed Pipe Bolt
21	Turbocharger Coolant Feed Pipe
22	Turbocharger Coolant Feed Pipe Bolts to Block
23	Turbocharger Coolant Feed Pipe Gasket to Block
24	Turbocharger Oil Return Pipe Gasket
25	Turbocharger Oil Return Pipe
26	Turbocharger Oil Return Pipe Bolt
27	Turbocharger Oil Return Pipe to Block Bolt
28	Turbocharger Oil Return Pipe to Block Gasket
29	Turbocharger Air Inlet Adapter Bolts
30	Turbocharger Air Inlet Adapter
31	Turbocharger Air Inlet Adapter Gasket
32	Turbocharger Assembly - Right Side
33	Turbocharger Gasket
34	Turbocharger Wastegate Actuator Arm Retainer
35	Turbocharger Wastegate Actuator
36	Turbocharger Wastegate Actuator Bolts
37	Turbocharger Wastegate Actuator Vacuum Tube
