Turbocharger and Components (Left Side)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

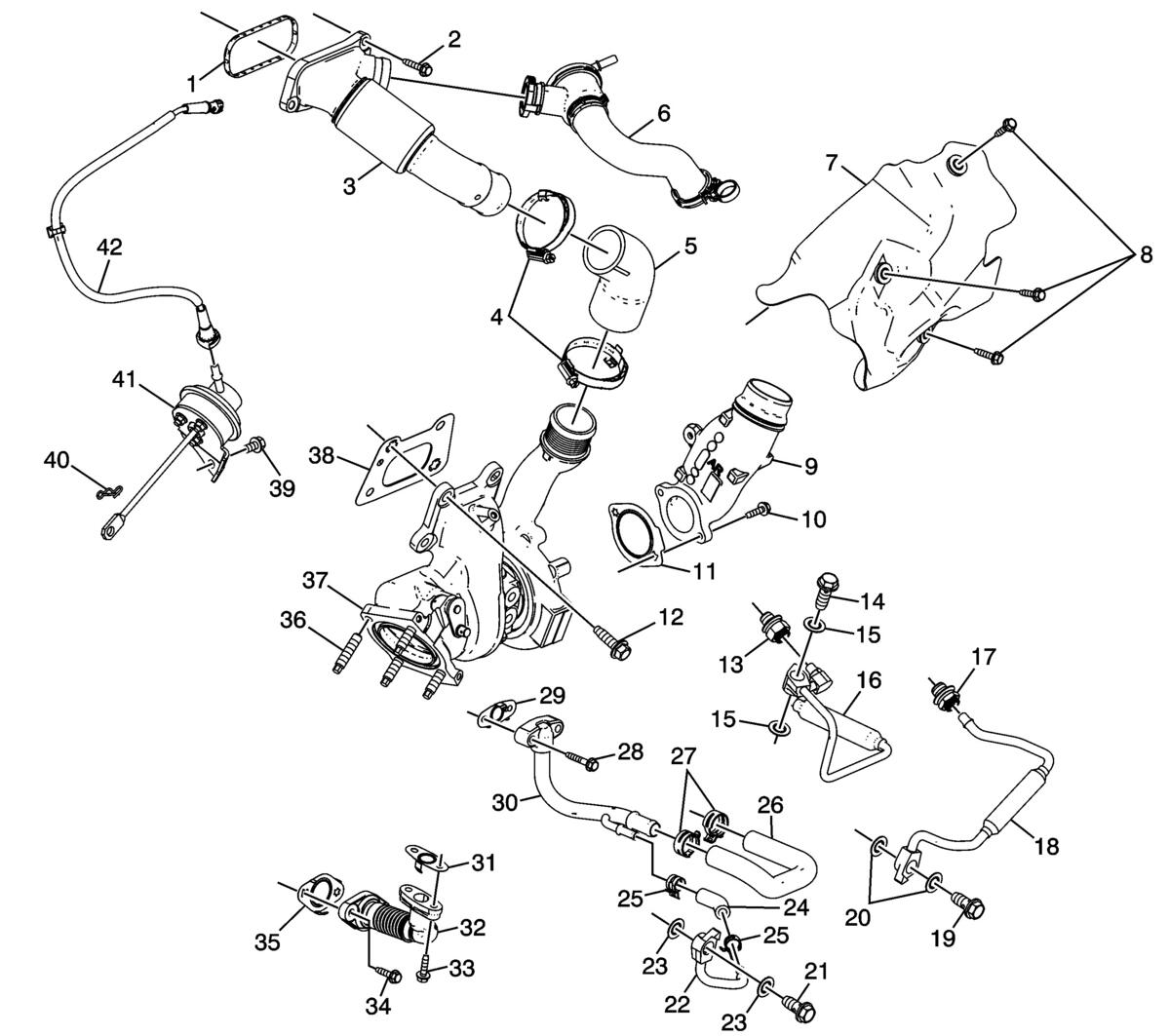

Fig 1: Turbocharger and Components (Left Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Charge Air Cooler Inlet Air Tube Seal
2	Charge Air Cooler Inlet Air Tube Bolt
3	Charge Air Cooler Inlet Air Tube
4	Charge Air Cooler Inlet Air Hose Clamps
5	Charge Air Cooler Inlet Air Hose
6	Charge Air Bypass Valve
7	Turbocharger Heat Shield
8	Turbocharger Heat Shield Bolt
9	Turbocharger Air Inlet Adapter
10	Turbocharger Air Inlet Adapter Bolts
11	Turbocharger Air Inlet Adapter Seal
12	Turbocharger Bolt
13	Turbocharger Oil Feed Pipe Fitting
14	Turbocharger Oil Feed Pipe Bolt
15	Turbocharger Oil Feed Pipe Gaskets
16	Turbocharger Oil Feed Pipe
17	Turbocharger Coolant Return Pipe Fitting
18	Turbocharger Coolant Return Pipe
19	Turbocharger Coolant Return Pipe Bolt
20	Turbocharger Coolant Return Pipe Gaskets
21	Turbocharger Coolant Feed Pipe Bolt
22	Turbocharger Coolant Feed Pipe Gaskets
23	Turbocharger Coolant Feed Pipe
24	Turbocharger Coolant Feed Pipe Clamps
25	Turbocharger Coolant Feed Pipe Hose
26	Turbocharger Coolant Feed Pipe Hose
27	Turbocharger Coolant Feed Pipe Clamps
28	Turbocharger Coolant Feed Pipe Bolt
29	Turbocharger Coolant Feed Pipe
30	Turbocharger Coolant Feed Pipe Gasket
31	Turbocharger Oil Return Pipe Gasket
32	Turbocharger Oil Return Pipe
33	Turbocharger Oil Return Pipe Bolt
34	Turbocharger Oil Return Pipe to Block Bolt
35	Turbocharger Oil Return Pipe to Block Gasket
36	Exhaust Manifold Pipe Stud
37	Turbocharger Assembly - Left Side
38	Turbocharger Gasket
39	Turbocharger Wastegate Actuator Bolts
40	Turbocharger Wastegate Actuator Arm Retainer
41	Turbocharger Wastegate Actuator
42	Turbocharger Wastegate Actuator Vacuum Tube
