Oil Pan and Components
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

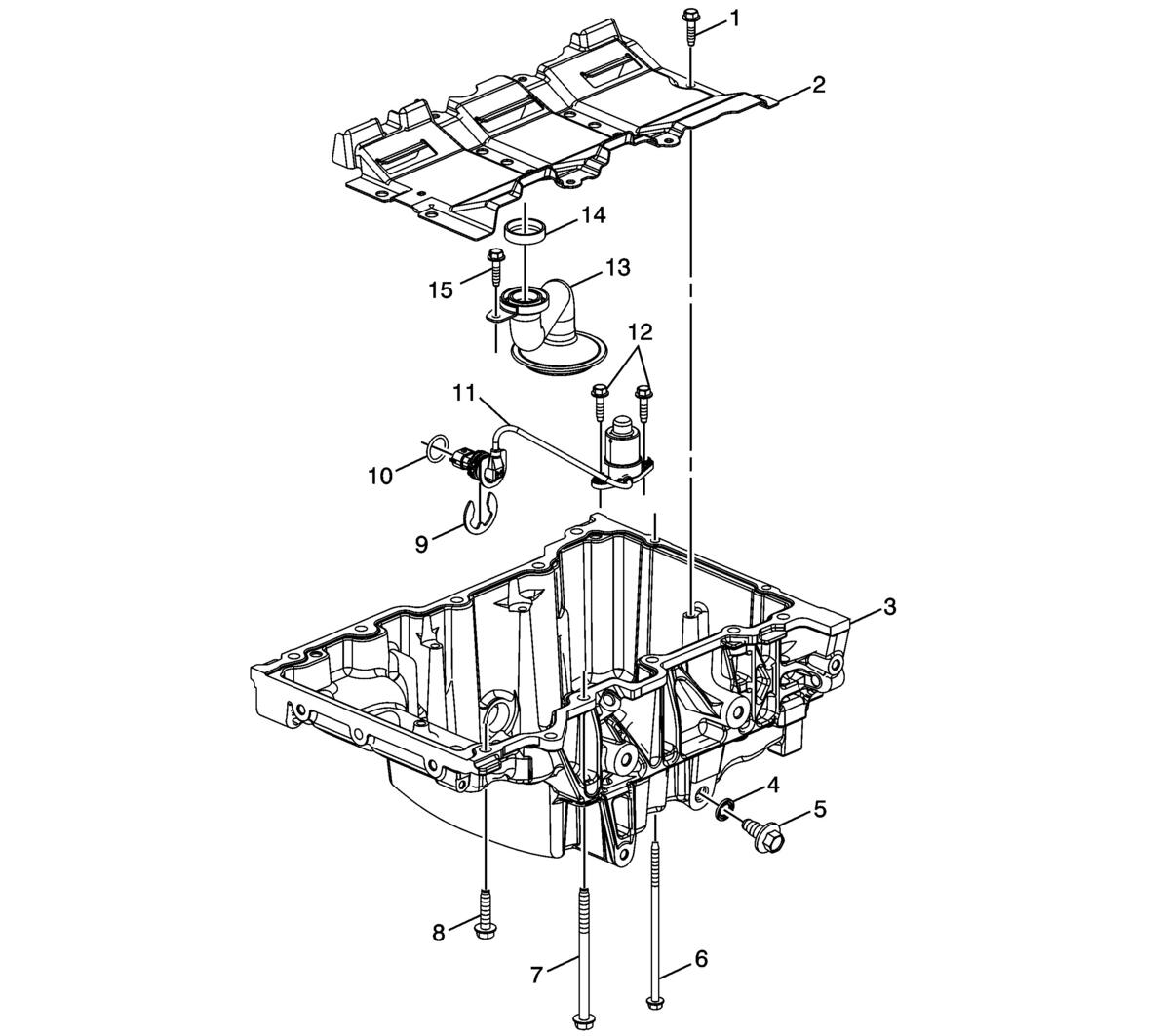

| Callout | Component Name |
|---|---|
| 1 | Crankshaft Oil Deflector Bolt |
| 2 | Crankshaft Oil Deflector |
| 3 | Oil Pan |
| 4 | Oil Pan Drain Plug Seal |
| 5 | Oil Pan Drain Plug |
| 6 | Oil Pan Bolt - Long |
| 7 | Oil Pan Bol |
| 8 | Oil Pan Bolt - Short |
| 9 | Engine Oil Level Indicator Switch Retainer |
| 10 | Engine Oil Level Indicator Switch Seal |
| 11 | Engine Oil Level Indicator Switch Assembly |
| 12 | Engine Oil Level Indicator Switch Bolt |
