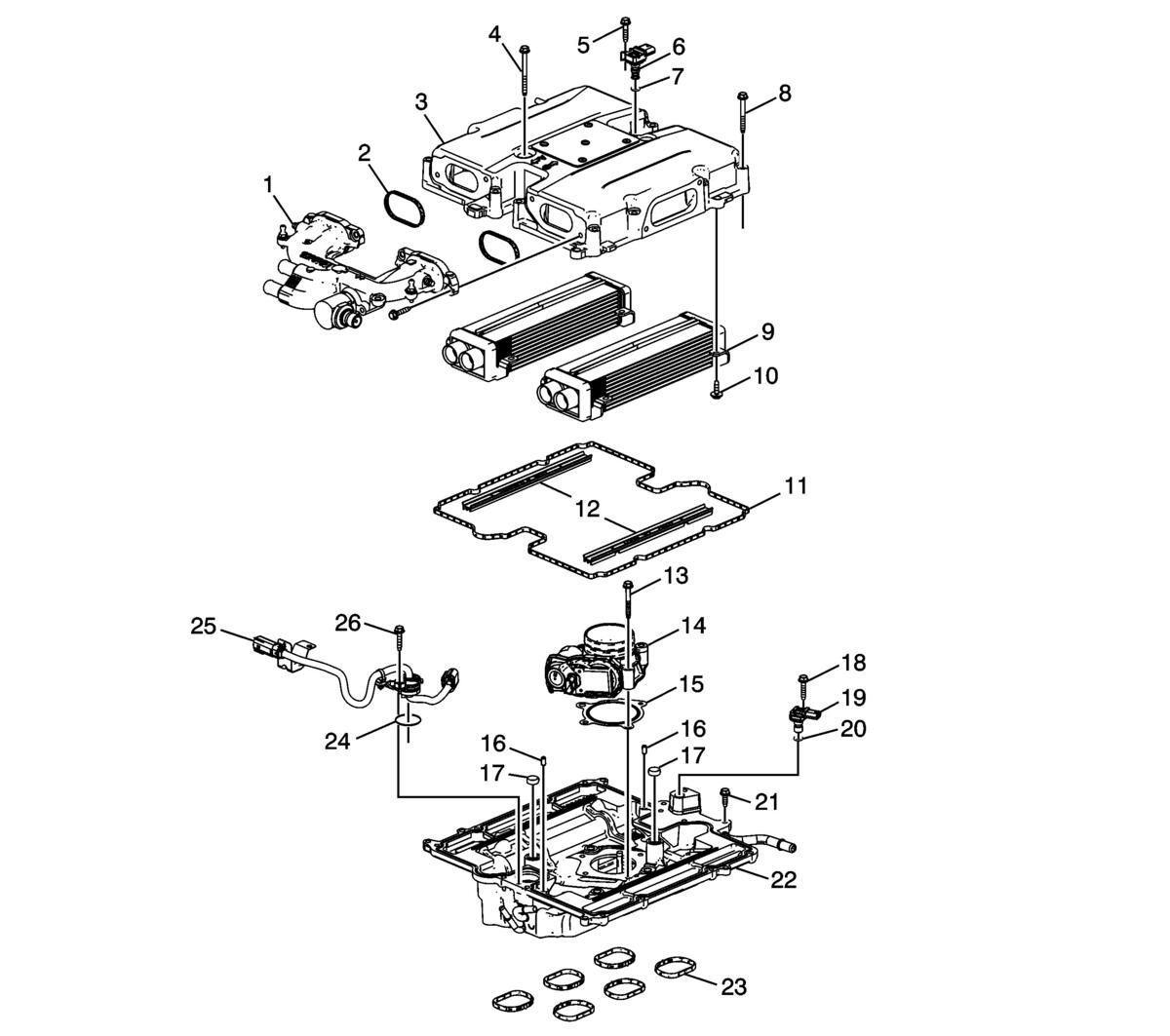

Intake Manifold and Components
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Supercharger Water Manifold |
| 2 | Supercharger Water Manifold Seal |
| 3 | Charge Air Cooler Cover |
| 4 | Charge Air Cooler Bolt |
| 5 | Intake Air Pressure and Temperature Sensor Bolt |
| 6 | Intake Air Pressure and Temperature Sensor |
| 7 | Intake Air Pressure and Temperature Sensor Seal |
| 8 | Charge Air Cooler Cover Bolt |
| 9 | Charge Air Cooler Assembly |
| 10 | Charge Air Cooler Assembly Bolt |
| 11 | Intake Manifold Gasket |
| 12 | Charge Air Cooler Lower Insulator |
| 13 | Throttle Body Bolt |
| 14 | Throttle Body Assembly |
| 15 | Throttle Body Gasket |
| 16 | Dowel Pin |
| 17 | Charge Air Cooler Cover Seal |
| 18 | Map Sensor Bolt |
| 19 | Map Sensor |
| 20 | Map Sensor Seal |
| 21 | Lower Intake Manifold Bolt |
| 22 | Lower Intake Manifold |
| 23 | Lower Intake Manifold Gasket |
| 24 | Throttle Actuator Wire Assembly Seal |
| 25 | Throttle Actuator Wire Assembly |
| 26 | Throttle Actuator Wire Assembly Bolt |
