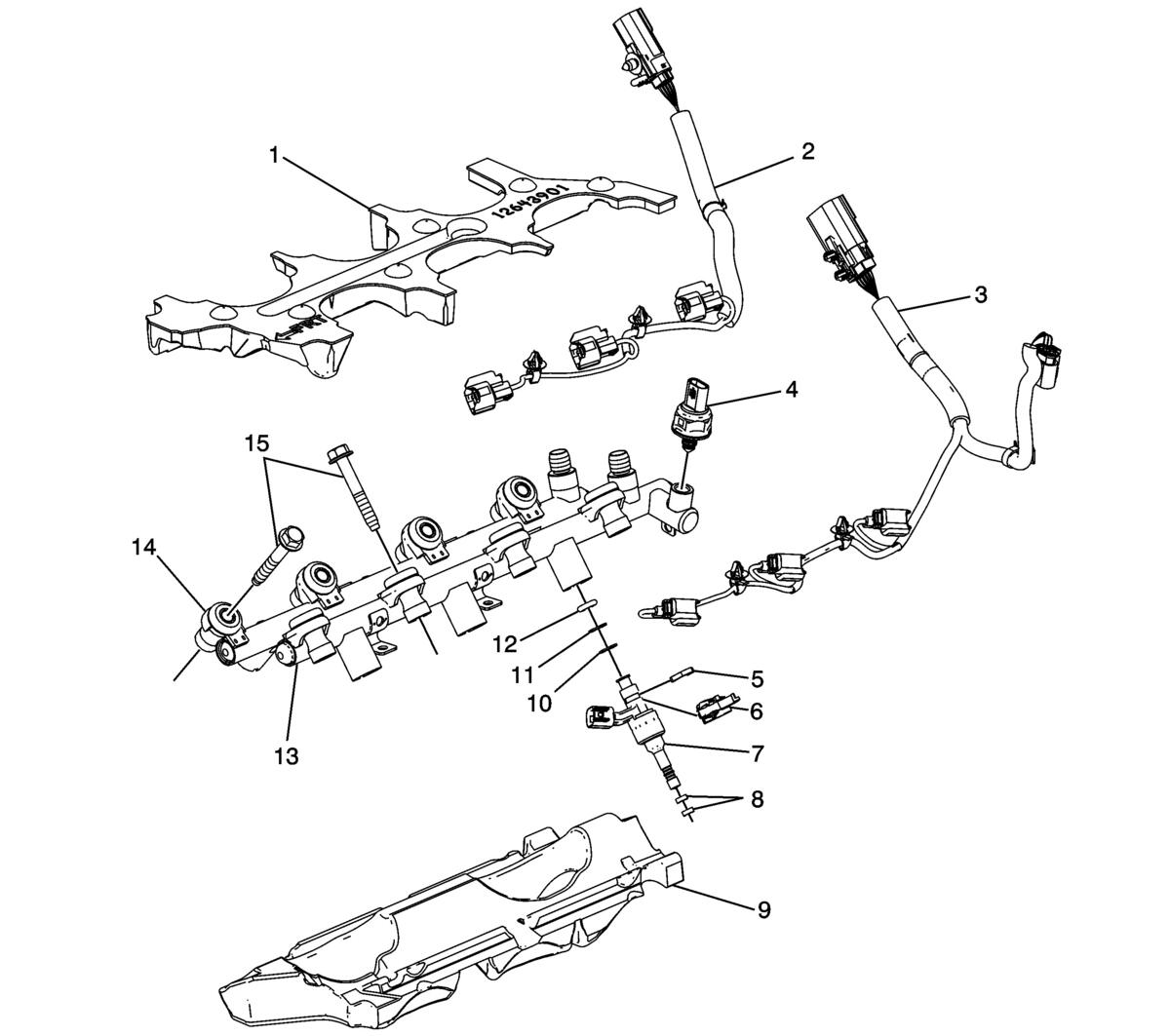

Fuel Rail Assembly
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Upper Fuel Injector Fuel Rail Noise Shield |
| 2 | Left Fuel Rail Wiring Harness |
| 3 | Right Fuel Rail Harness |
| 4 | Fuel Pressure Sensor |
| 5 | Fuel Injector Bushing |
| 6 | Fuel Injector Retainer |
| 7 | Fuel Injector |
| 8 | Fuel Injector Teflon Seal |
| 9 | Lower Fuel Injector Fuel Rail Noise Shield |
| 10 | Fuel Injector Spacer |
| 11 | Fuel Injector Spacer |
| 12 | Fuel Injector O-ring Seal |
| 13 | Left Fuel Rail |
| 14 | Right Fuel Rail |
| 15 | Fuel Rail Bolt |
