Engine Front Cover
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

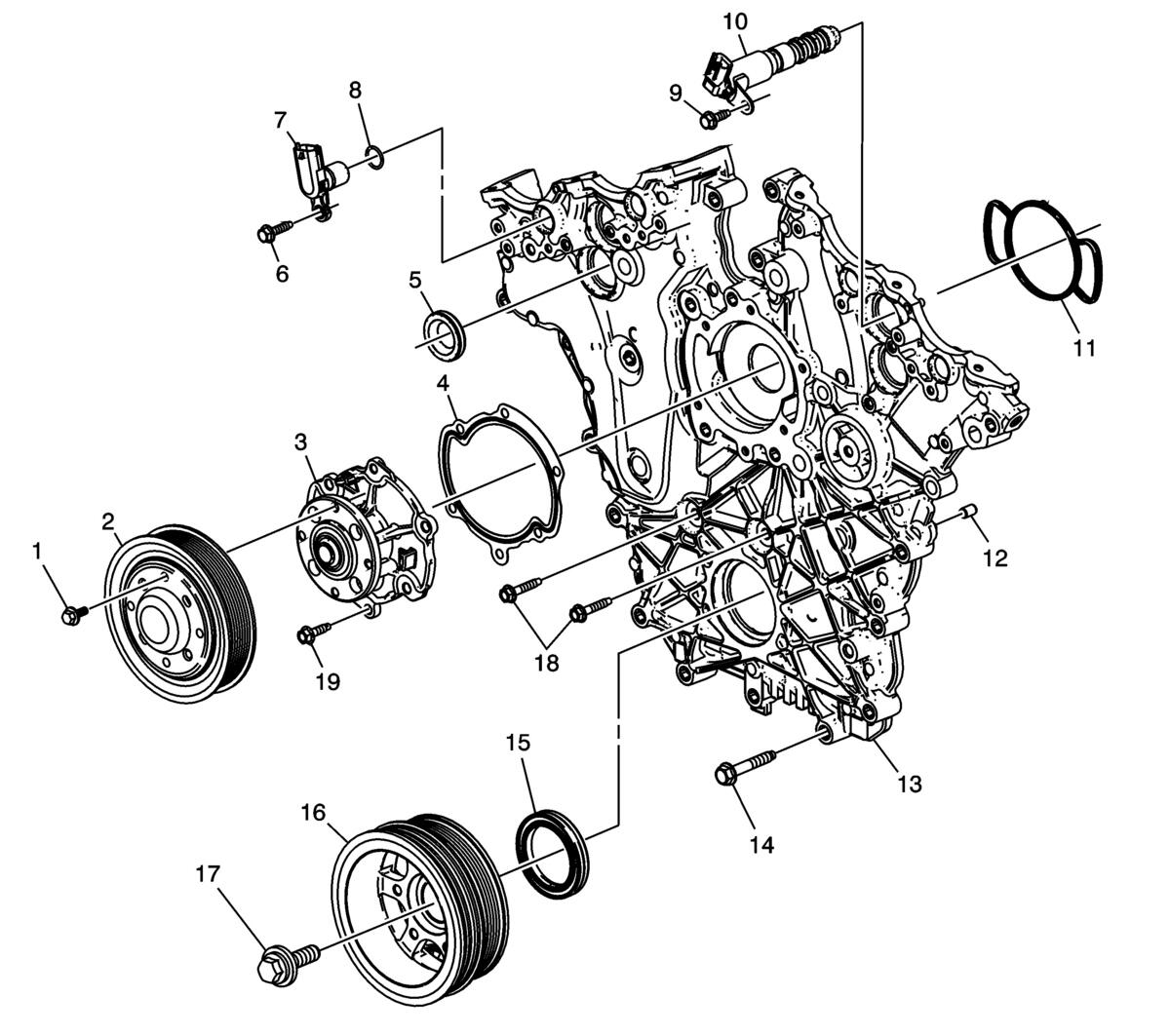

| Callout | Component Name |
|---|---|
| 1 | Water Pump Pulley Bolt |
| 2 | Water Pump Pulley |
| 3 | Water Pump Assembly |
| 4 | Water Pump Pulley Gasket |
| 5 | Camshaft Position Actuator Solenoid Valve Seal |
| 6 | Camshaft Position Sensor Bolt |
| 7 | Camshaft Position Sensor |
| 8 | Camshaft Position Sensor O-ring Seal |
| 9 | Camshaft Position Actuator Solenoid Valve Bolt |
| 10 | Camshaft Position Actuator Solenoid Valve |
| 11 | Engine Front Cover Gasket |
| 12 | Engine Front Cover Locating Pin |
| 13 | Engine Front Cover |
| 14 | Engine Front Cover Bolt |
| 15 | Engine Front Cover Seal |
| 16 | Crankshaft Balancer |
| 17 | Crankshaft Balancer Bolt |
| 18 | Engine Front Cover Bolt |
| 19 | Water Pump Bolt |
