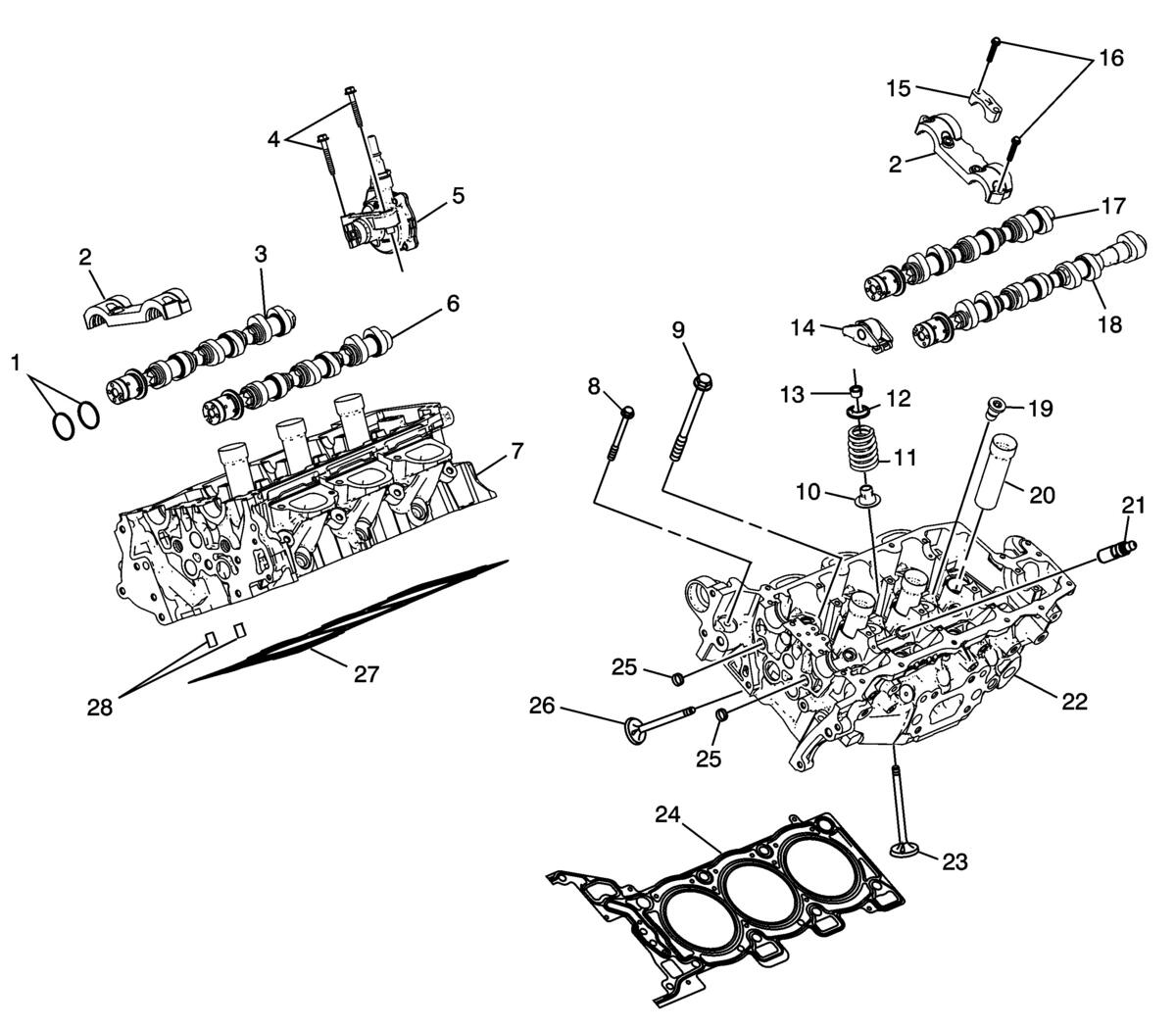

Cylinder Head Assemblies
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Camshaft Oil Seal Ring |
| 2 | Cylinder Head Camshaft Front Thrust Bearing Cap |
| 3 | Right Intake Camshaft |
| 4 | Vacuum Pump Bolts |
| 5 | Vacuum Pump |
| 6 | Right Exhaust Camshaft |
| 7 | Left Cylinder Head |
| 8 | Cylinder Head Front Bolt |
| 9 | Cylinder Head Bolt |
| 10 | Valve Stem Oil Seal |
| 11 | Valve Spring |
| 12 | Valve Spring Cap |
| 13 | Valve Stem Key |
| 14 | Valve Rocker Arm Assembly |
| 15 | Cylinder Head Camshaft Cap - Intermediate |
| 16 | Cylinder Head Camshaft Cap Bolt |
| 17 | Left Intake Camshaft |
| 18 | Left Exhaust Camshaft |
| 19 | Cylinder Head Coolant Hole Threaded Plug |
| 20 | Spark Plug Sleeve |
| 21 | Hydraulic Valve Lash Adjuster Assembly |
| 22 | Right Cylinder Head |
| 23 | Intake Valve |
| 24 | Left Cylinder Head Gasket |
| 25 | Cylinder Head Oil Gallery Expansion Plug - 14 mm |
| 26 | Exhaust Valve |
| 27 | Right Cylinder Head Gasket |
| 28 | Cylinder Head Oil Gallery Check Valve |
