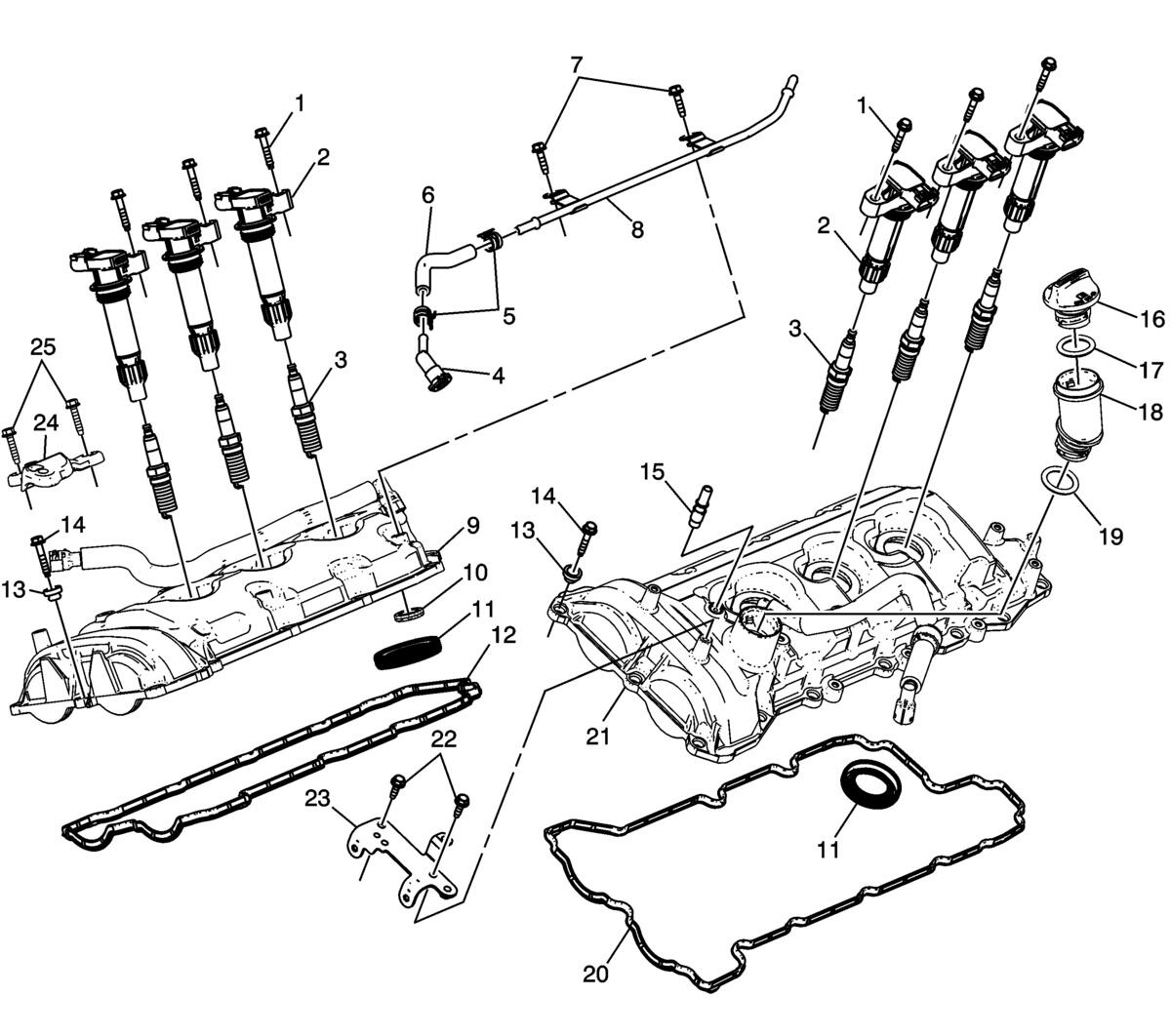

Camshaft Cover and Components
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Ignition Coil Bolt |
| 2 | Ignition Coil |
| 3 | Spark Plug |
| 4 | Engine Coolant Air Bleed Pipe Fitting |
| 5 | Engine Coolant Air Bleed Pipe Hose Clamps |
| 6 | Engine Coolant Air Bleed Pipe Hose |
| 7 | Engine Coolant Air Bleed Pipe Bolts |
| 8 | Engine Coolant Air Bleed Pipe |
| 9 | Right Camshaft Cover |
| 10 | Vacuum Pump Seal |
| 11 | Spark Plug Wire Boot Seal |
| 12 | Right Camshaft Cover Seal |
| 13 | Camshaft Cover Bolt Insulator |
| 14 | Camshaft Cover Bolt |
| 15 | PCV Hose Fitting |
| 16 | Oil Fill Cap |
| 17 | Oil Fill Cap Seal |
| 18 | Oil Fill Tube |
| 19 | Oil Fill Tube Seal |
| 20 | Left Camshaft Cover Seal |
| 21 | Left Camshaft Cover |
| 22 | Engine Wiring Harness Bracket |
| 23 | Engine Wiring Harness Bracket Bolts |
| 24 | Upper Intake Manifold Bracket |
| 25 | Upper Intake Manifold Bracket Bolts |
