Outside Rearview Mirror Wiring Schematics (Coupe without A45)
>>
Dimming (DR4) and Heating (Coupe without A45)
Dimming (DR4) and Heating (Coupe without A45)
WARNING:
This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

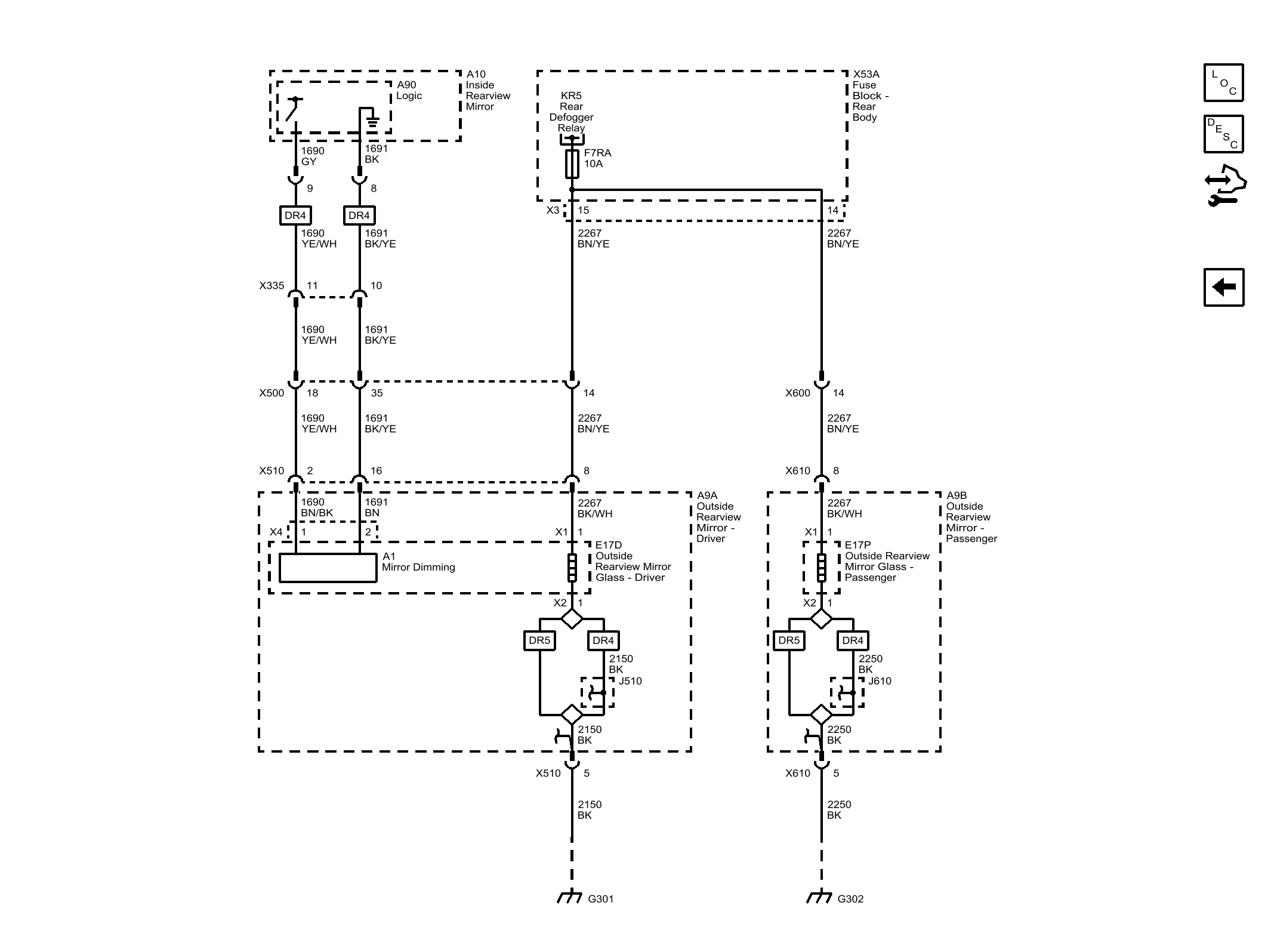

Fig 1: Dimming (DR4) and Heating (Coupe without A45)
Courtesy of GENERAL MOTORS COMPANY
