Brake and Tail Lamp Assembly Lights (TVN)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

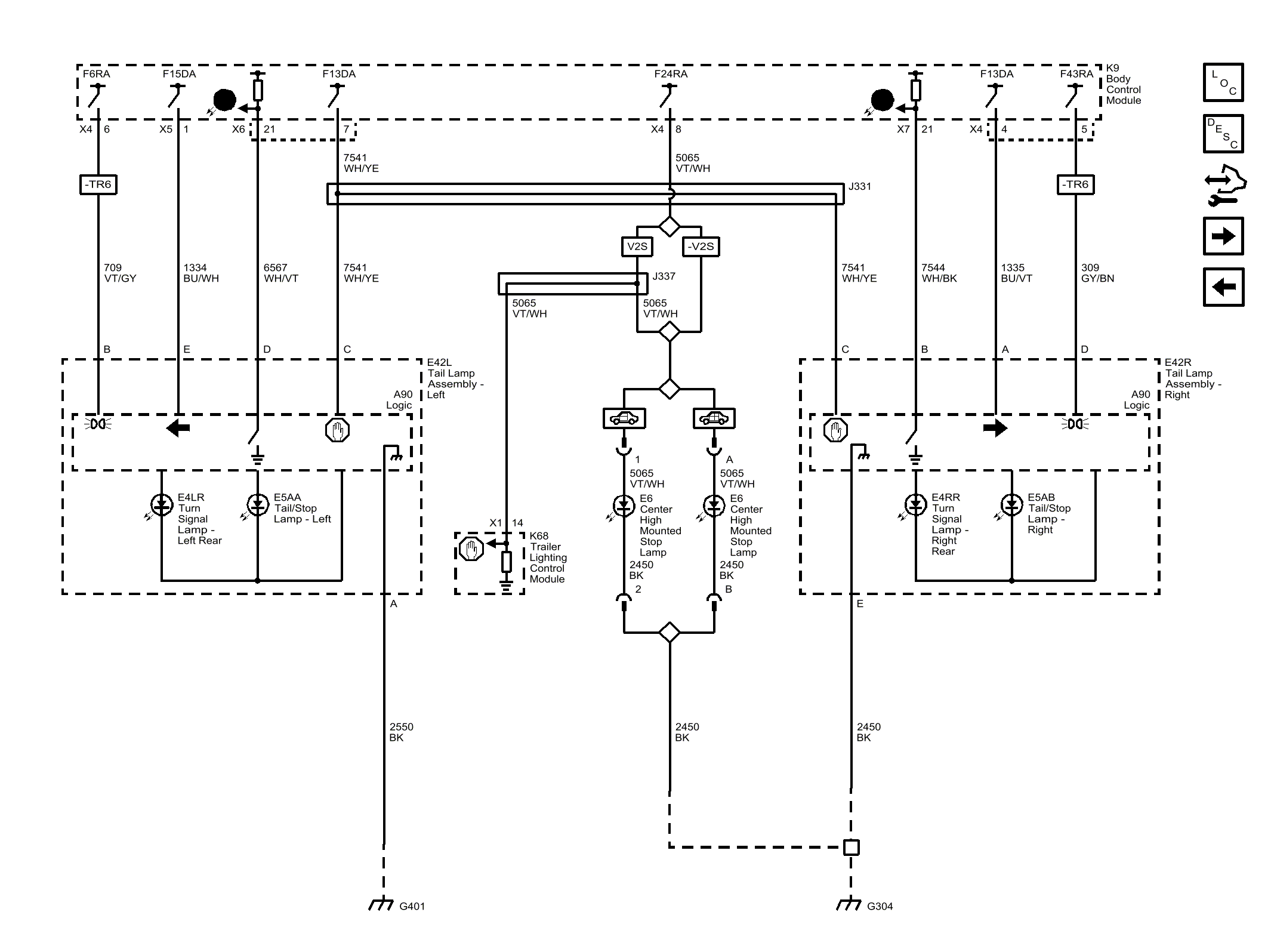

Fig 1: Brake and Tail Lamp Assembly Lights (TVN)
GM4050522Courtesy of GENERAL MOTORS COMPANY
