Seat Position, Lumbar and Bolster (Coupe with AQ9 and AE8)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

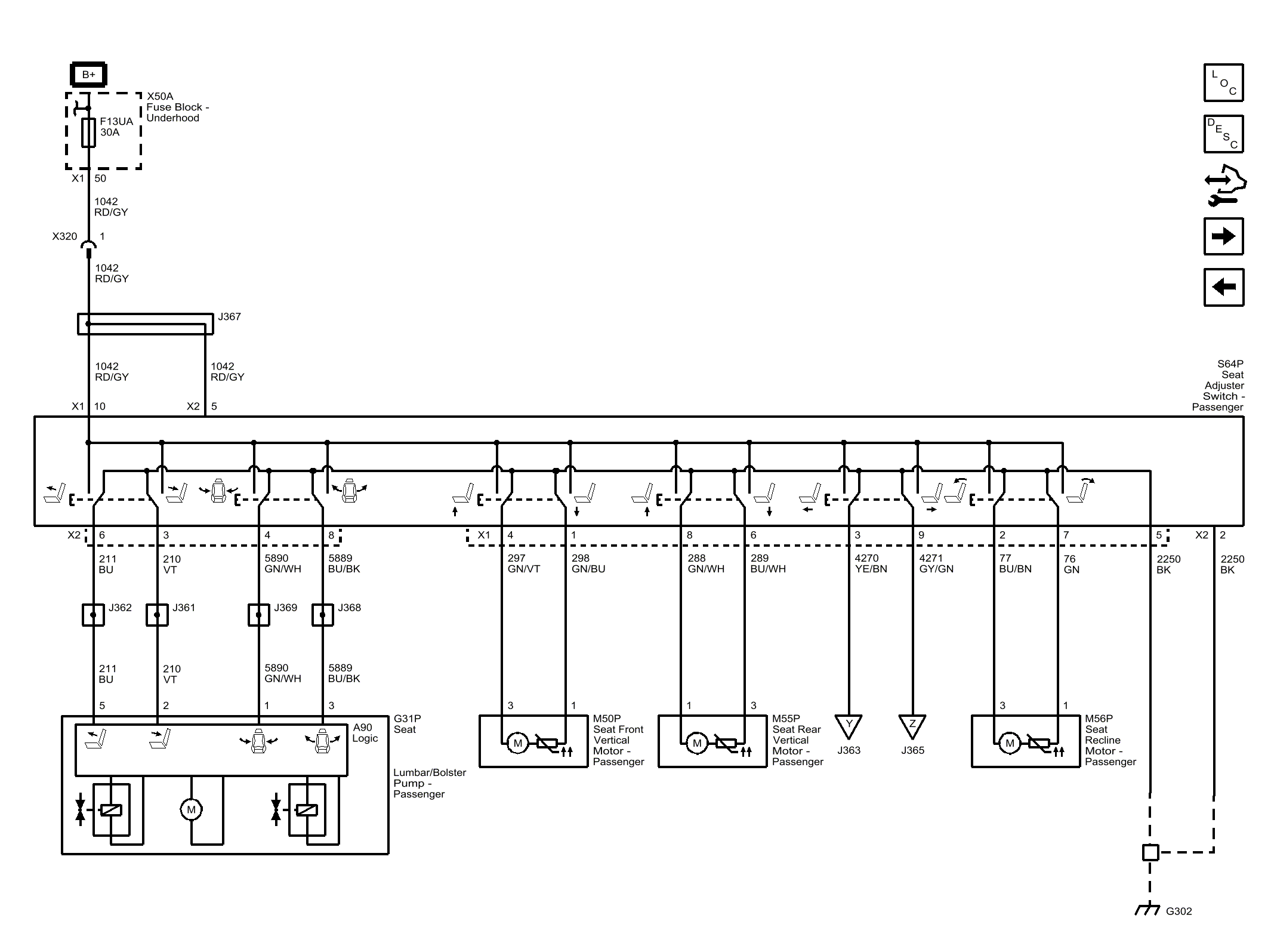

Fig 1: Seat Position, Lumbar and Bolster (Coupe with AQ9 and AE8)
GM4055009Courtesy of GENERAL MOTORS COMPANY
